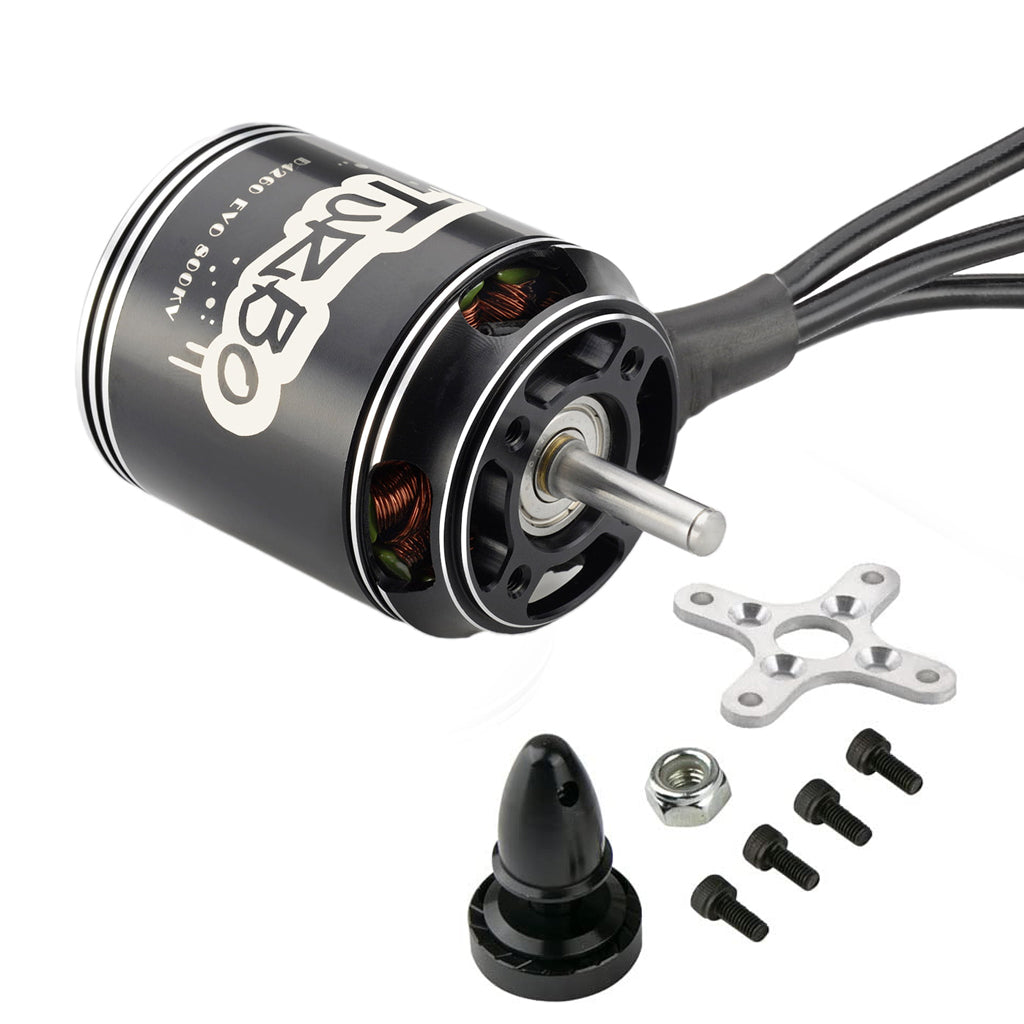

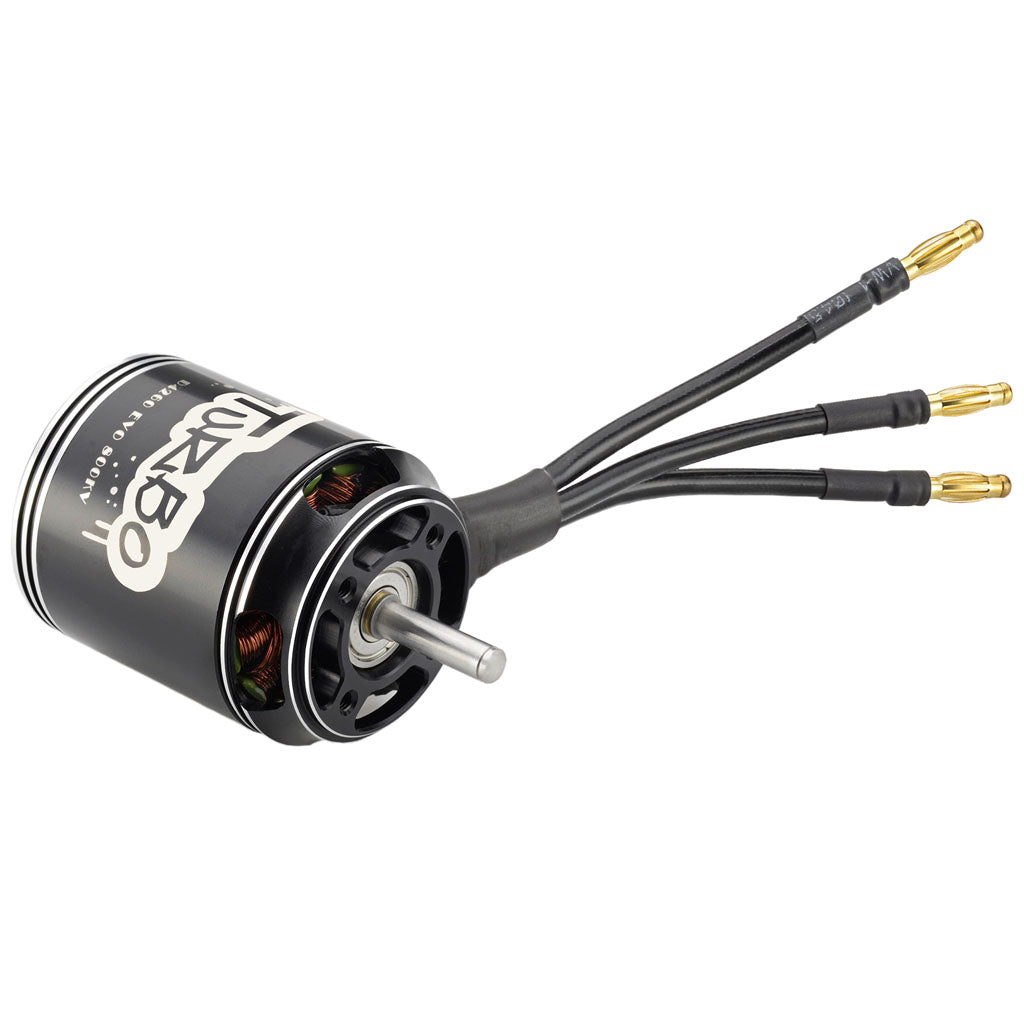

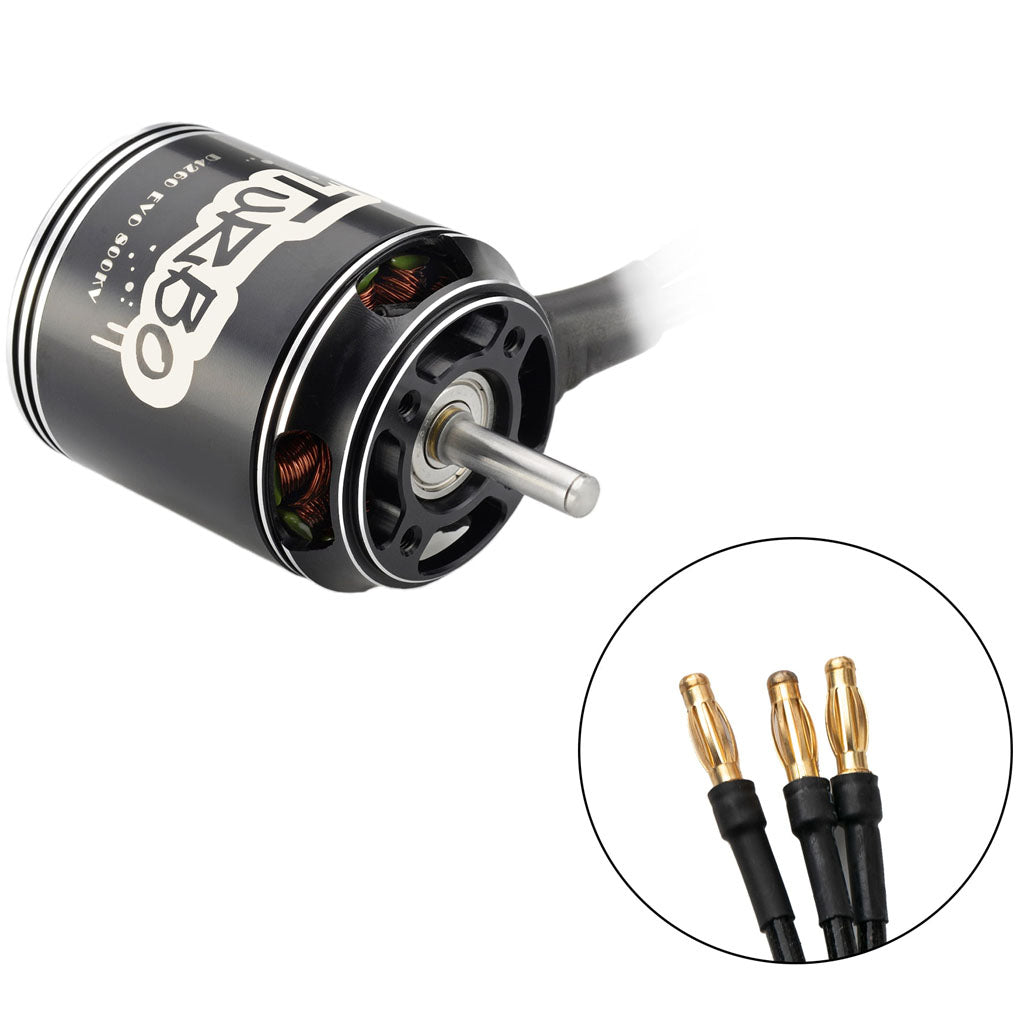

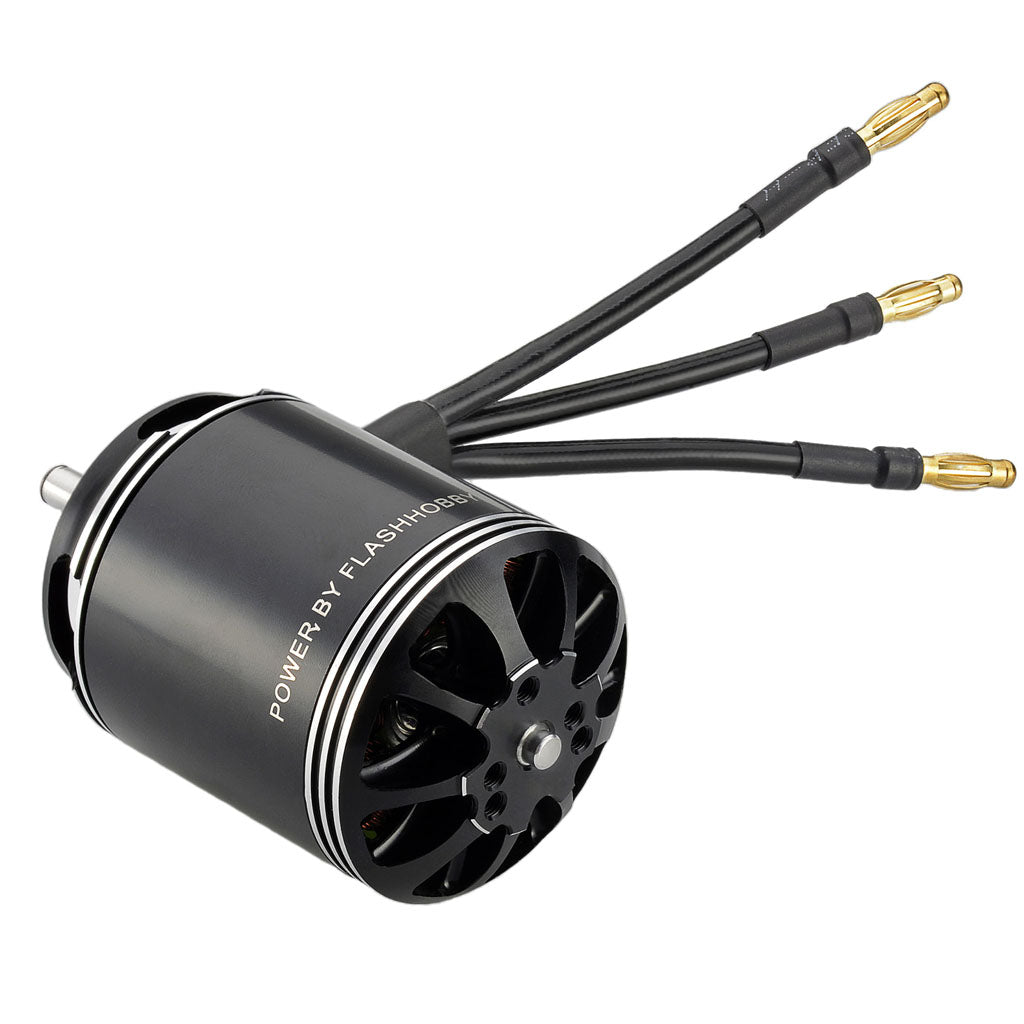

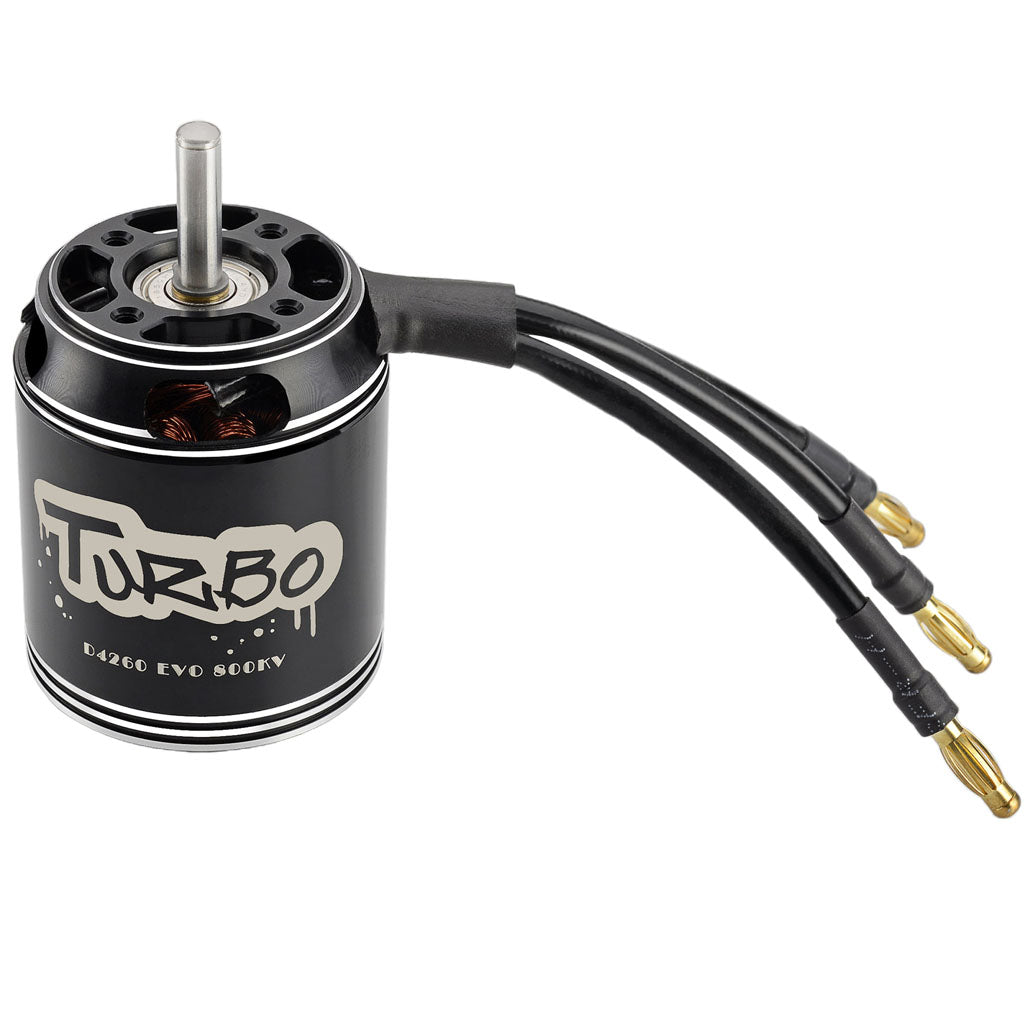

FLASHHOBBY D4260EVO 4260 600KV 800KV RC Brushless Motor

FLASHHOBBY D4260EVO 4260 600KV 800KV RC Brushless Motor

Check out the rest of FlashHobby Motors.

D4260 EVO RC Brushless Motor Application

D4260 EVO RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm

D4260 EVO RC Brushless Motor Features:

48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding

D4260 EVO RC Brushless Motor Specification

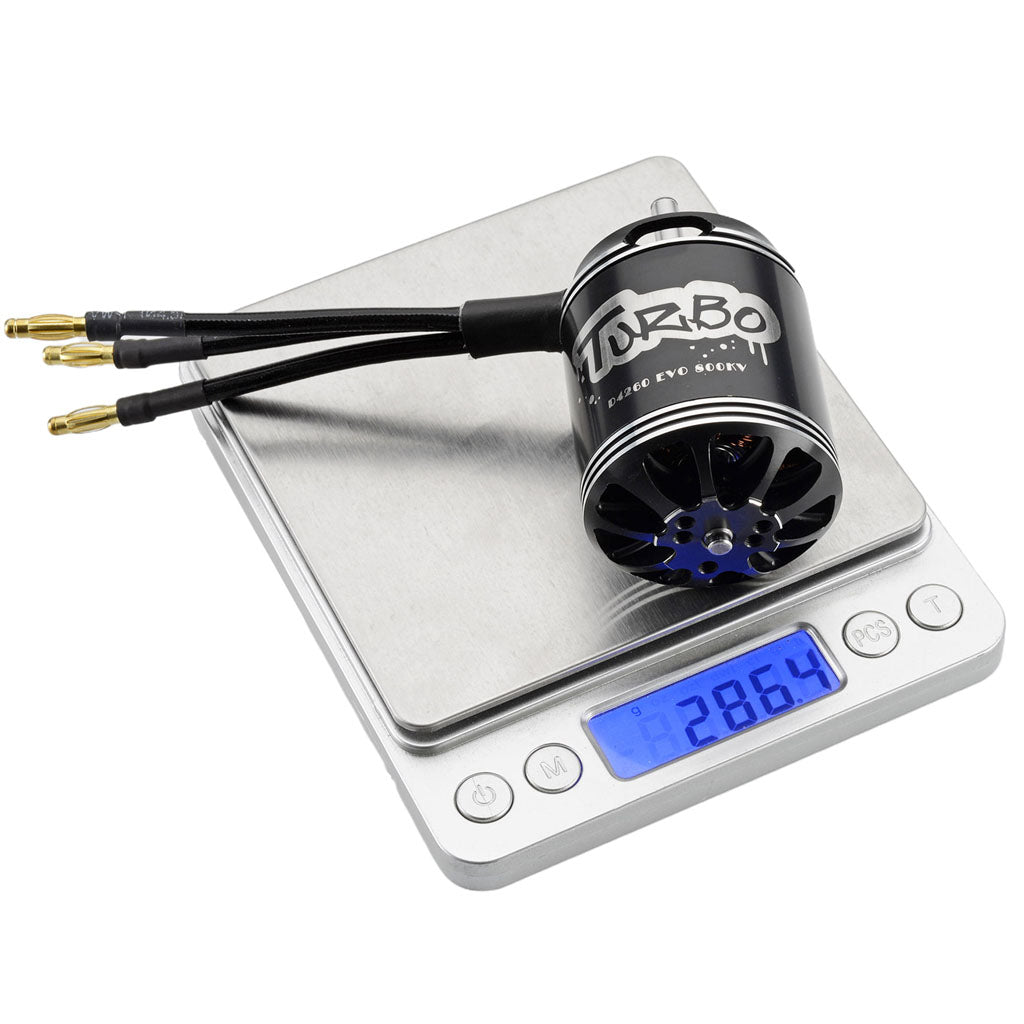

Weight: 286g(Including wires)
Motor Size: 42.8 x60mm
Shaft Size: 5.0*78.0mm
Stator Diameter: 35mm
Stator Height: 30mm
Motor Mount: 25*25mm(M3*4)
Configuration: 12N14P

KV Value for Selection:

KV Value: 600KV, 800KV or customed KV

KV: 600KV
Max watts: 1272.7W
Max Current: 59.92A
No Load current: 1.44A/10V
Resistance: 34.0mΩ
Battery: 5-6S Lipo
Suggested Prop: 14 inch prop

KV: 800KV
Max watts: 1354.0W
Max Current: 64.39A
No Load current: 2.45A/10V
Resistance: 21.2mΩ
Battery: 5-6S Lipo
Suggested Prop: 12 inch prop

D4260 EVO Motor Drawing:
