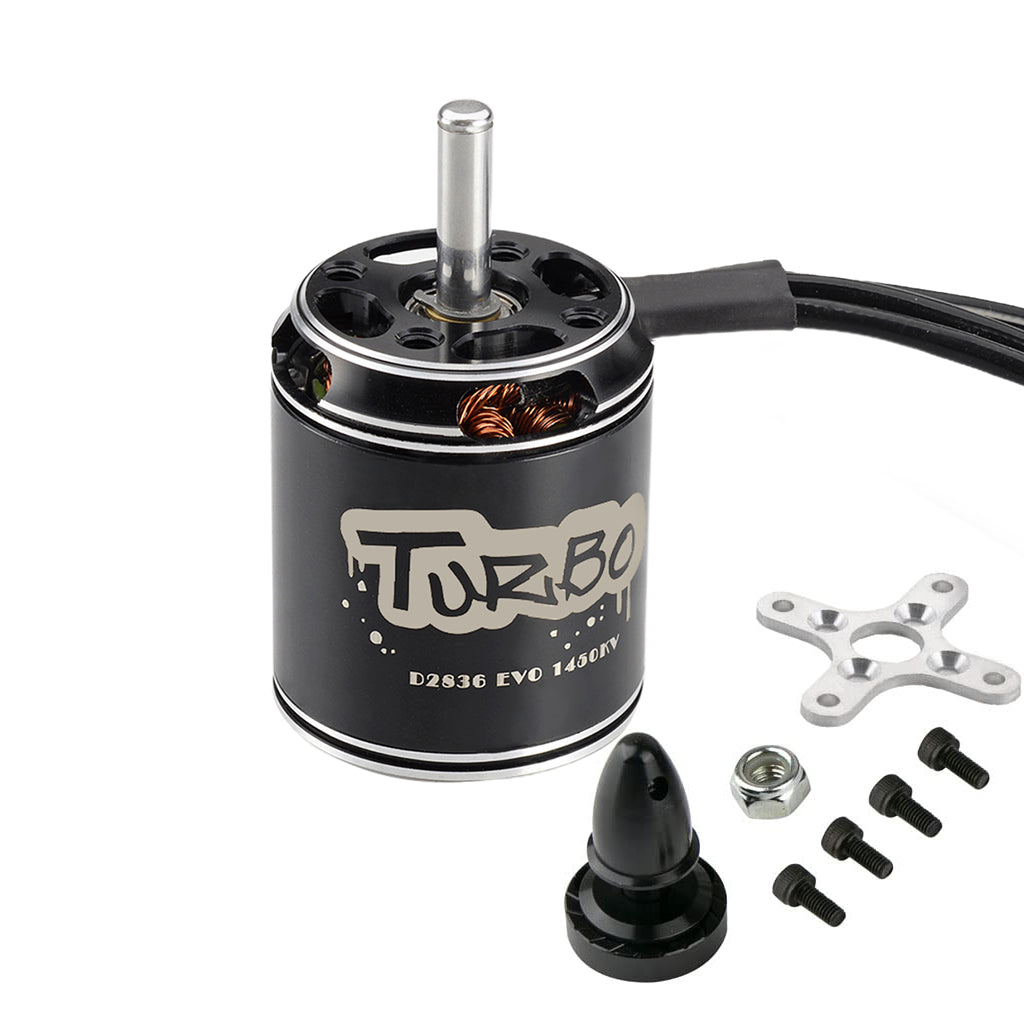

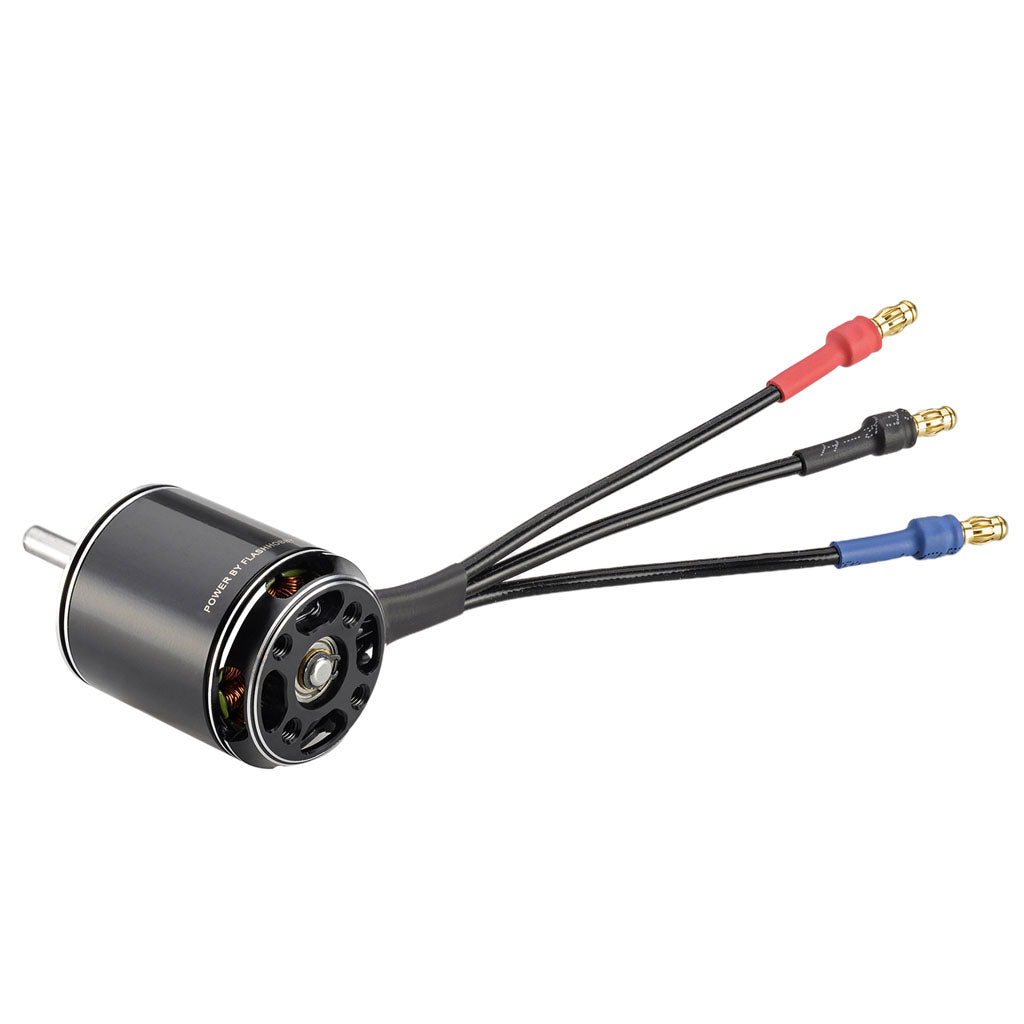

FLASHHOBBY D2836EVO 2836 RC Brushless Motor

FLASHHOBBY D2836EVO 2836 RC Brushless Motor

Check out the rest of FlashHobby Motors.

D2836 RC Brushless Motor Application

D2836EVO（2217） RC Brushless Motor for UAV Aircraft, Multicopters, RC Plane, Helicopter, Cradle Coffee Machine Milk Tea Machine Electric Drilling Machine Mowing Machine Robotic Arm,Crawler

D2836 RC Brushless Motor Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding

RC Brushless Motor Specification

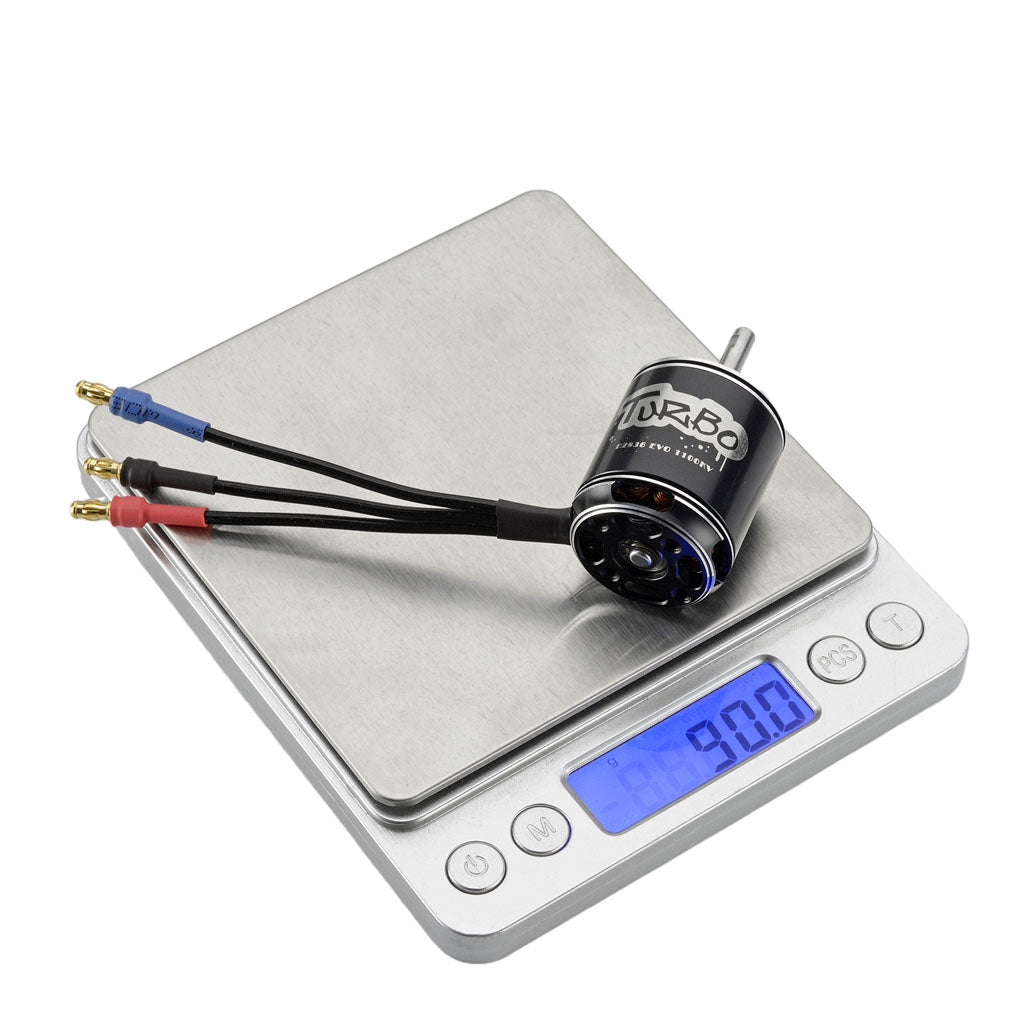

Weight: 88.6g(Including wires)
Motor Size: 28 x36mm
Shaft Size: 4.0*51.0mm
Stator Diameter: 22mm
Stator Height: 17mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P

KV value for Selection

KV Value: 750KV, 850KV,1100KV,1450KV or customed KV

KV: 750KV
Max watts: 194.9W
Max Current: 11.95A
No Load current: 0.74A
Resistance: 124mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

KV: 850KV
Max watts: 244.5W
Max Current: 15.11A
No Load current: 0.92A
Resistance: 97.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop

KV: 1100KV
Max watts: 462.7W
Max Current: 30.3A
No Load current: 1.37A
Resistance: 57.9mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

KV: 1450KV
Max watts: 739.6W
Max Current: 48.69A
No Load current: 2.24A
Resistance: 33.5mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

D2836 EVO Motor Drawing
