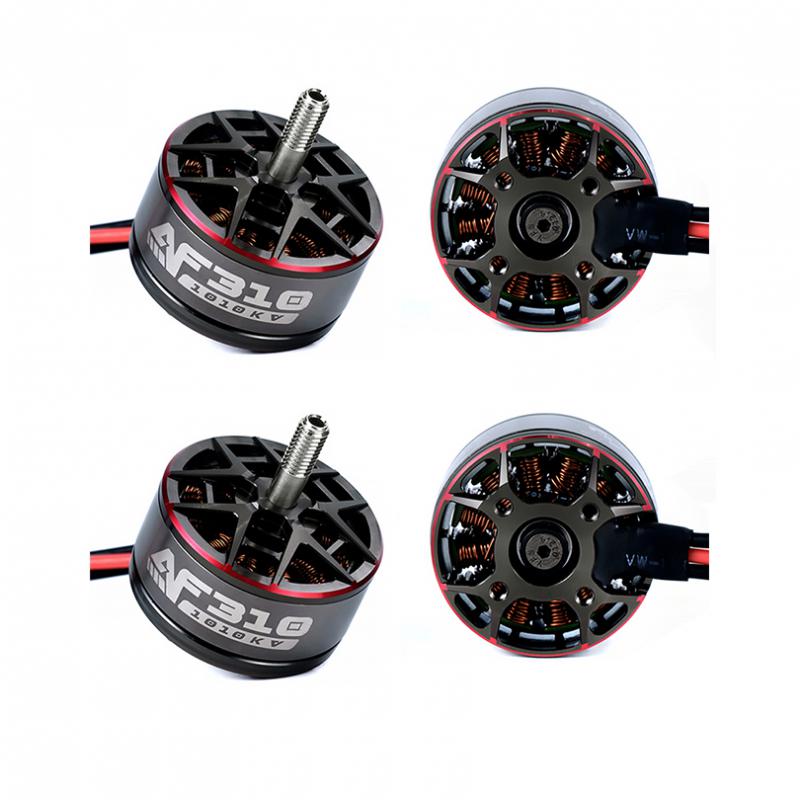

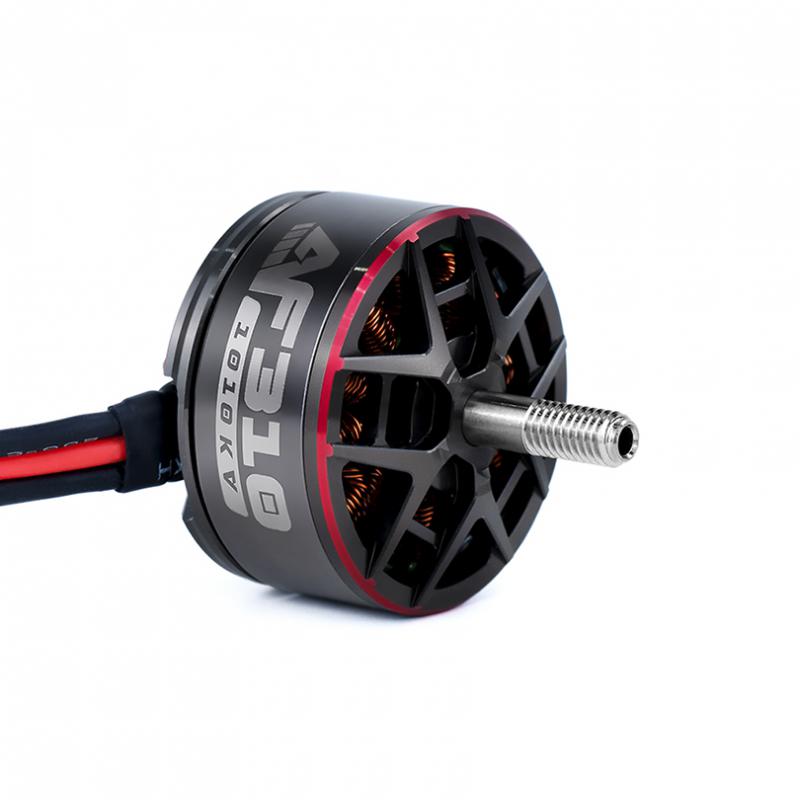

AXISFLYING AF310 3010 6S Brushless Motor

Forword

- AF series motor are axisflying highest quality line with Premium performance, the highest standard.

       - AF310 motor designs for X8 cinelifter to take off heavy payload.  It has more torque , power and efficiency than 2810 motor.

       - High Torque output : The thrust you want, comes on right away.

 - High Power: Easily does all kinds of fpv freestyle movements

 - High Efficiency: 30% flight time increased compared to 28XX size

Bearing Shield Technology

- An IP53 rating dustproof and waterproof bearing placement design.

- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

- Increased thrust effciency and say goodbye to crush motor bearings

Specs

- 1010KV is mian for 8inch, 9inch @6S

- 1210KV is mian for 7inch @6S

- Configuration: 12N14P / N52H arc magnet

- Motor stator size: 3010

- Motor mounting hole size: 4*M3 (Φ19mm)

- Motor cables: AWG 18#, 350MM

- Motor dimensions (Dia *Len): Φ36.4*41.6MM  / M5 shaft

- Motor weight (excluding 150MM cables) : 72g

- The motor is very powerful that can get over 3KG and most current is about 60A
