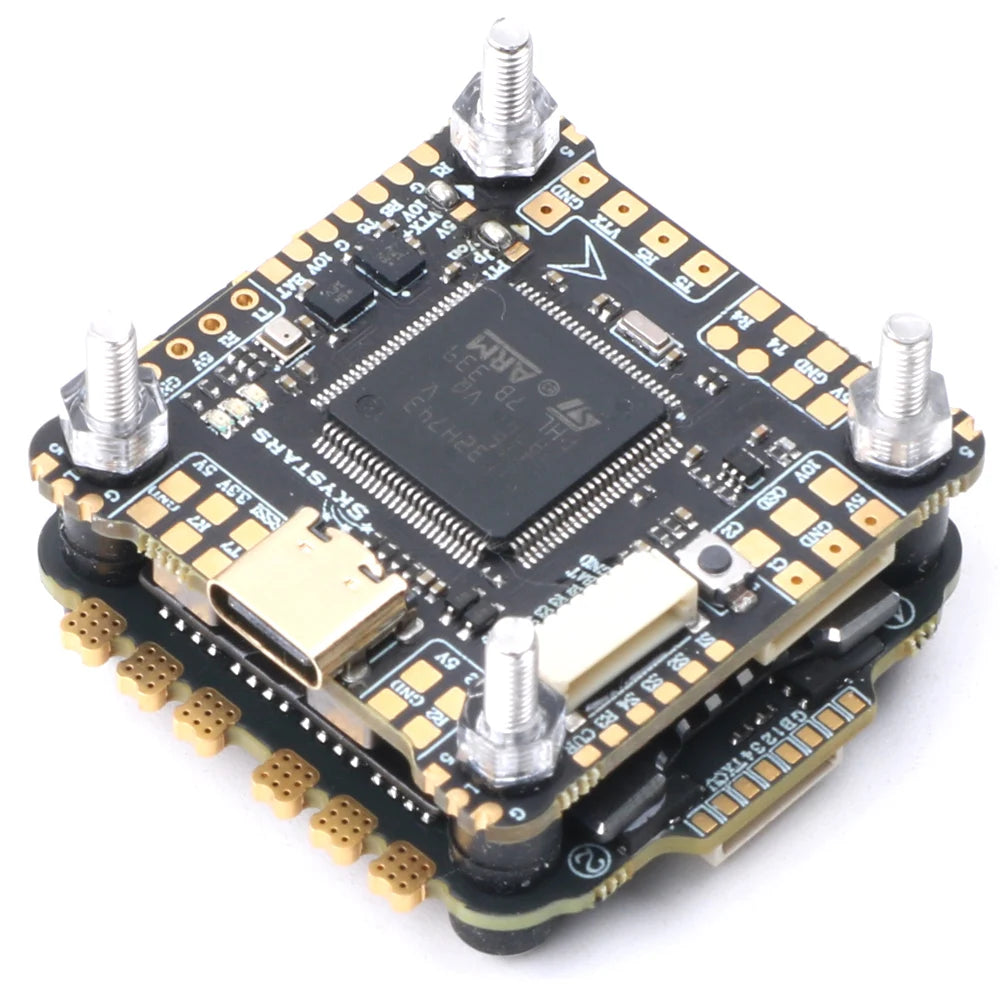

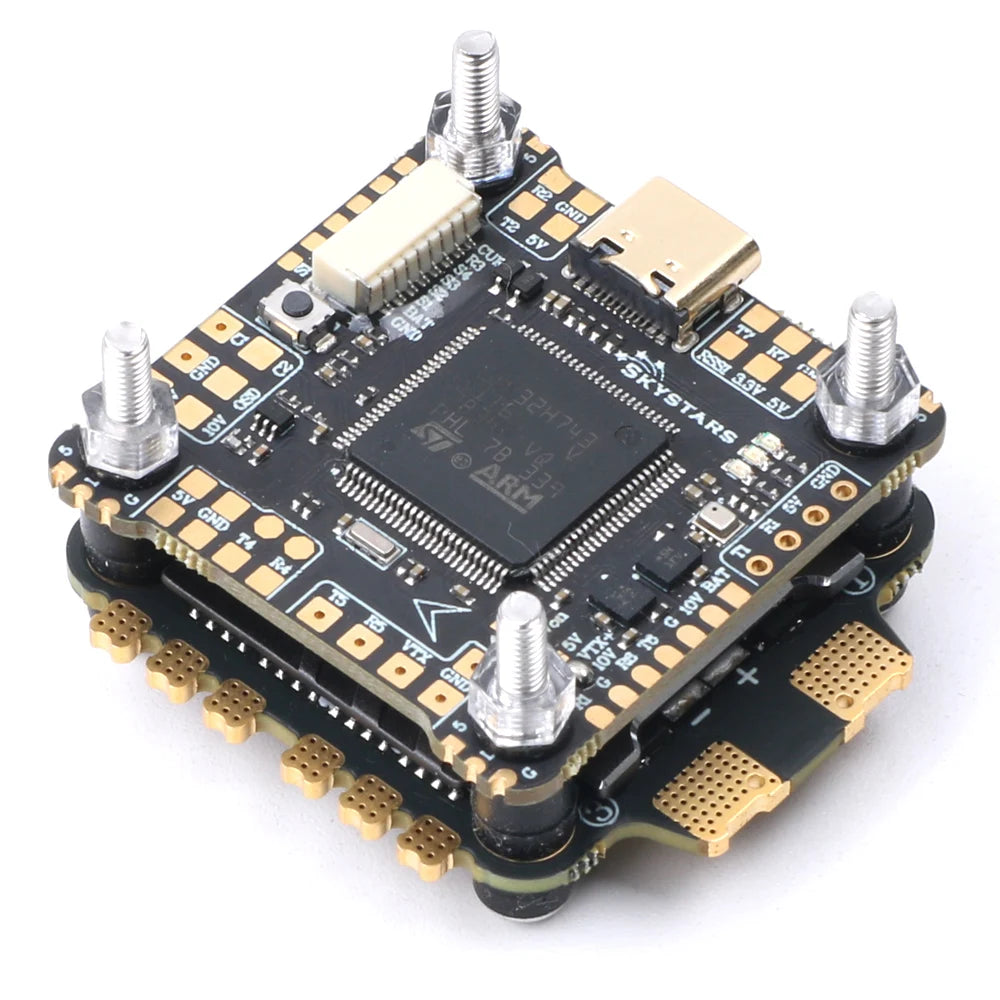

SKYSTARS H743 Dual Gyro and KM60 Fly Stack

Description

SKYSTARS H743 HD Flight Controller H7 X8 With OSD & KM60 60A AM32 4IN1 ESC

FC Specifications

MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash

Gyro: BMI270 DUAL

Baro: BMP280

OSD: AT7456E

Blackbox: 16M

8x Uarts (1,2,3,4,6,7,8) with built-in inversion.

8x PWM outputs

1x I2C

3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

USB Type-C(USB2.0)

2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)

1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)

Dual Camera Inputs switch

VTX 10V/Vbat filtered power ON/OFF switch

DJI FPV OSD is supported by any spare UART

Power

Vbat Input: 7~25V (2~6S LiPo)

BEC: 5V 2A cont. (Max.3A)

LDO 3.3V: Max.250mA

FC Firmware

BetaFlight: SKYSTARSH7HD

Ardupilot : SKYSTARSH7HD

Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

Dimensions: 39.5 x 39.5 x 7.8 mm

Weight: 10.1g

KM60 AM32-60A 4IN1 3-6S ESC DShot1200 4-in-1 ESC

Support Dshot1200, Dshot600, Dshot300, PWM control signal

Power supply voltage: 3-6S (12-26V)

Continuous working current: 60A

No built-in 5V BEC output

Firmware: AM32 ESC

Screw hole spacing: 30.5*30.5MM

Aperture: 4MM

Weight: 14.6g
