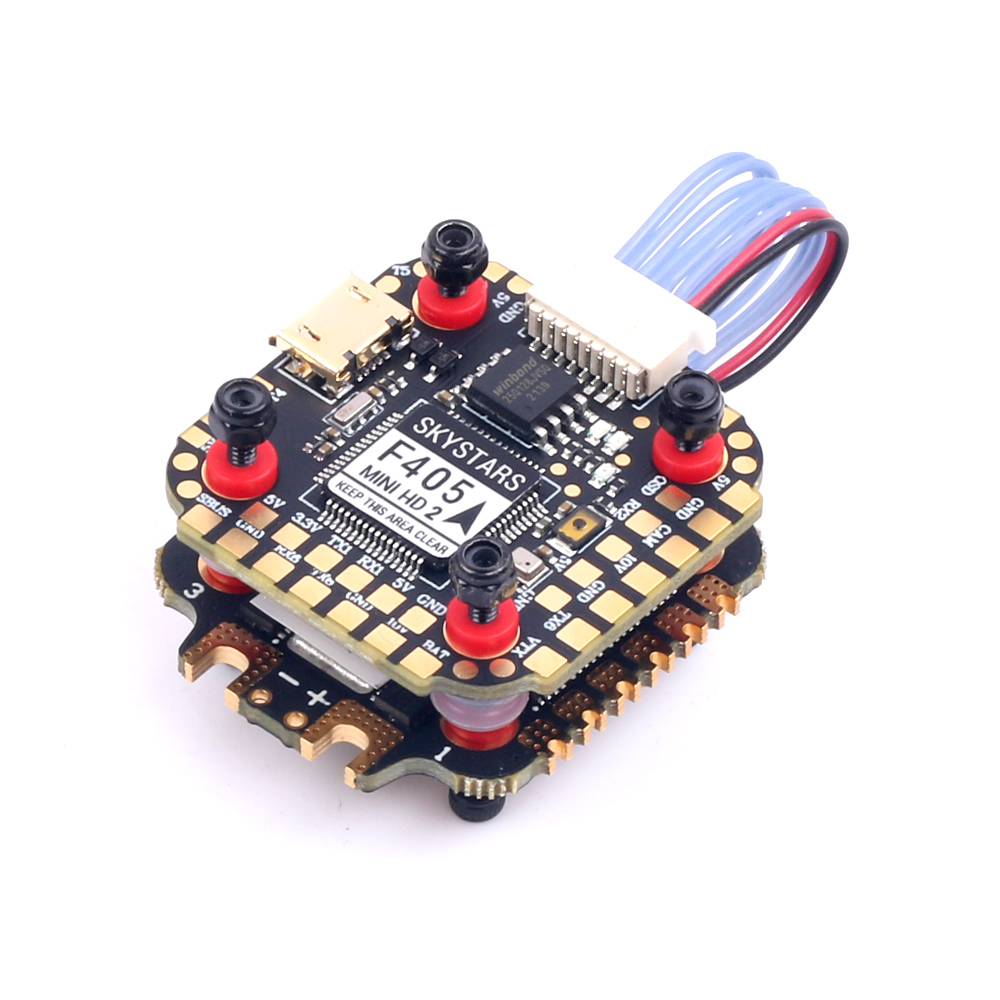

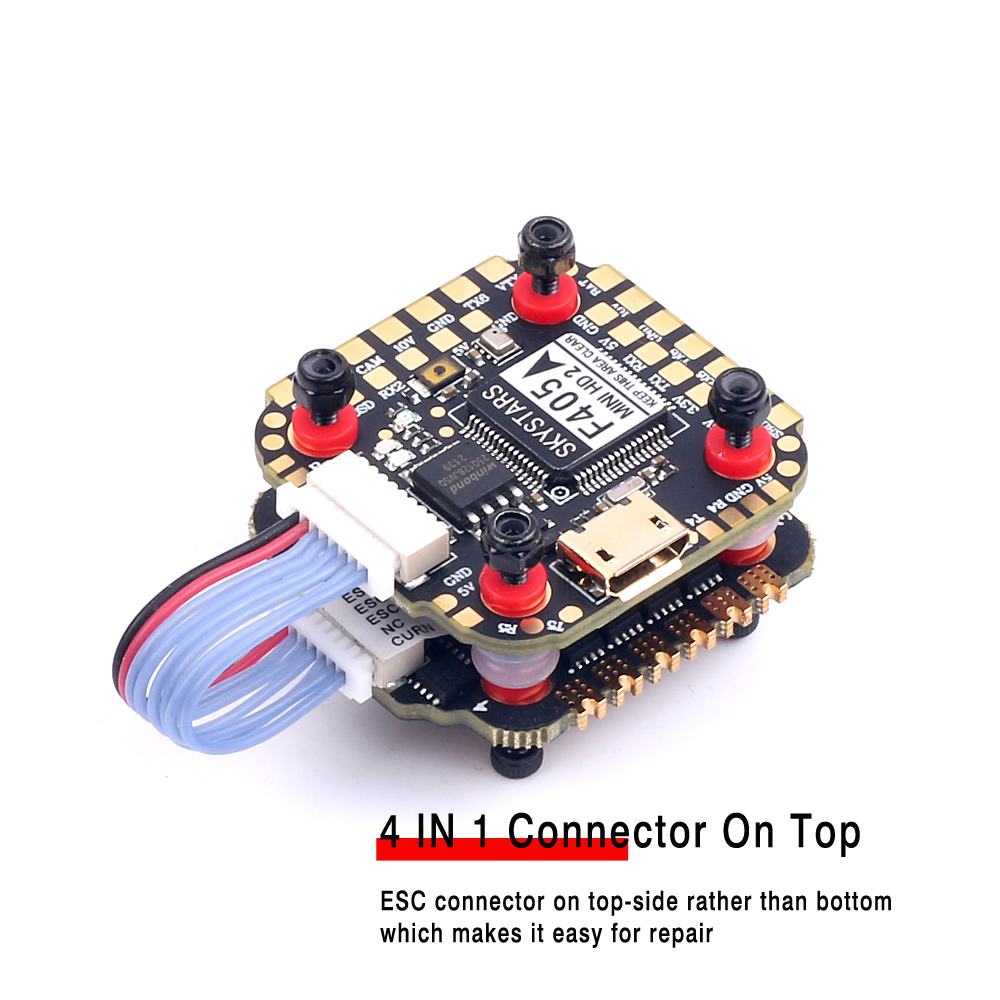

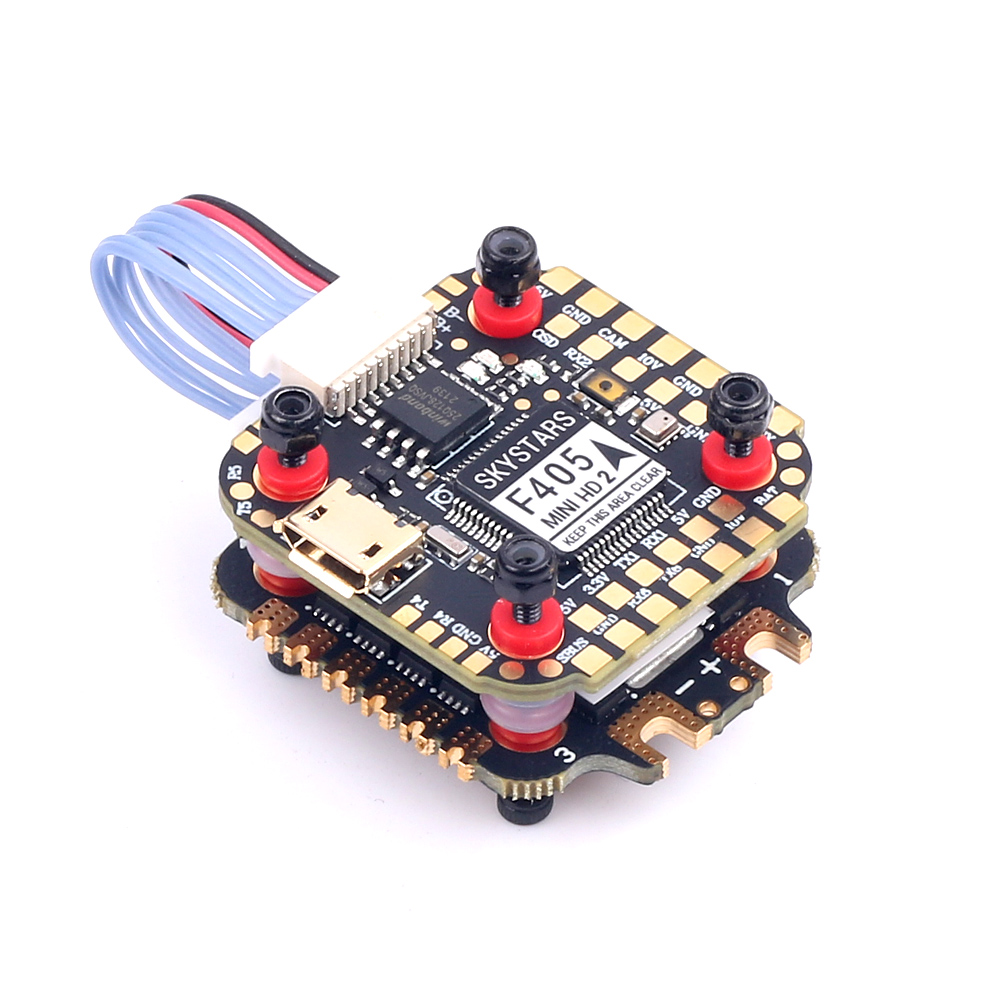

Skystars F405 Mini HD2 Flight Controller and KM35 35A 3-6S ESC Stack

Skystars F405 Mini HD2 Flight Controller and KM35 35A 3-6S ESC Stack

Regular price $45.00
Regular price Sale price $45.00
Sale Sold out
Shipping calculated at checkout.
color
Quantity

Specifications:

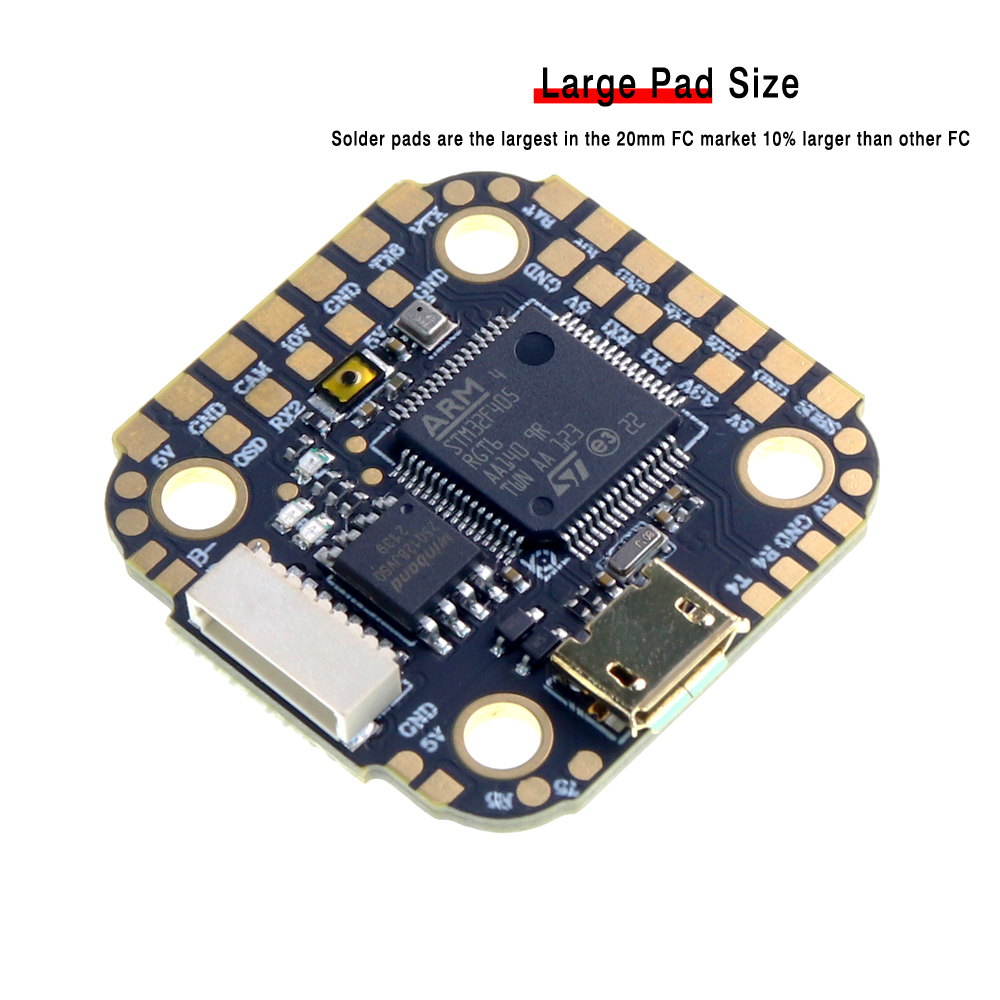

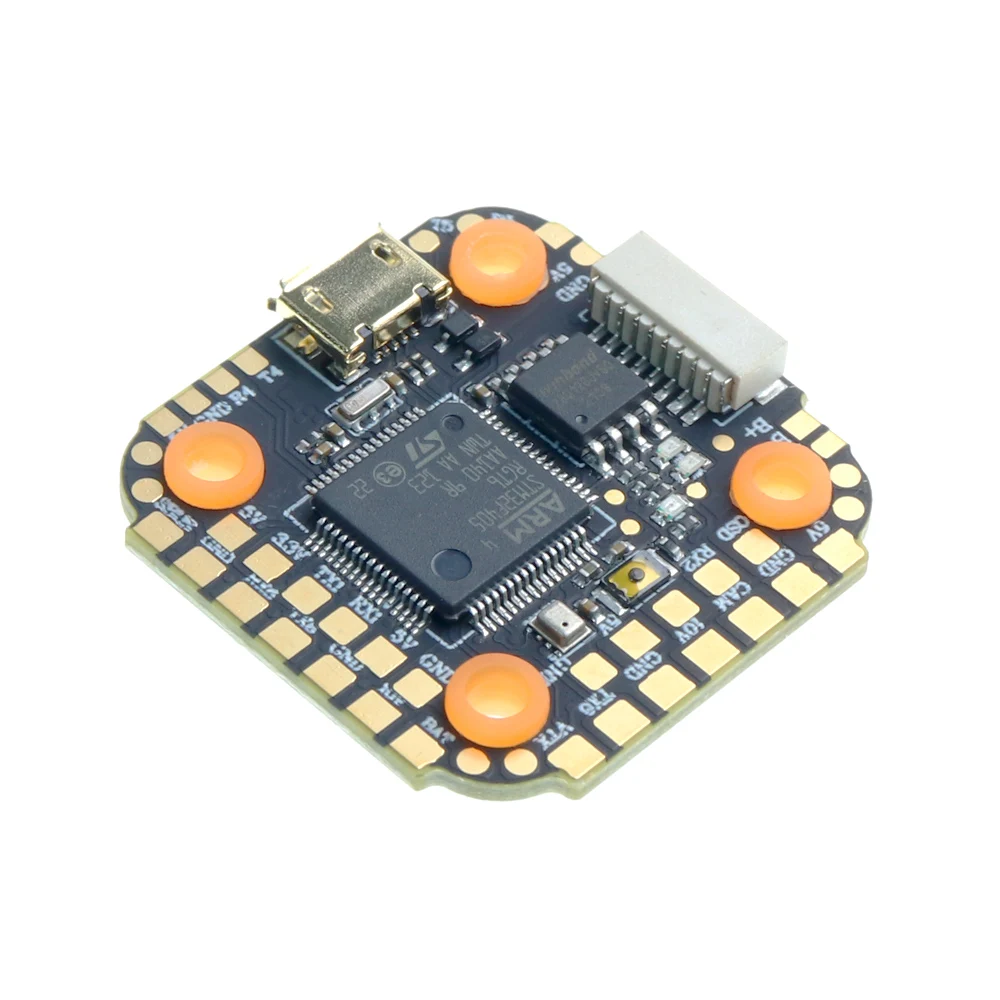

Item name: F405Mini HD2 Betaflight Flight Controller
Input voltage: 3-6S LiPo(11.1V~22.2V)
MCU:STM32F405RGT6 168MHz
IMU: icm42688 or BMI270 (SPI)

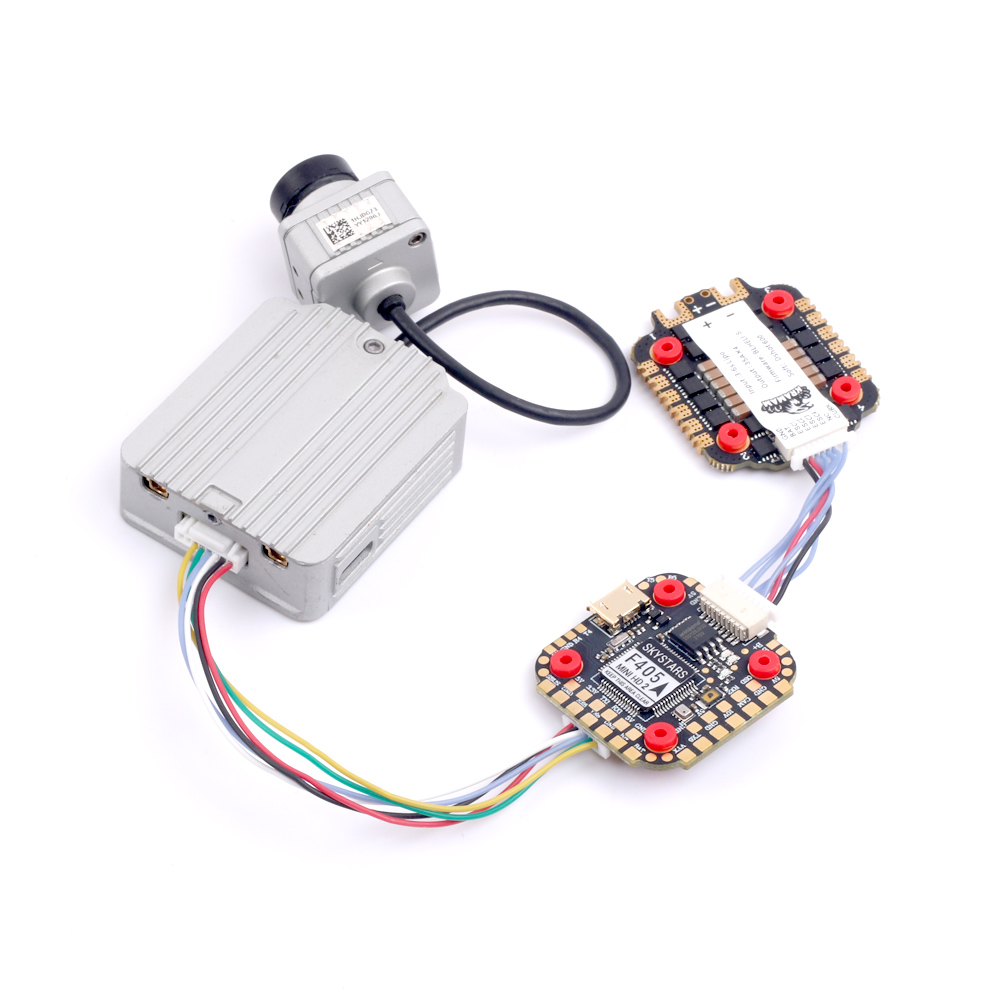

OSD: Betaflight OSD &DJI HD OSD (UART6)
6 hardware UARTS (UART1,2,3,4,5,6,)
Receiver:TBS/PPM/SBUS/IBUS/DSM
Barometer: YES
Buzzer Pad: YES
CURR Pad: YES
BEC 5V 2A & 10V 2A(Max 3A)
Blackbox: 16MB
Firmware: Betaflight /INAV SKYSTARS F405HD

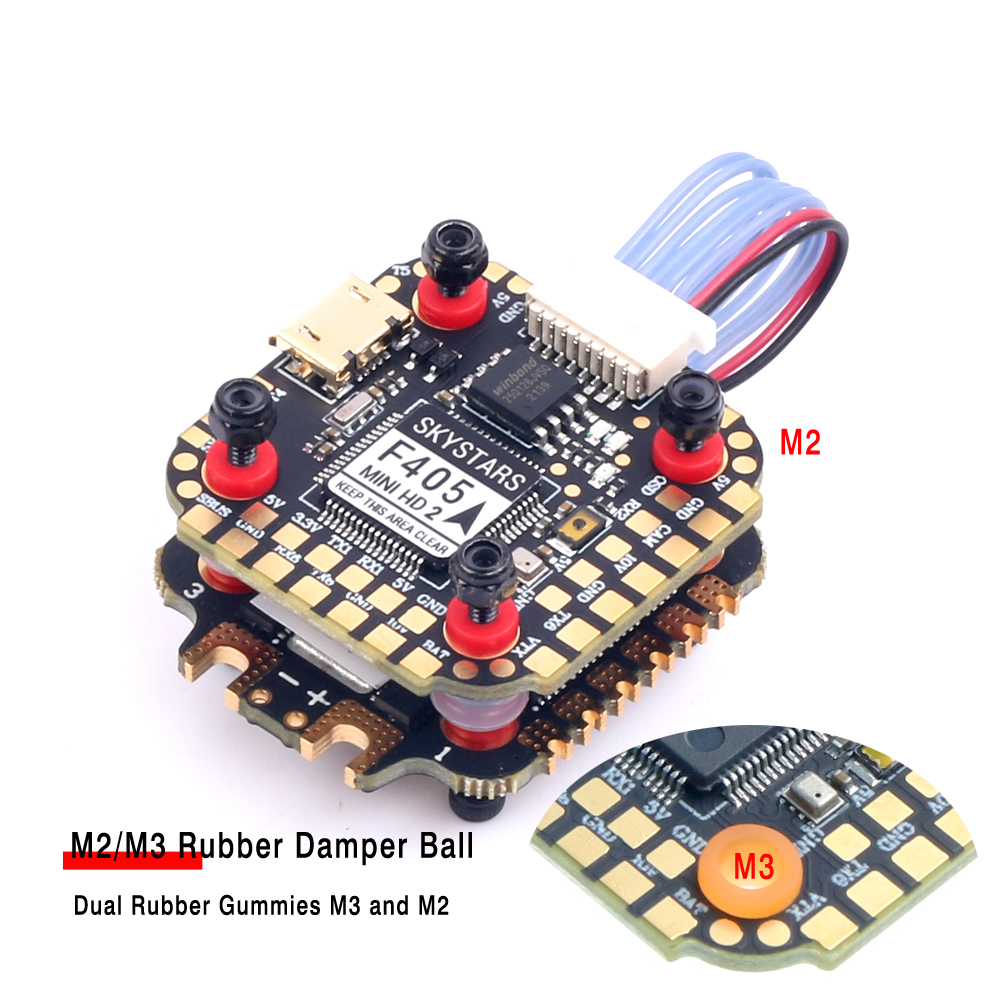

Mounting Holes: 20mm/M2 or M3
Weight: 4.8g

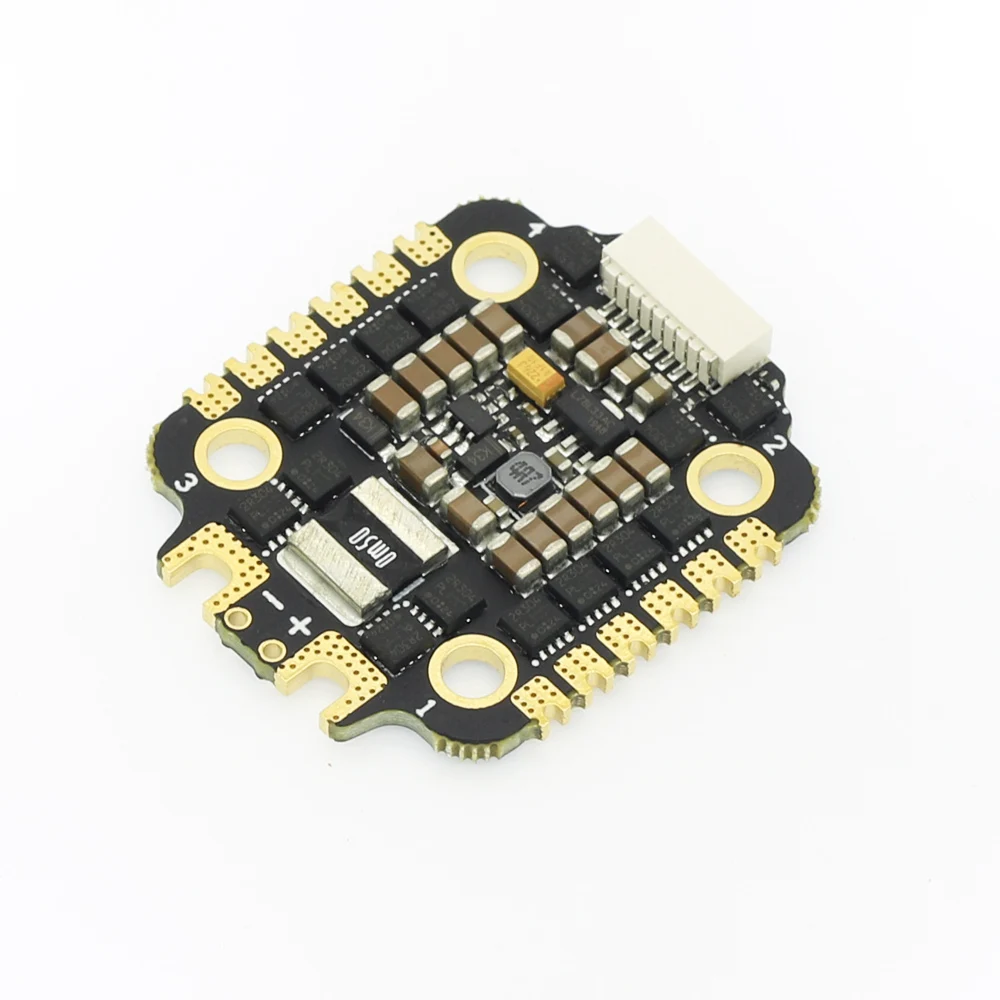

Item name: KM35 35A 4IN1 ESC
Input voltage: 3-6S LiPo
Con.Current: 35A
Peak Current:45A≥ 10S
Firmware: BLHeli_S
Support : Dshot 300/600
Mounting holes : 20X20 mm/M3
BEC: No
Product size: 31*36*3.9mm
Weight: 7.8g
