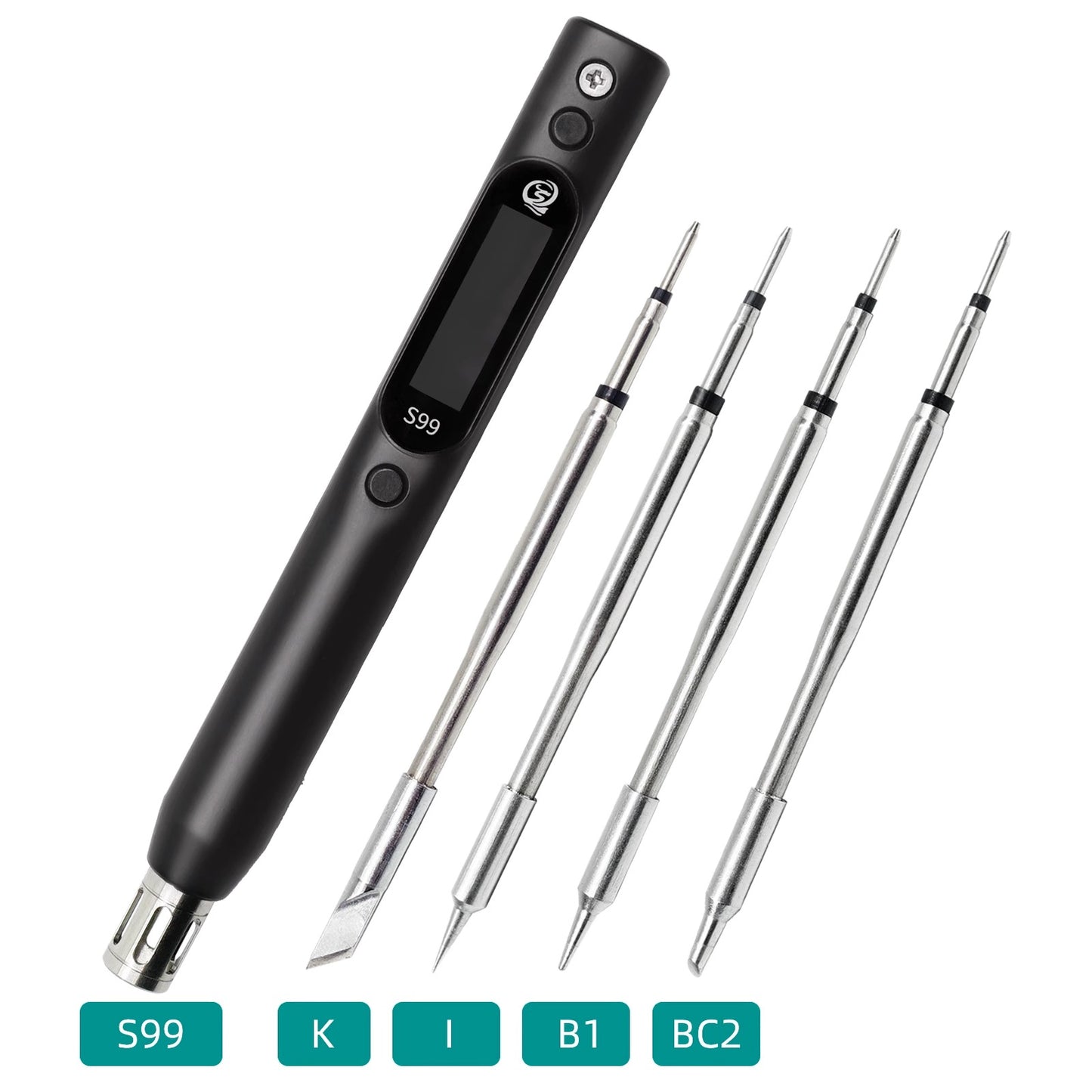

SEQURE S99 Soldering Iron Repair Tool Welding Pen
SEQURE S99 Soldering Iron Repair Tool Welding Pen
Couldn't load pickup availability

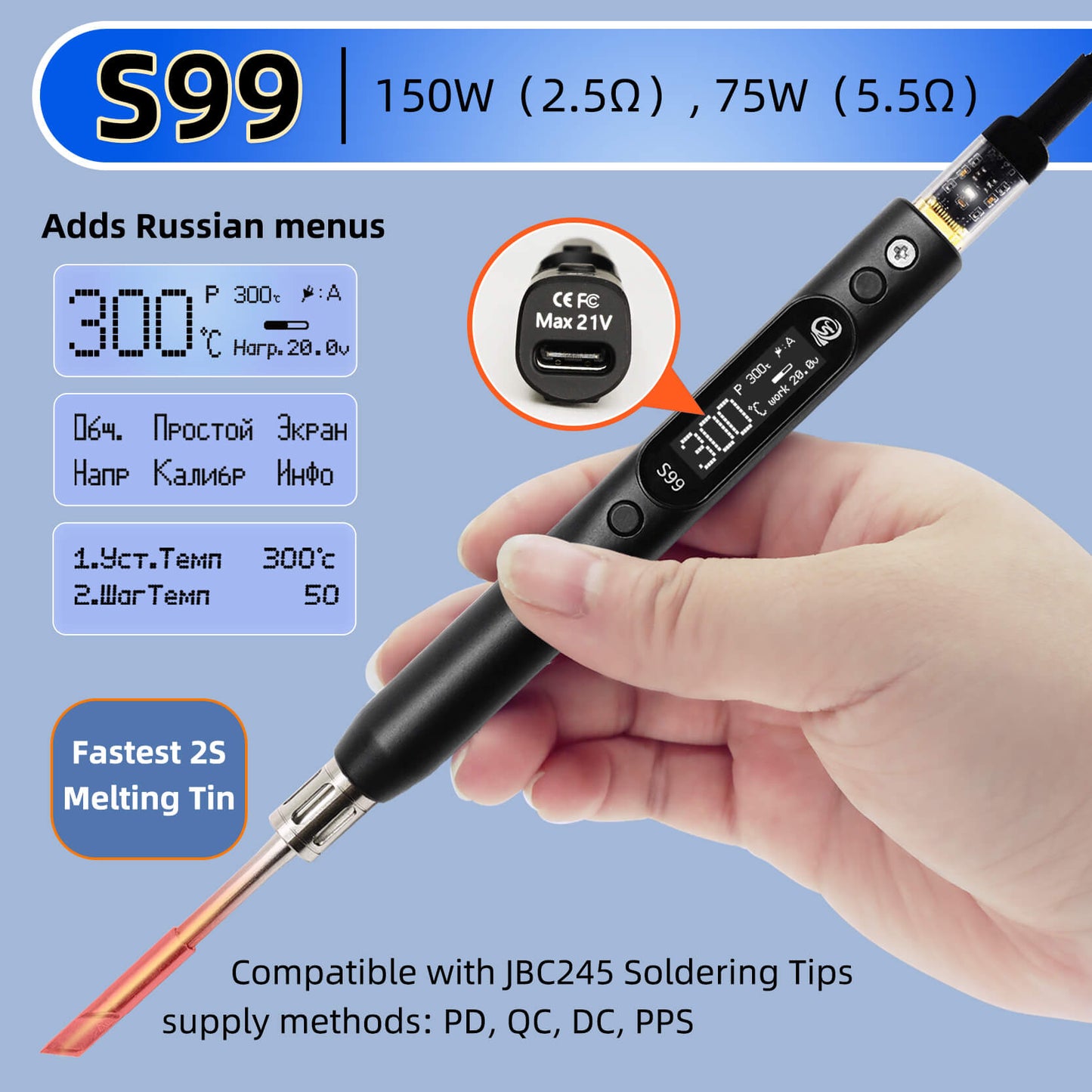

SEQURE S99 Soldering Iron Support PD/QC/DC/PPS Power Supply Compatible With C245 Tip For Drone RC Model Welding Repair Tool Anti-Static Welding Pen
Also check out our S60P Soldering Iron and all our SEQURE Soldering Iron!
Product Description:

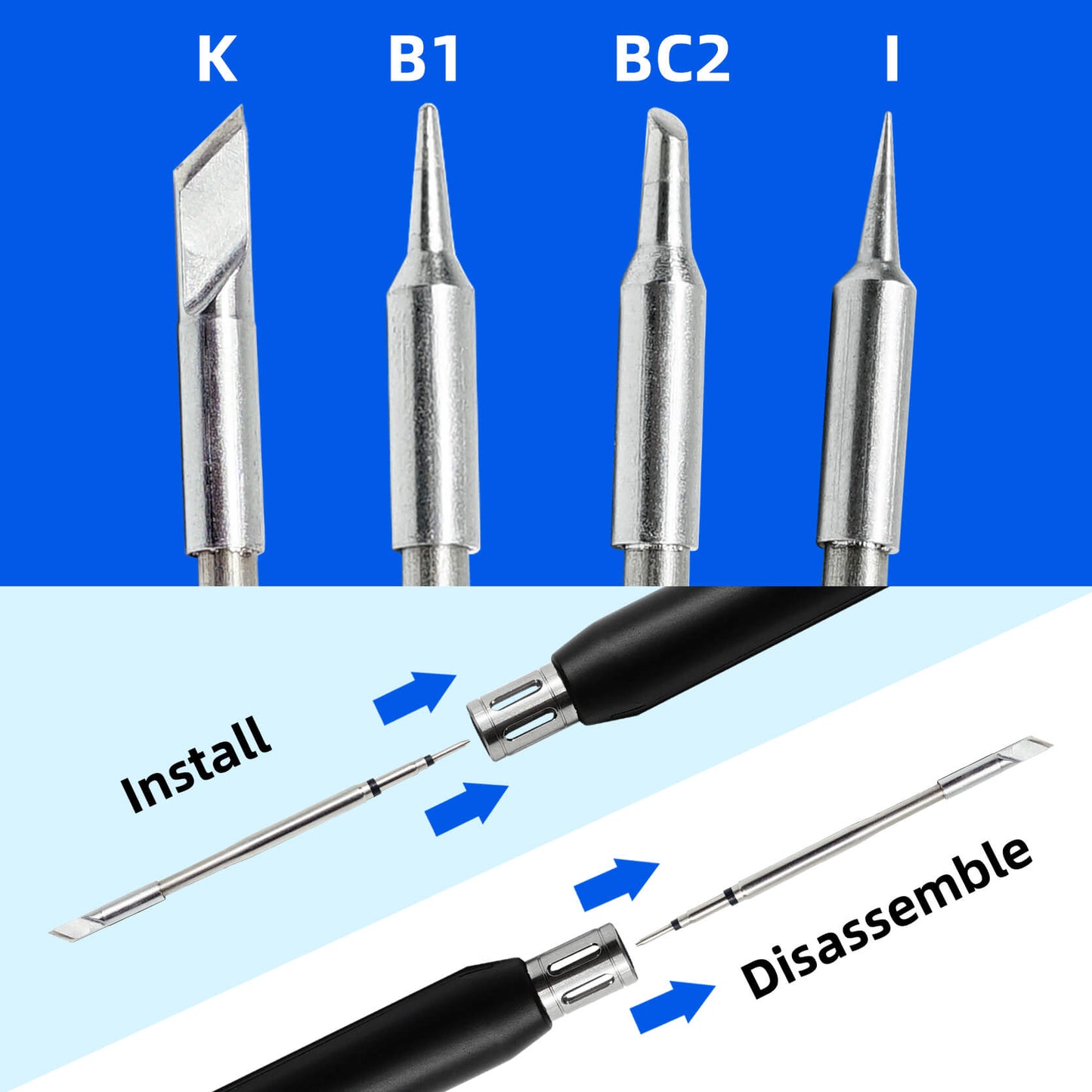

- Compatible with C245 series soldering iron tips, temperature adjustable range 50℃-500℃/122℉-932℉.

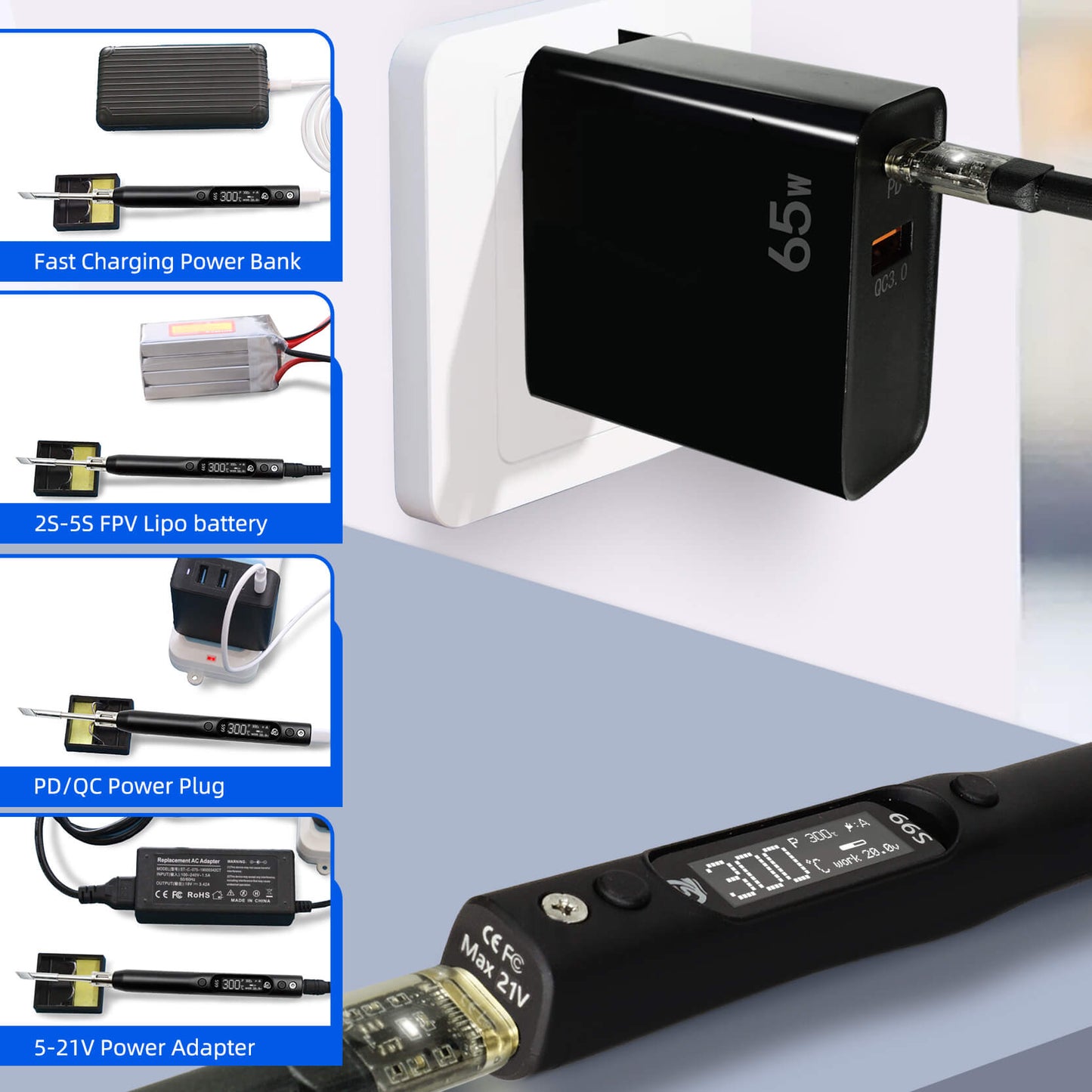

- Working power supply: support PD2.0/3.0, QC2.0/3.0, PPS, DC Max 21V.
- Intelligent temperature control algorithm, supports temperature compensation and temperature self-calibration.
- The shell is made of industrial special materials, which is extremely resistant to high temperature and has effective anti-static treatment.
- 128*32 OLED display, built-in buzzer for work reminder.
- Sensitivity can be set to reject interference from environmental factors.

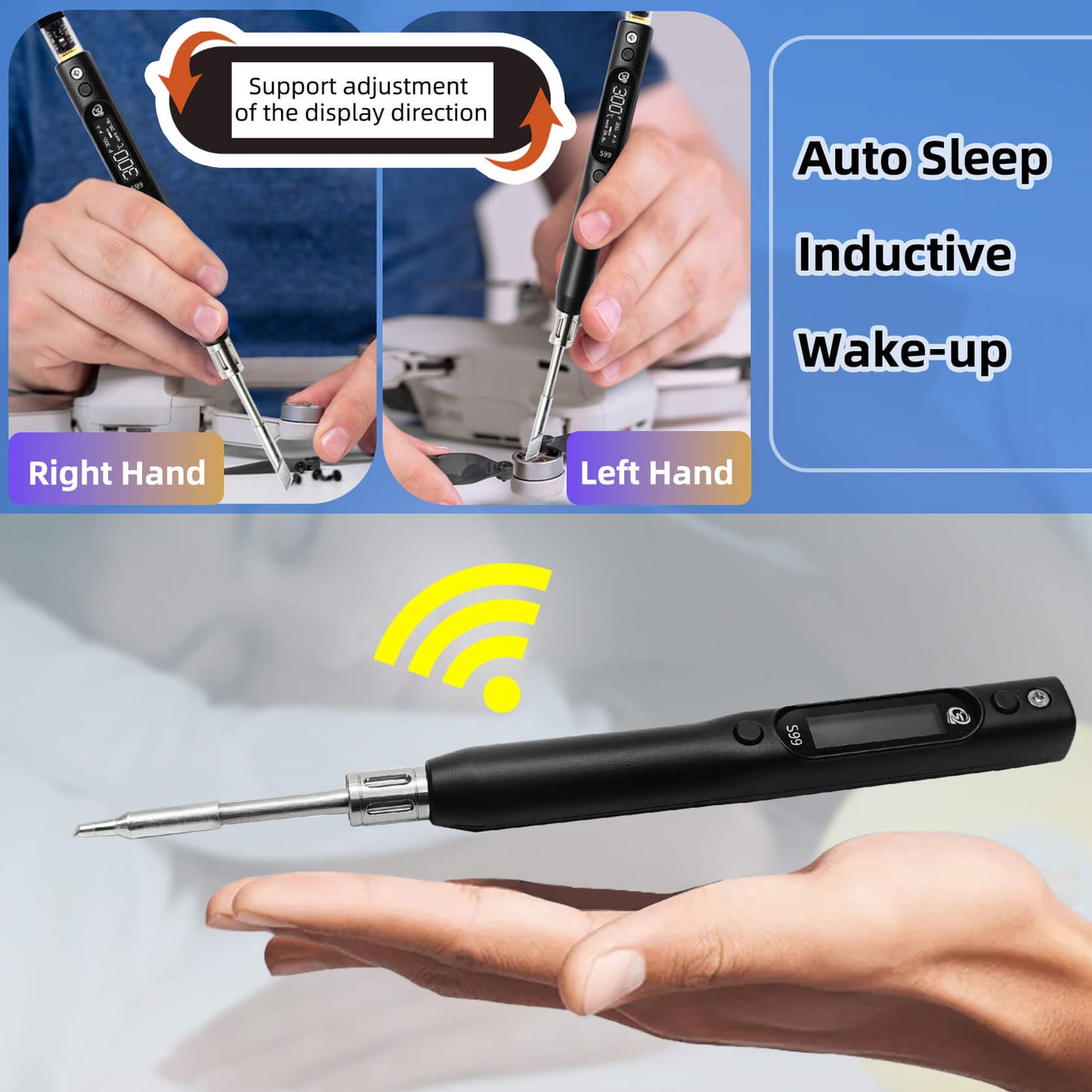

- Support ℃/℉ switch, left and right hand screen flip, firmware upgrade.
-Available in three languages： Chinese, English, and Russian
The resistance of the shipped soldering iron tip is about: 5.5 Ω

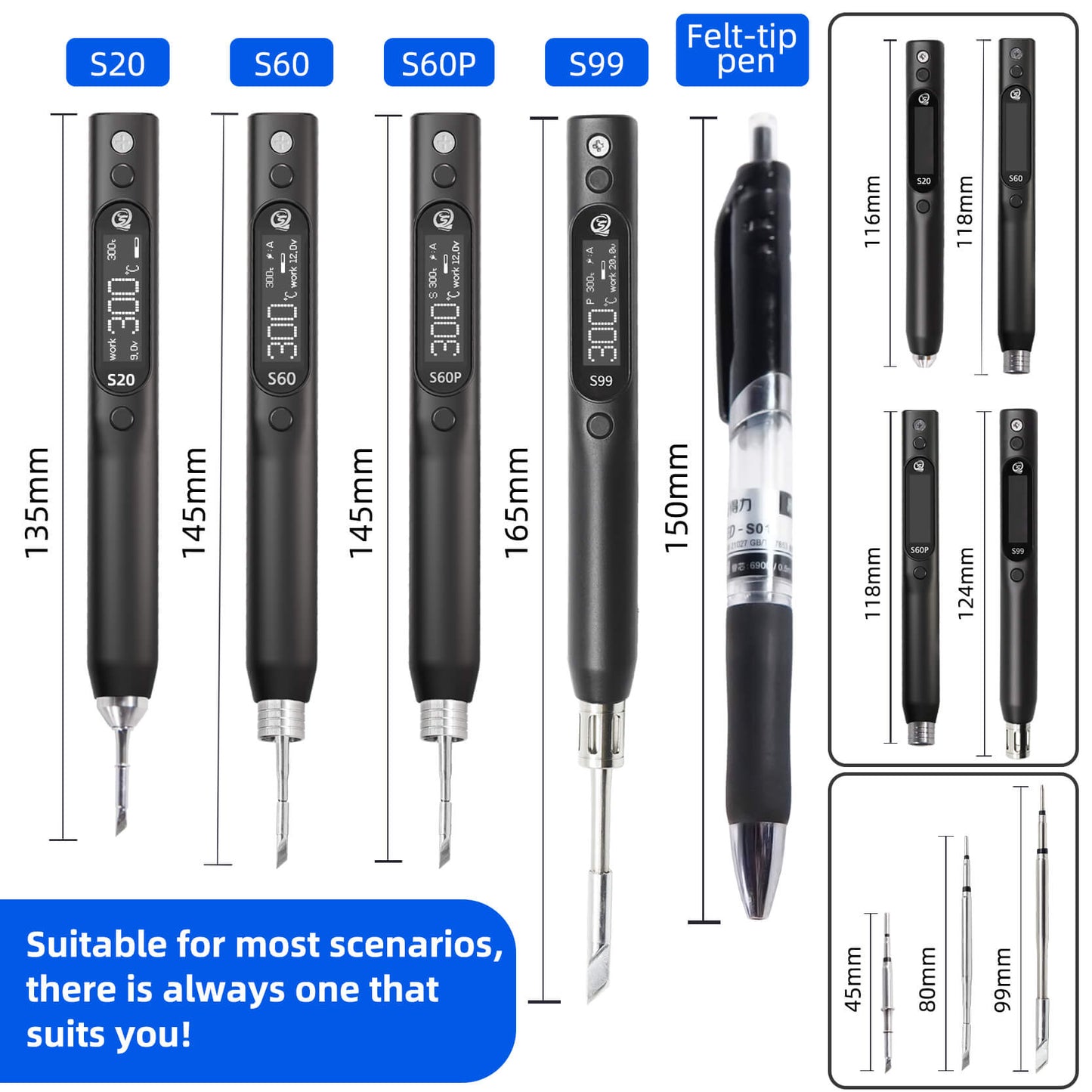

S20/S60/S60P/S99 parameter comparison
|
Model |
S20 |
S60 |
S60P |
S99 |
|
Maximum Voltage |
9V |
12V |
21V |
21V |
|
Maximum Power |
20W |
60W |
60W |
150W（2.5Ω），75W（5.5Ω） |
|
Fastest Melting Tin Time |
3s |
2s |
2s |
2s（2.5Ω），5s（5.5Ω） |
|
Working Temperature |
50-500℃ |
50-500℃ |
50-500℃ |
50-500℃ |
|
Screen Size |
128*32 OLED |
128*32 OLED |
128*32 OLED |
128*32 OLED |
|
Interface Type |
Type-C |
Type-C |
Type-C |
Type-C |
|
Power Supply |
PD，QC，DC |
PD，QC，DC |
PD，QC，DC，PPS |
PD，QC，DC，PPS |
|
Protocol Selection |
not support |
not support |
support |
support |
|
Host Size |
116*13*15mm |
118*13*15mm |
118*13*15mm |
124*13*15mm |
|
Host Weight |
22g |
22g |
22g |
22g |
|
Soldering Iron Tip Length |
45mm |
80mm |
80mm |
99mm |
|
Soldering Iron Tip Weight |
1g |
2g |
2g |
5g |
|
Host+Soldering Iron Tip Size |
135*13*15mm |
145*13*15mm |
145*13*15mm |
165*13*15mm |
|
Host+Soldering Iron Tip Weight |
23g |
24g |
24g |
28g |
|
Application |
Nano welding, chip flying lead |
Mobile computer repair |
Mobile computer repair |
Drone, RC model welding |
