SEQURE H743 V2 & E70 G1 Stack

SEQURE H743 V2 & E70 G1 Stack

Regular price $116.00
Regular price Sale price $116.00
Sale Sold out
Shipping calculated at checkout.
color

Product Description:

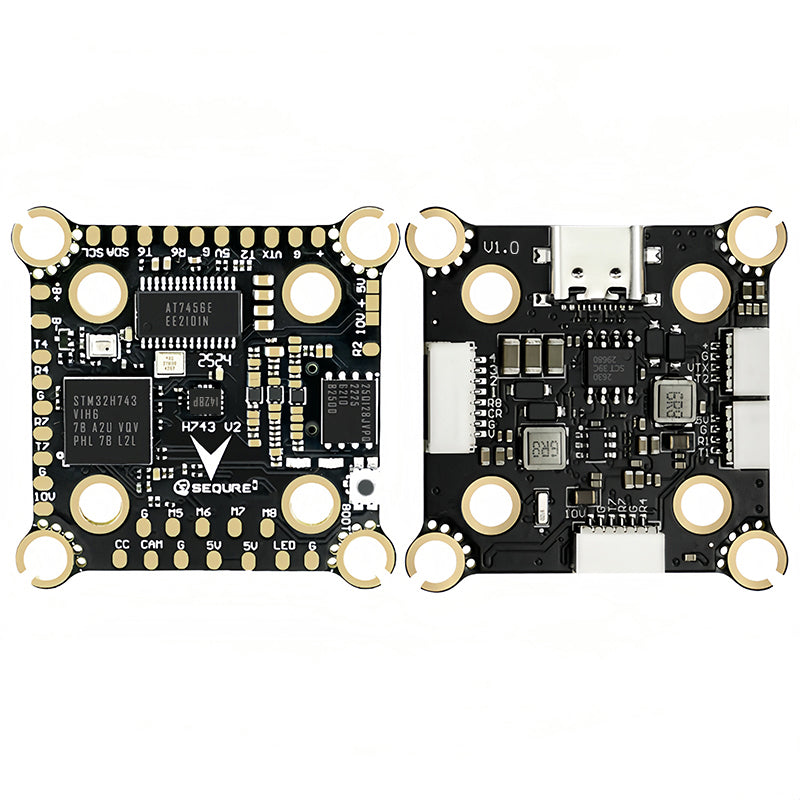

SEQURE H743 V2 FC

(1) Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.

(2) Adopts ICM42688P gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.

(3) SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.

(4)Reserve 6 UARTS to meet the needs of most devices.

(5) It can control up to 8 motors, easily constructing X8.

(6) Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage,allowing the DJI O3 and analog VTX to plug in for use directly.

(7) Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

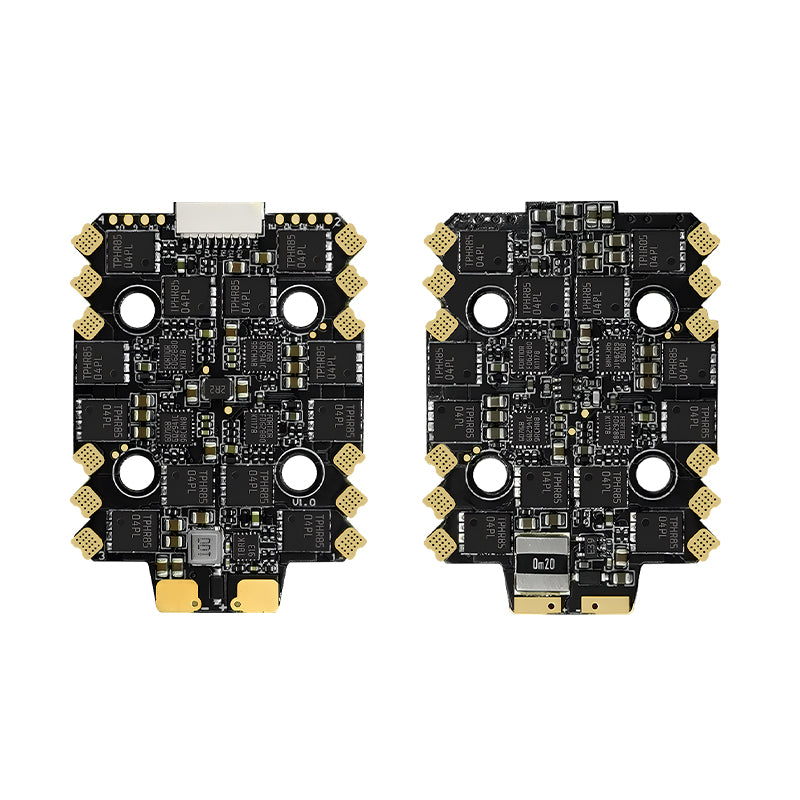

E70 G1 4IN1 ESC

(1) STM32G071 high-performance processor, using BLHeli_32 orAM32firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.

(2) Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.

(3) High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.

(4) High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.

(5) Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.

(6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.

(7) Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.

(8) 20*20mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.

Parameters of Product
SEQURE H743V2

Processor

STM32H743

Gyroscope

ICM-42688-P

Barometer

BMP280

OSD Chip

AT7456E

Black Box

16MB

Firmware

SEQUREH7V2

Input Voltage

4-8S Lipo

BEC Output

5V/2.5A,10V/2A

UARTS

6

Control Motor

M1-M8

LED

WS2812LEDStrip

Buzzer

Support

ESC Telemetry

RX8

USB

Type-C

Installation Hole Distance

20x20mm,Φ4mm/M3 | 30.5x30.5mm,Φ4mm/M3

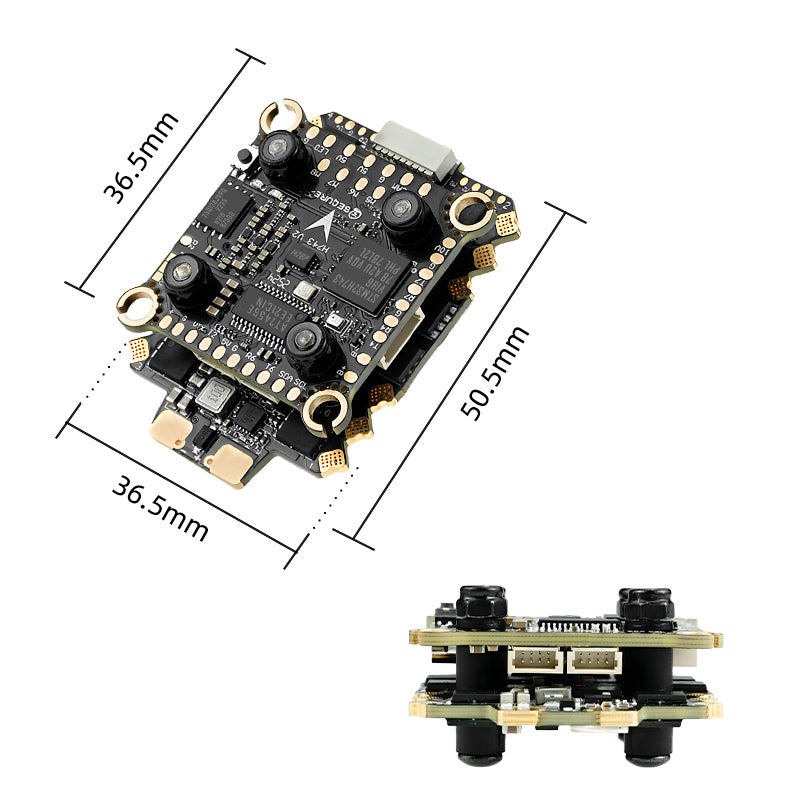

Product Size

36.5*36.5*6mm

Product Weight

7.3g


E70 G1

Processor

STM32G071

PWM Frequency

16KHz-128KHz

Working Voltage

2-8S Lipo

Continuous Current

70A

Peak Current

150A

Support Protocol

Dshot600/300/150,Oneshot,Multishot,PWM

Firmware Version

BLHeli_32,AM32

Telemetry Return

Support

Galvanometer

YES

BEC

NO

Mounting Hole Spacing

20x20mm, Φ4mm/M3

Product Size

50.5*36*6mm

Product Weight

15.8g

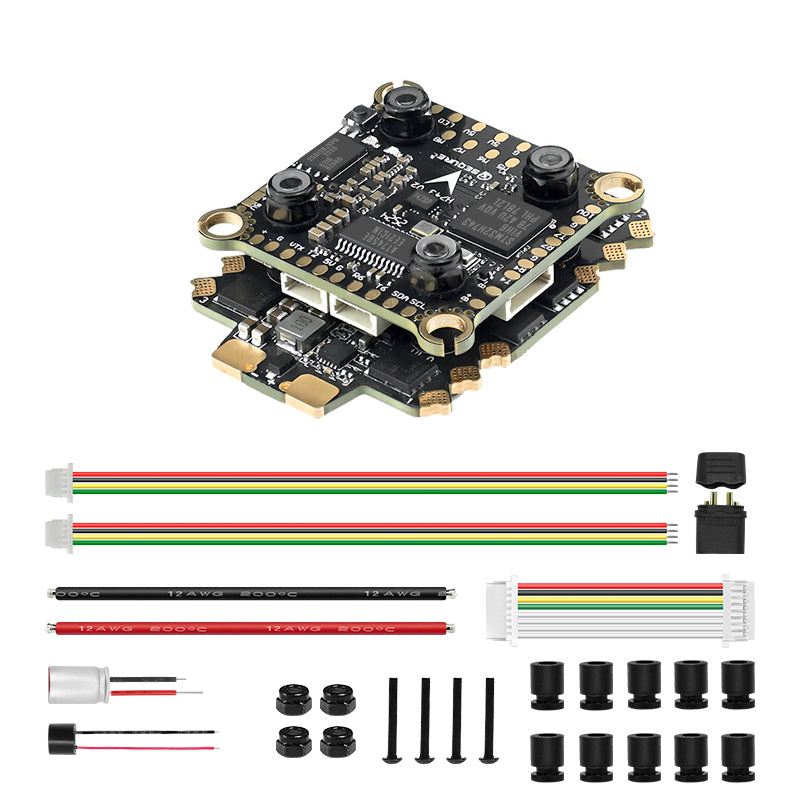

Package included:
SEQURE H743 V2 FC x 1

E70 G1 4IN1 ESC×1

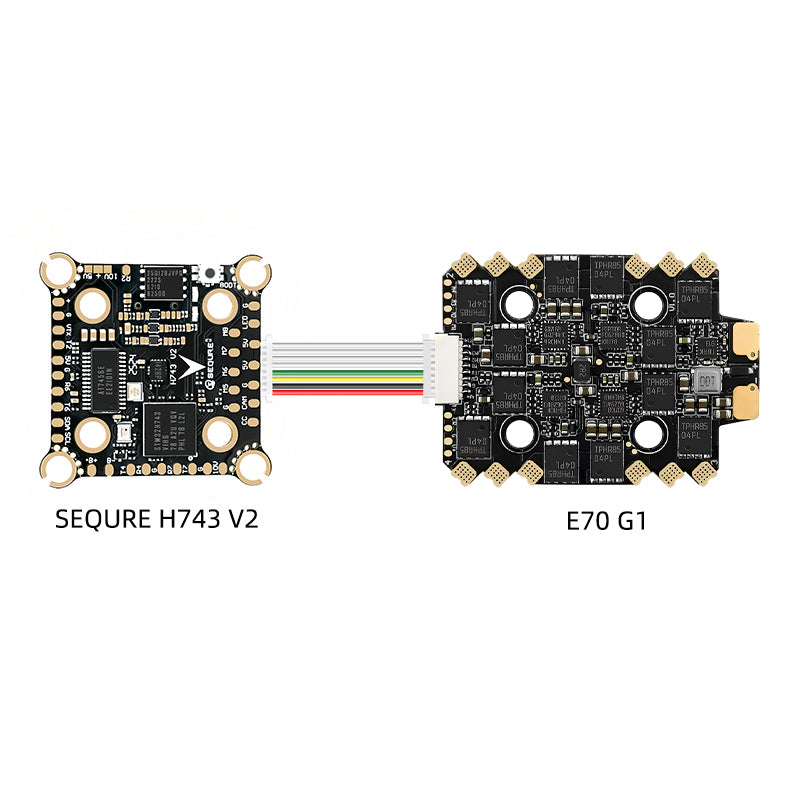

30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable x 1

30AWG 100mm Single-head SH1.0-4P Flat Cable x 2

60mm Length 12095 5V Buzzer x 1

M3*8mm Silicone Shock-absorbing Washer(Black) x 10

12AWG 100mm Power Cable(black/red)×2

XT60H-M Black Male Connector×1

35V 680UF Solid Capacitor×1

M3*25mm Screw×4

M3 Sleeve Nut×4
