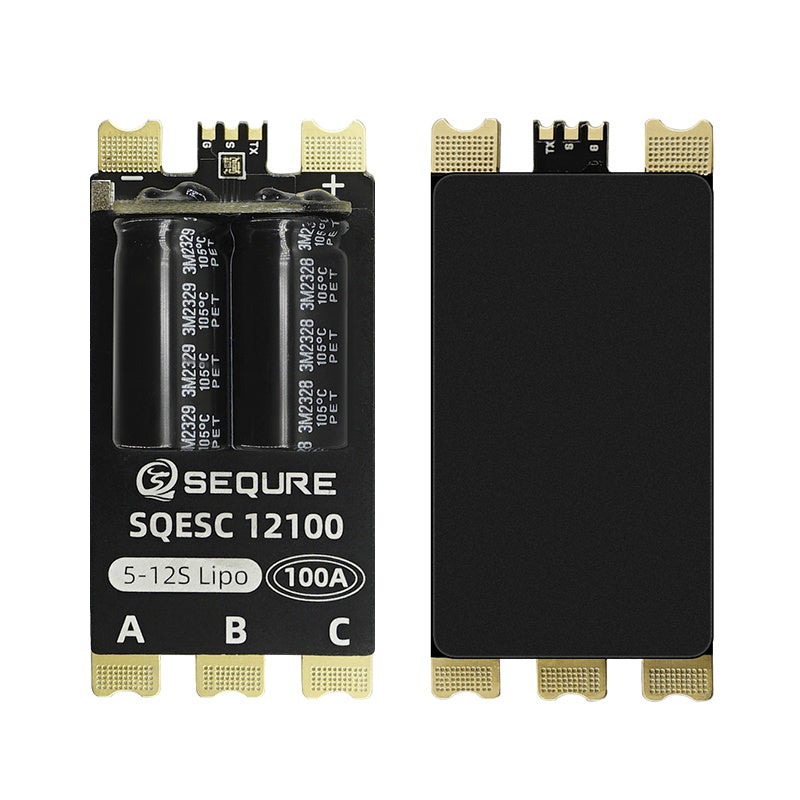

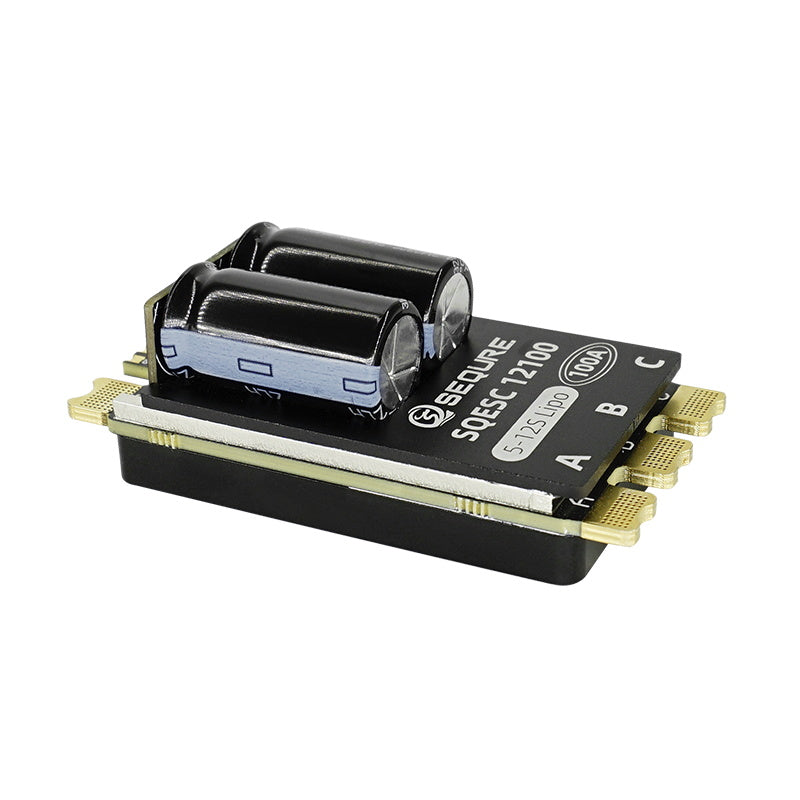

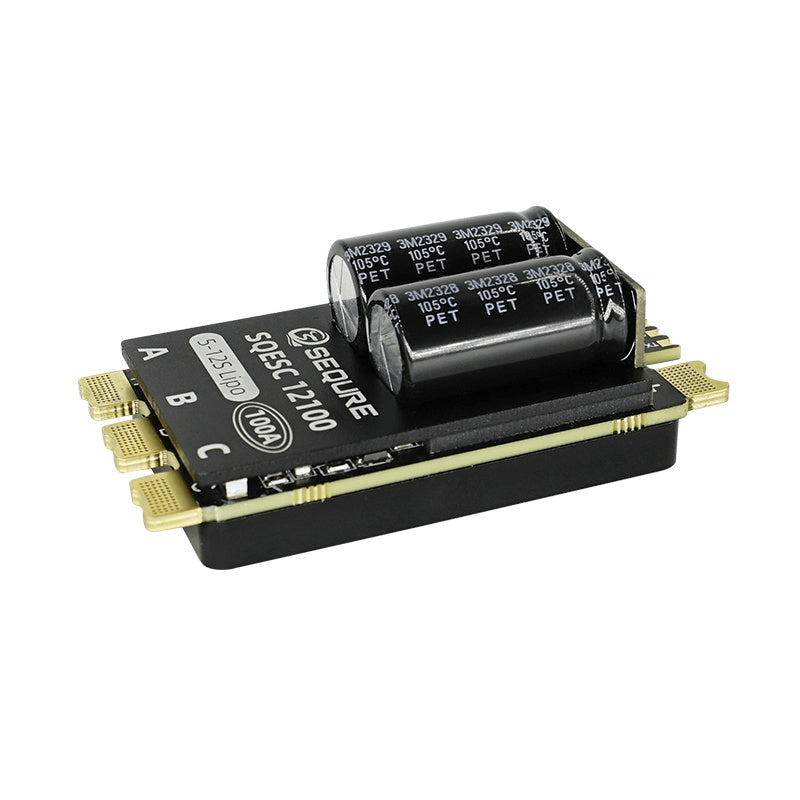

SEQURE 12100 5-12S 100A BLHeli_32 / AM32 ESC

SEQURE 12100 5-12S 100A BLHeli_32 / AM32 ESC

Regular price $59.00
Regular price Sale price $59.00
Sale Sold out
Shipping calculated at checkout.
Firmware Type

SEQURE 12100 Brushless Electric Speed Controller 5-12S Power Supply 100A BLHeli_32 / AM32 Firmware Support 128KHz PWM Frequency Suitable For Multi-Rotor Aircrafts Airplane Models Plant Protection Machine Boat Models RC Car Models

Also check out our other Escs and all our SEQURE products!


Product Description:

(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.
(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(7) Onboard RGB LED color light settings, multiple LED colors can be customized.
(8) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.

SQESC 12100 Parameters:

Model SQESC 12100
Processor STM32G071
Input voltage DC 18V-50.4V(5-12S Lipo)

Continuous current

(good heat dissipation)


Maximum current

(good heat dissipation)

Support firmware BLHeli_32,AM32
Signal protocol Dshot (All),PWM,Oneshot,Multishot,etc.
Programming parameter adjustment Support
Throttle calibration Support
Timing angle setting Support
Current detection Support
Telemetry signal Support
Motor steering settings Support
RGB LED color lights Support
Application scenarios

Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers.

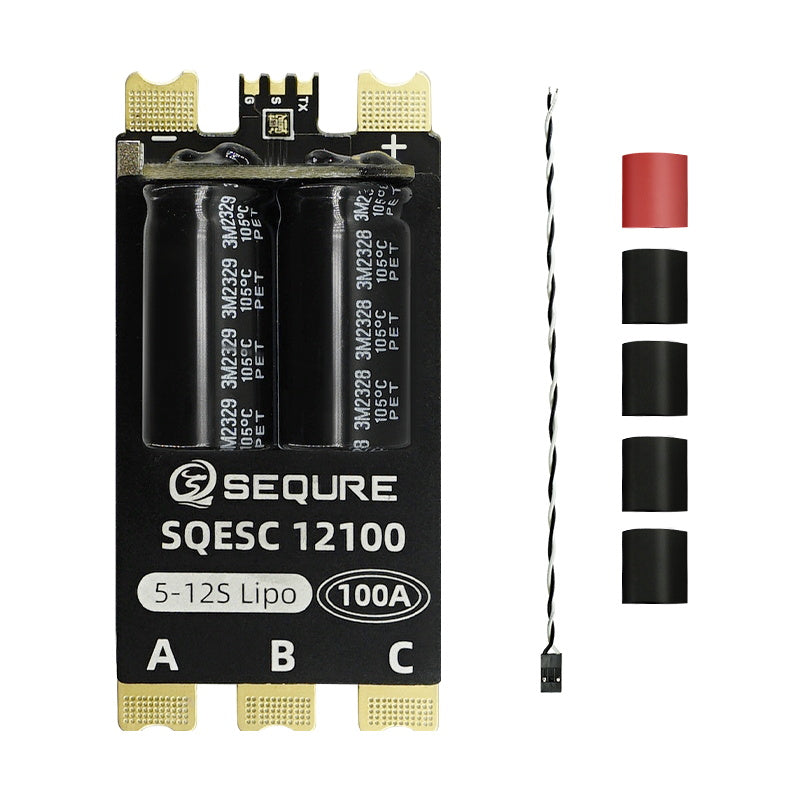

12100(BLHeli_32)/12100(AM32)Package included:

12100 Set × 1 (show as the image)
