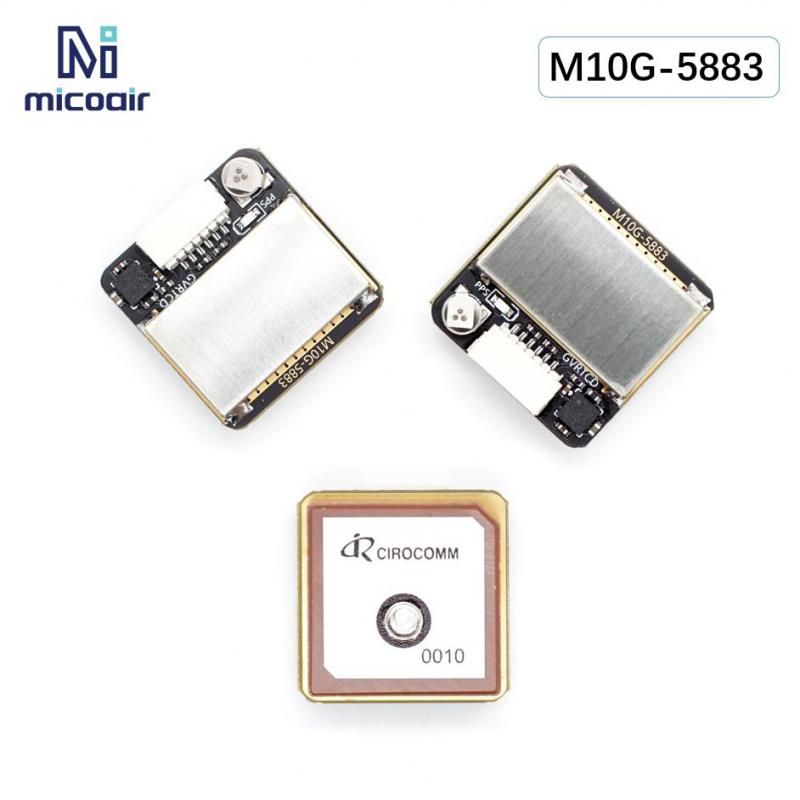

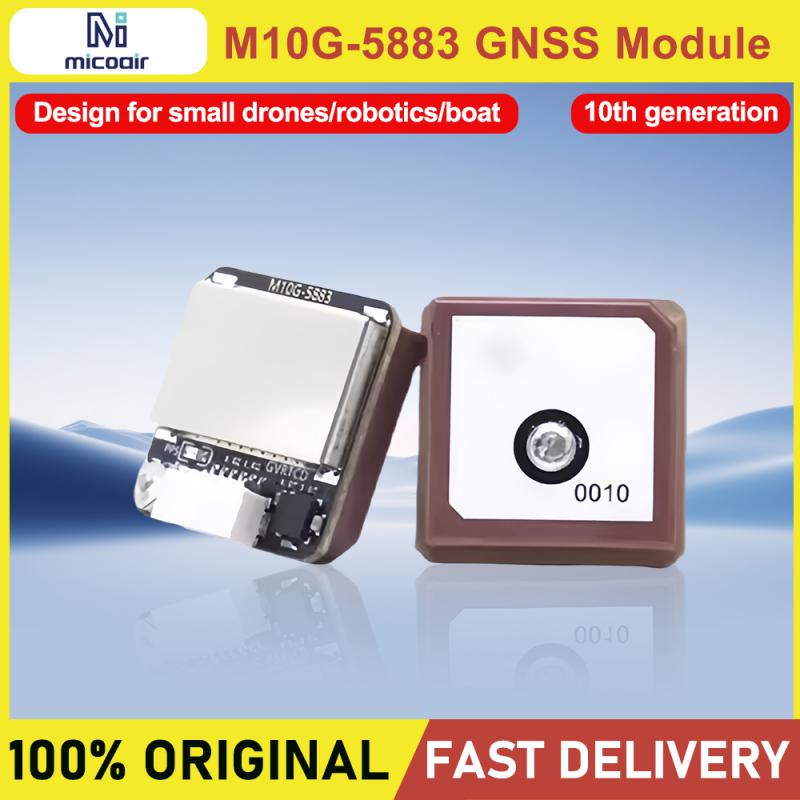

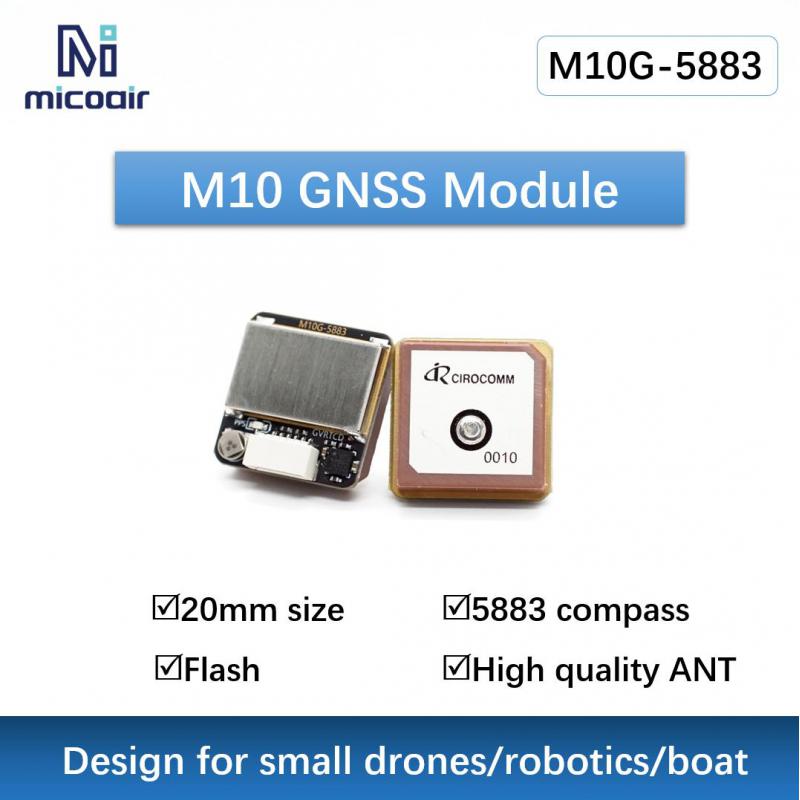

MicoAir M10G-5883 GNSS Module

M10G-5883 GNSS module integrates the 10th generation receiver chip – M10050, and the magnetic sensor – QMC5883L.

It supports all L1 GNSS signals (GPS/GLONASS/Galieo/BeiDou) and can use up to 32 satellites simultaneously for navigation.

The high-gain 18 x 18 x 4mm patch antenna provides the best balance between performance and small size.

Built-in flash, parameters can still be saved when module lost power.

Check out all our FC Accessories and the rest of our MicoAir Products!

GNSS chip M10050 (GPS, GLONASS, Galileo and BeiDou)

Magnetic Compass QMC5883L

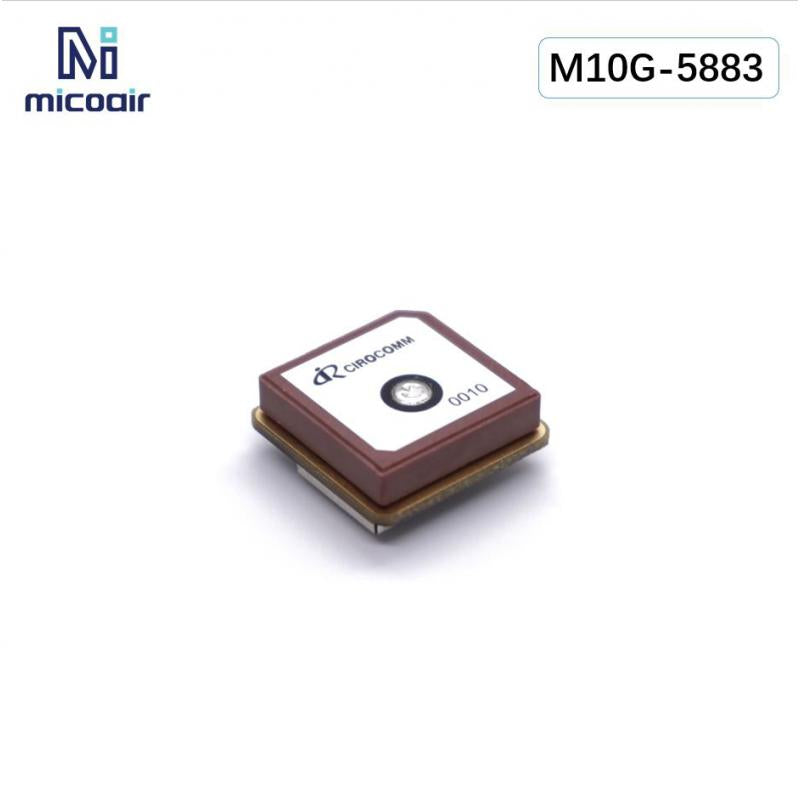

Patch antenna 18*18*4mm

Input voltage range: 5V

Concurrent: 30mA

Max Navigation rate: 5Hz

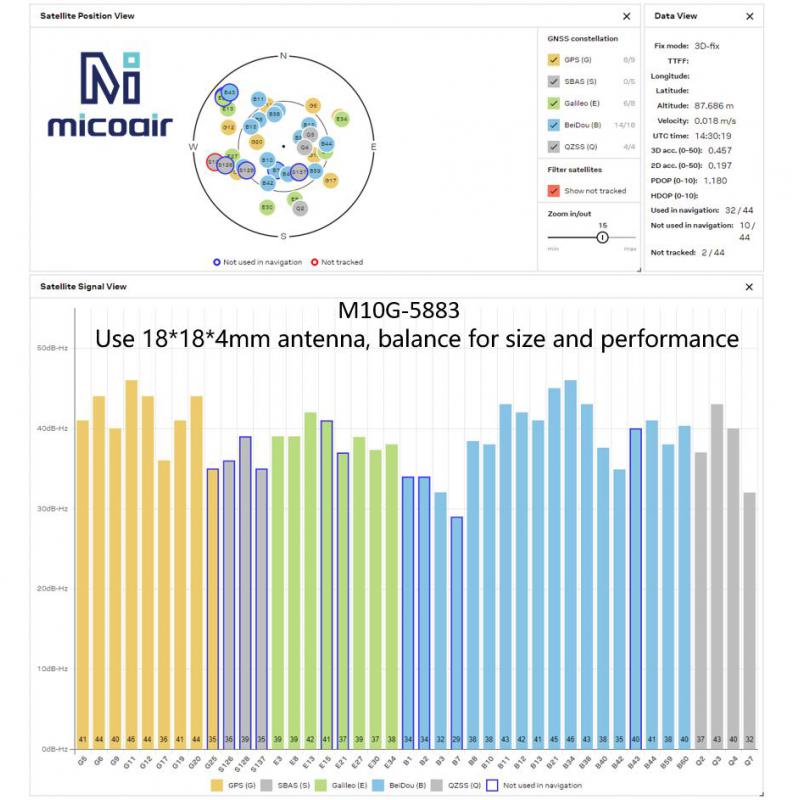

Max satelite num: 32

UART baudrate: 115200 default

Output Protocol: UBX-PVT(default)

PPS LED: Blue (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)

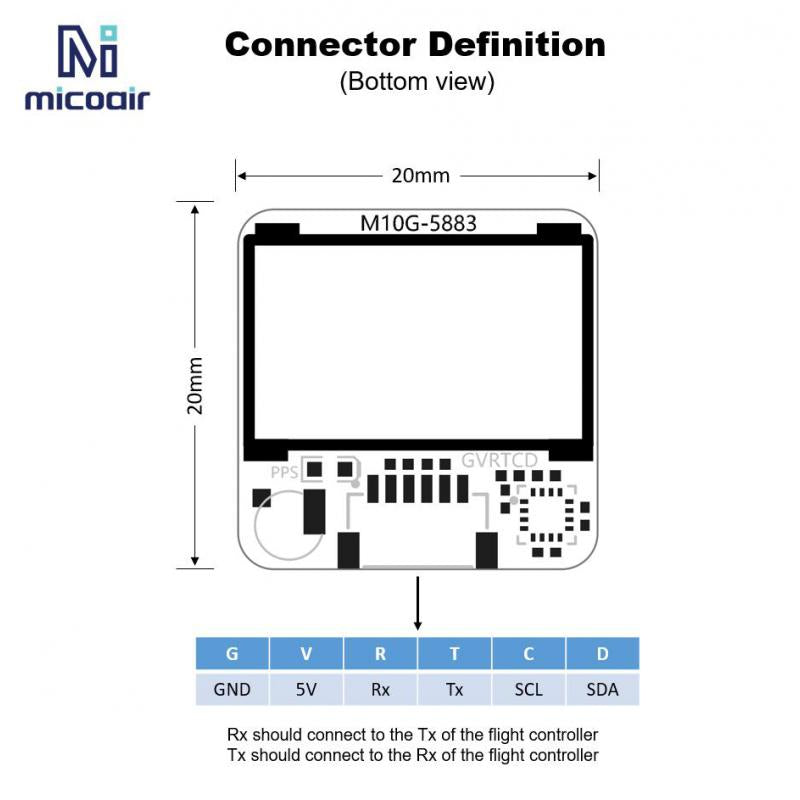

UART(TX, RX) interface for M10050

I2C(DA, CL) interface for Compass QMC5883L

Dimensions: 20 x 20 x 7.8 mm

Weight: 7g

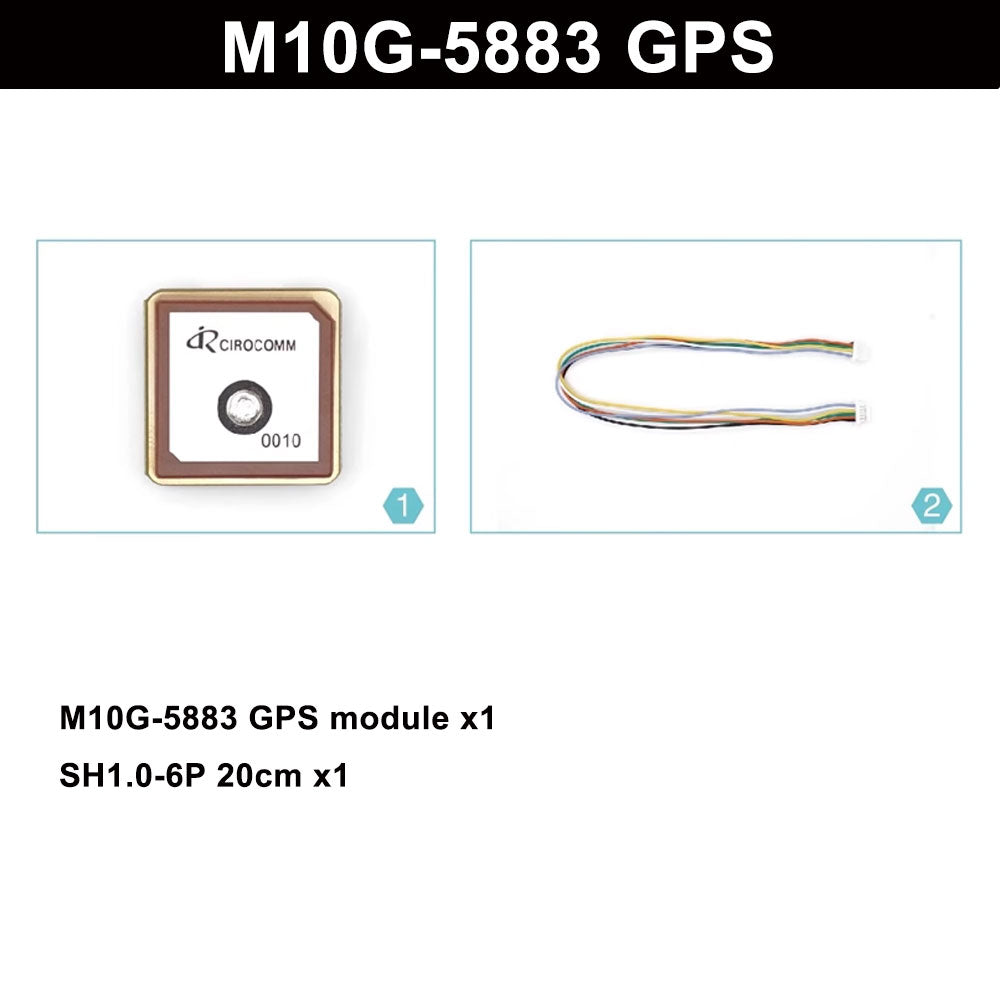

Connector: SH1.0-6P 1.0mm pitch
