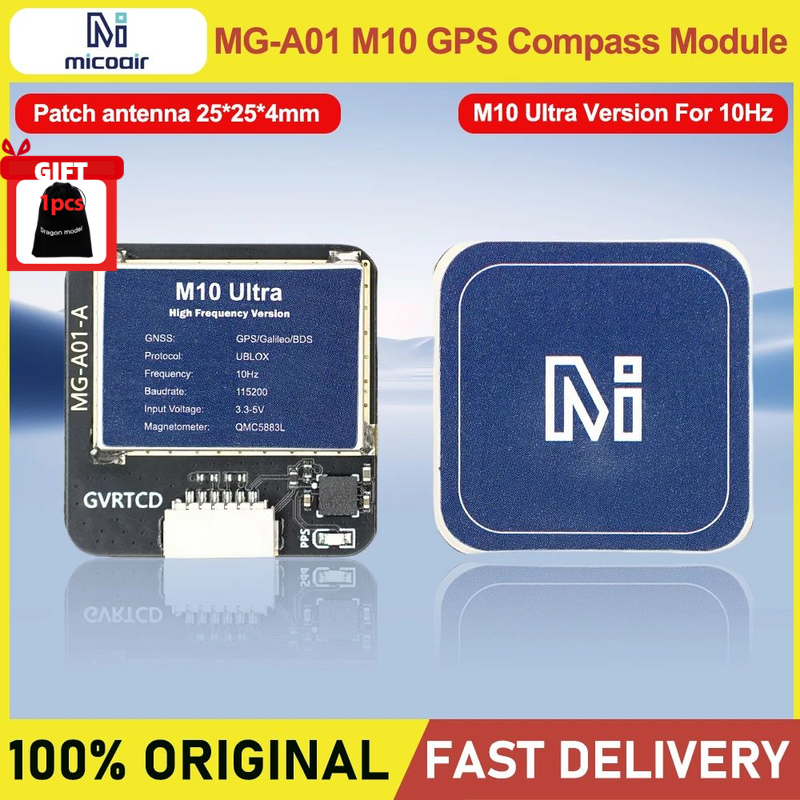

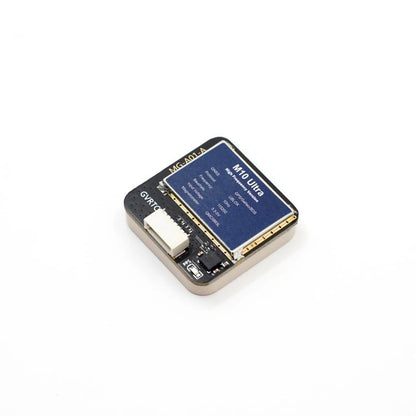

MicoAir MG-A01 GNSS GPS & Compass Module
MicoAir MG-A01 GNSS GPS & Compass Module
Couldn't load pickup availability
MicoAir MG-A01 GNSS GPS & Compass Module
As we all know, M10 is the latest generation of GNSS receiver, with higher startup speed, positioning accuracy, and more satellites. But at the same time, M10 (5Hz) sacrifices the navigation update rate compared to M8 (10Hz) and M9 (25Hz). In order to solve this problem, we integrated an Ultra version of the M10 chip into MG-A01, which runs with a higher frequency, make it possible to achieve 10Hz navigation update rate while using 32 satellites.
In order to solve the problem of unstable navigation update rate of M10, the developer team of ardupilot forcibly limited the number of satellite by turning off BeiDou B1L and GLONASS. In fact, they could choose to use the M10 Ultra without making any changes.
Check out all our FC Accessories and the rest of our MicoAir Products!
Description
The difference between M10 and M10 Ultra:
The normal version of M10 can only reach a 4-5Hz navigation rate, even if the update interval is set to 100ms. And the M10 Ultra version can guarantee a 10Hz navigation rate.
Get more product detail from our website:
MG-A01 module uses multi-constellation GNSS chip powered by M10050.

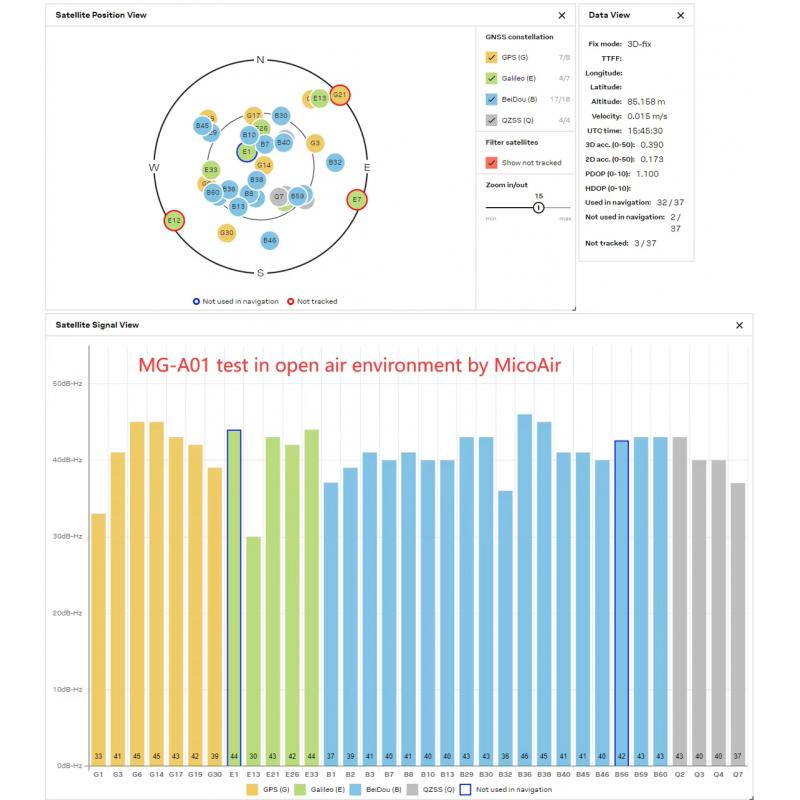

MG-A01 supports concurrent reception of GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.
The high-gain 25 x 25 x 4 mm antenna from CIROCOMM provides the best performance for GNSS receiver. The omnidirectional antenna radiation pattern increases flexibility for device installation.
GNSS M10050 (GPS, GLONASS, Galileo and BeiDou)
Magnetic Compass QMC5883L
Patch antenna 25*25*4mm
Input voltage range: 4~5.5V (5V pad/pin)
Power consumption: 30mA
UART baudrate: 115200 default
Operating Temperatures: -20~80 °C

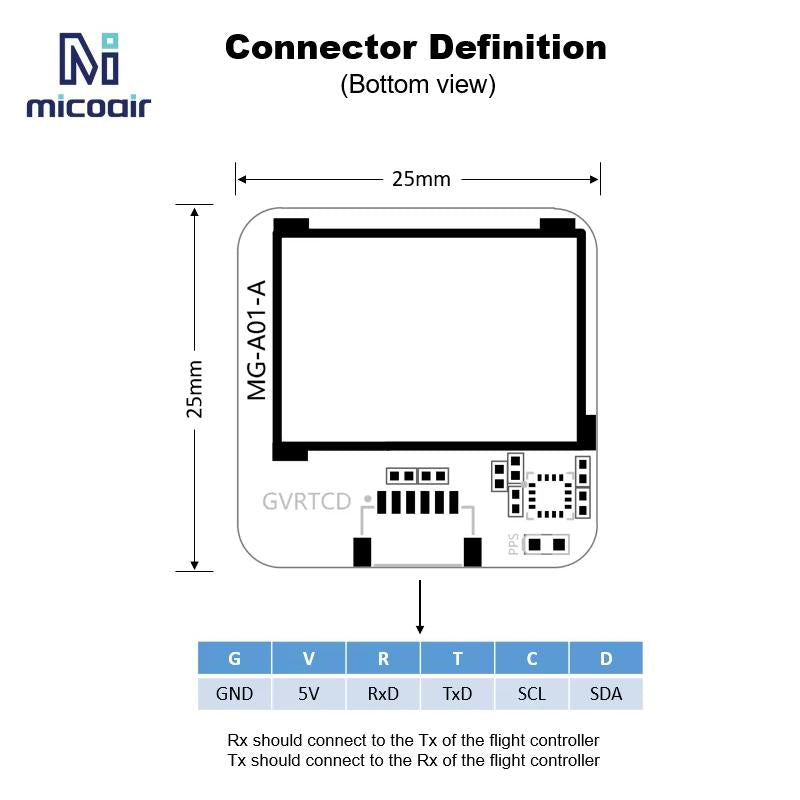

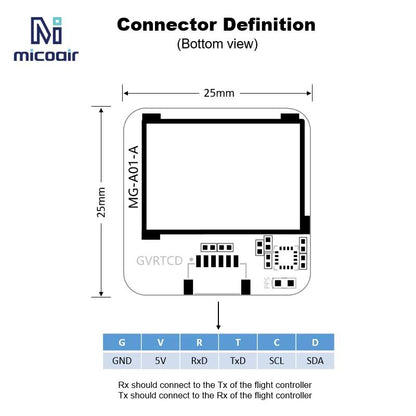

UART(TX, RX) interface for M10050
I2C(DA, CL) interface for Compass QMC5883L

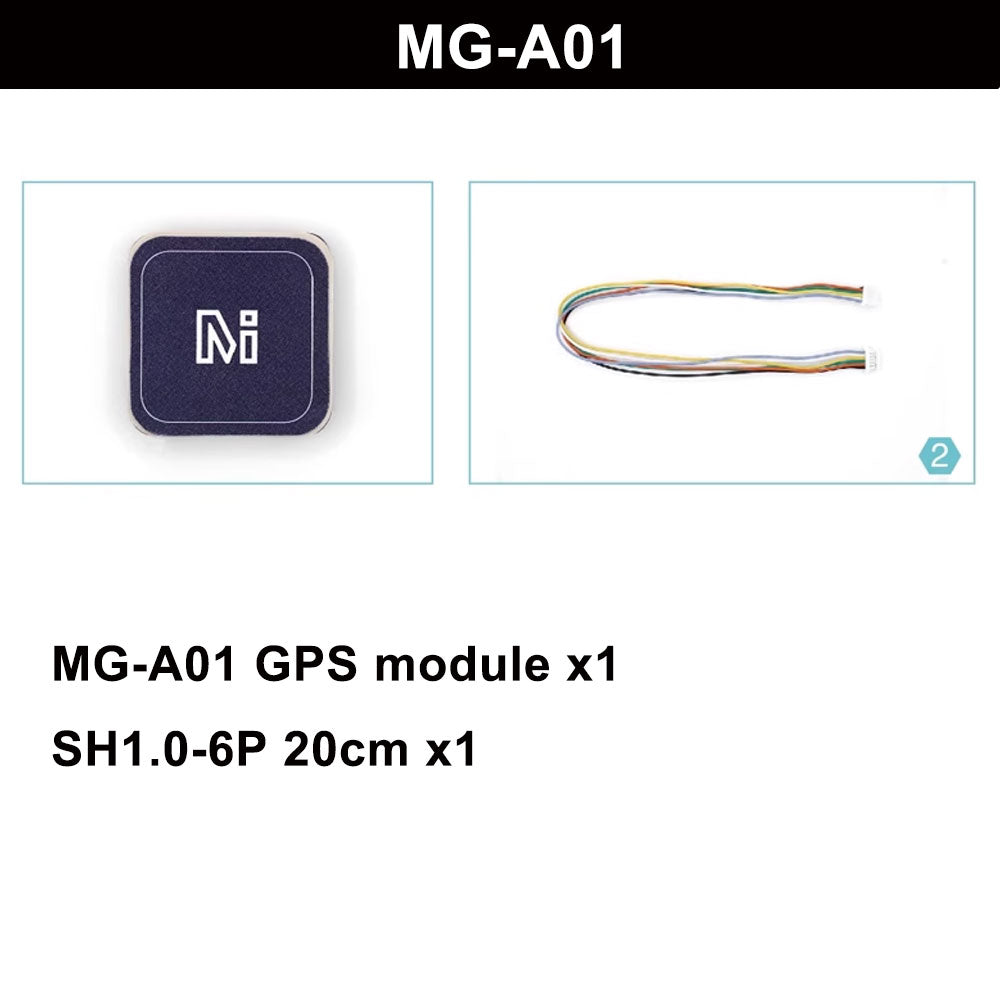

SH-1.0 6P connector ,1.00mm pitch
GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
Protocol: UBX(u-blox) 10Hz@GPS+GAL+BDS or NMEA 1Hz

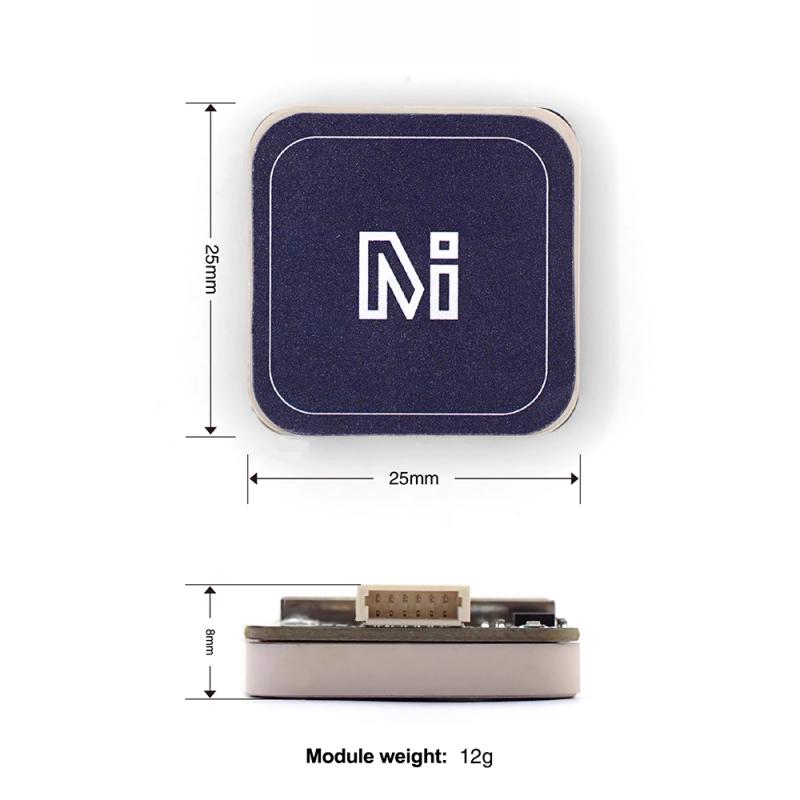

25mm*25mm*8mm 12g
