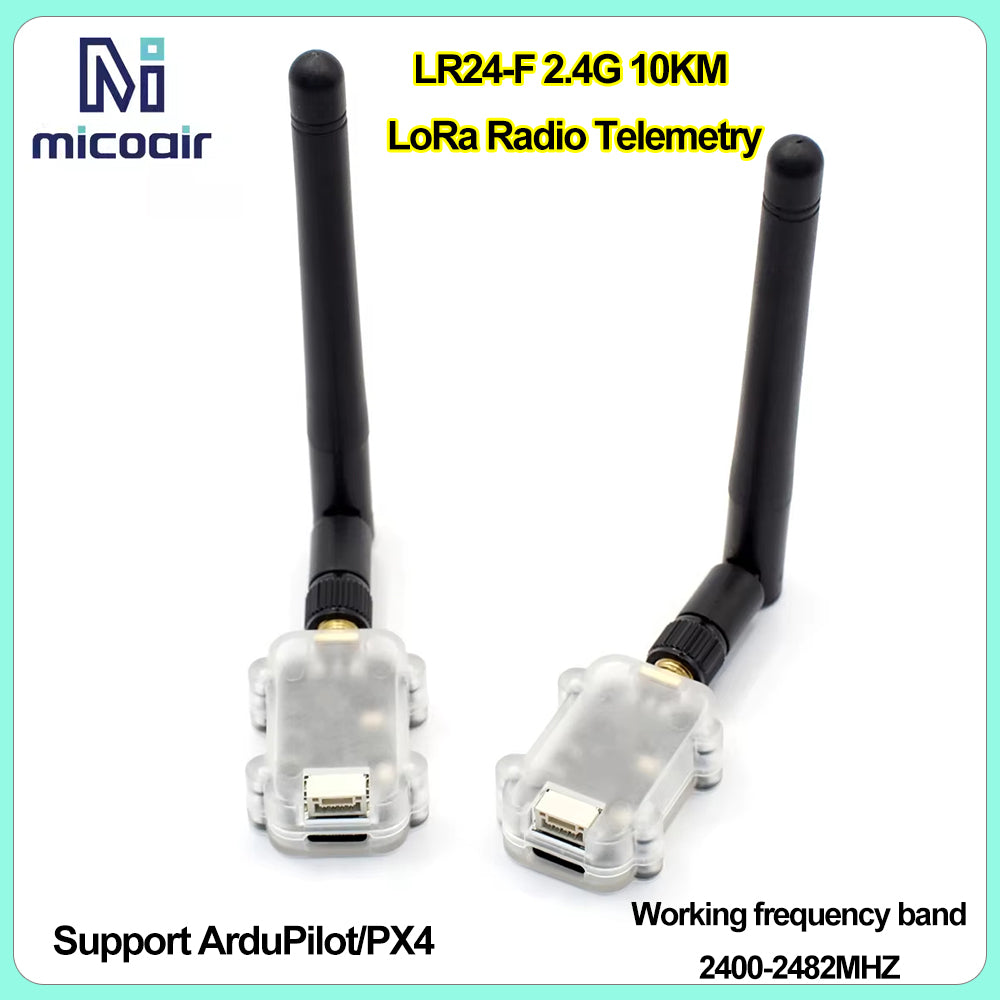

The LR24-F Telemetry Radio is a small, cheap radio with superior performance for flight controller that typically allows ranges of better than 10 kilometers. And it is very suitable for Pixhawk or other Audupilot/PX4 flight controller. It will connect automatically when power up without any configuration unless you need to implement some special features.

The LR24-F works in the 2.4GHz, so is better to use 915M receiver (BlackSheep/ELRS 915) than any other 2.4G receiver on your drones.

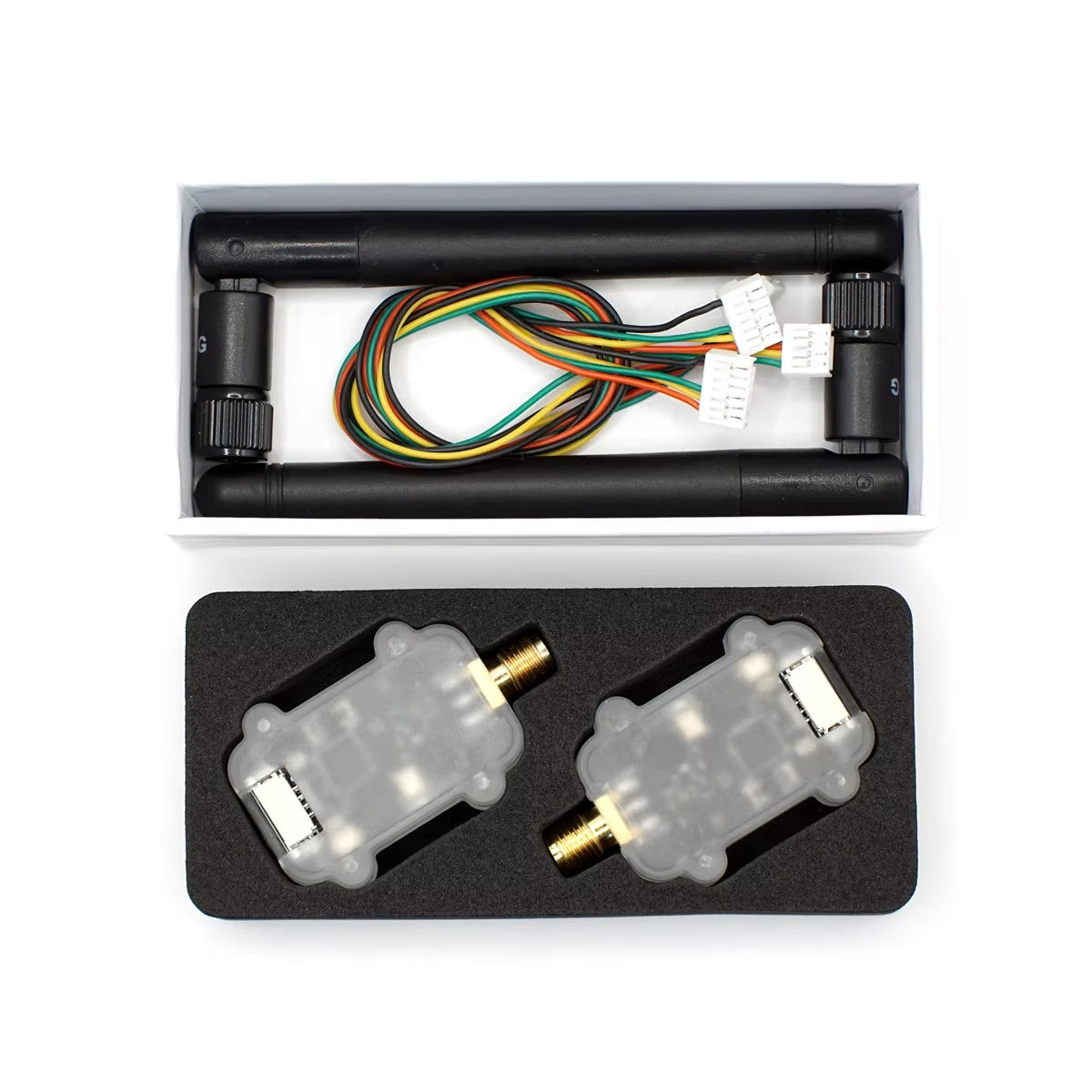

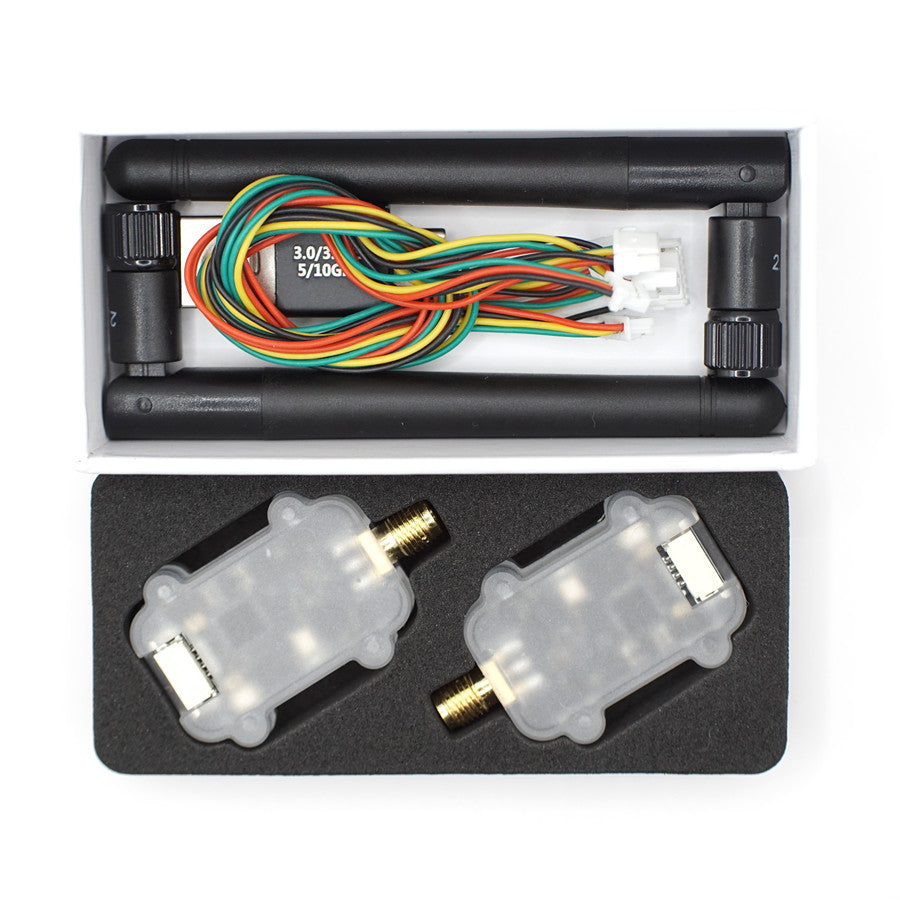

Package Lists

LR24-F Radio Telemetry * 2

2.4G 3dBi antenna(11cm) * 2

20cm GH1.25-4P to GH1.25-6P Cable (For Pixhawk4/5/6) * 1

20cm GH1.25-4P to MX1.25-6P Cable (For Pixhawk1/2) * 1

Check out all our FC Accessories and the rest of our MicoAir Products!
Features

• Work in 2.4GHz ISM bands

• Small size and light weight (8g)

• Transmit power up to 27dBm (500mW)

• Base on LoRa modulation technology to obtain excellent anti-interference performance

• Frequency hopping spread spectrum (FHSS)

• Using transparent transmission to compatible with any data and protocol not just mavlink

• CP2102 USB to UART IC, compatible with QGroundControl on Android

Data Transmission

• Transmission Rate: 2.4K Byte/s (default); 4K Byte/s; 8K Byte/s; 20K Byte/s;

• Maximum Single-package Length: 20K Byte

• Uart Baudrate for JST-GH Interface: 9600; 19200; 38400; 57600 (default); 115200; 230400; 460800; 500000; 921600

• Uart Baudrate for USB Interface: 57600 (default); 115200; 921600

Physical

• Dimensions: 43.4 x 25.8 x 11mm (without antenna)

• Weight: 8g
