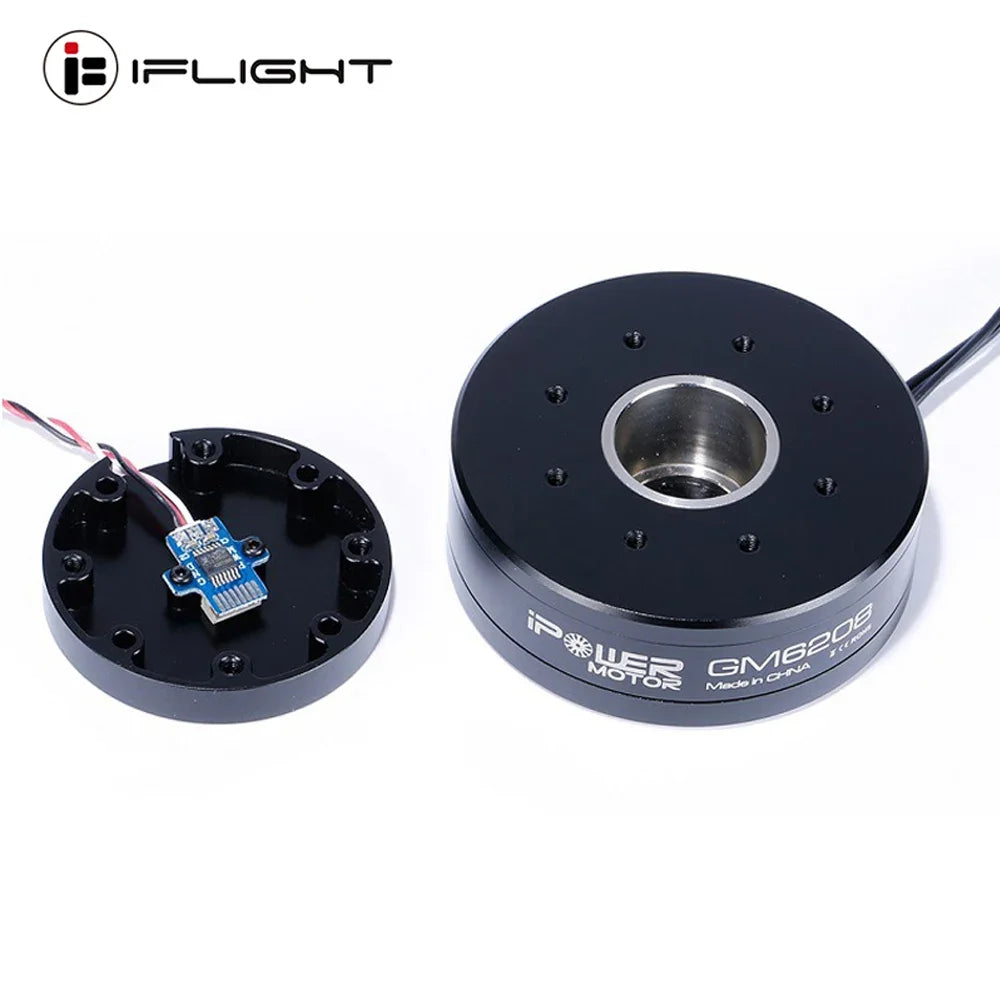

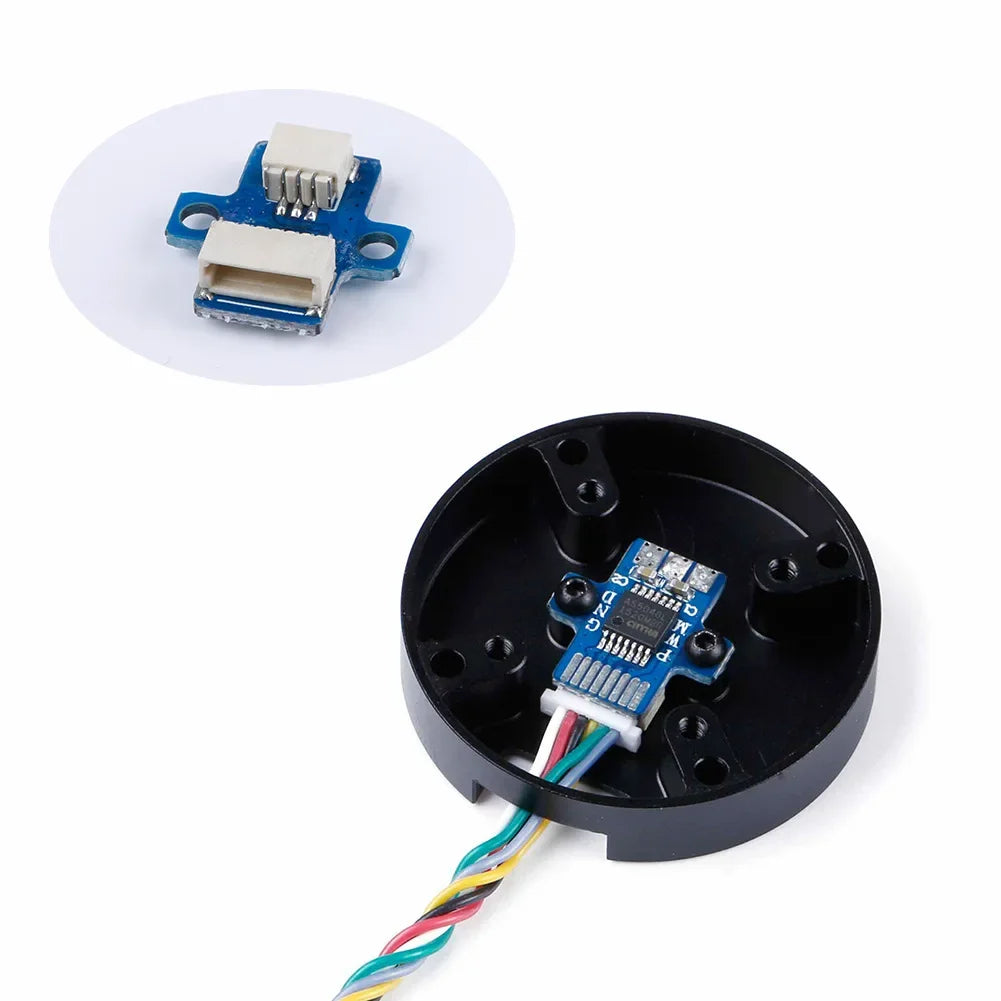

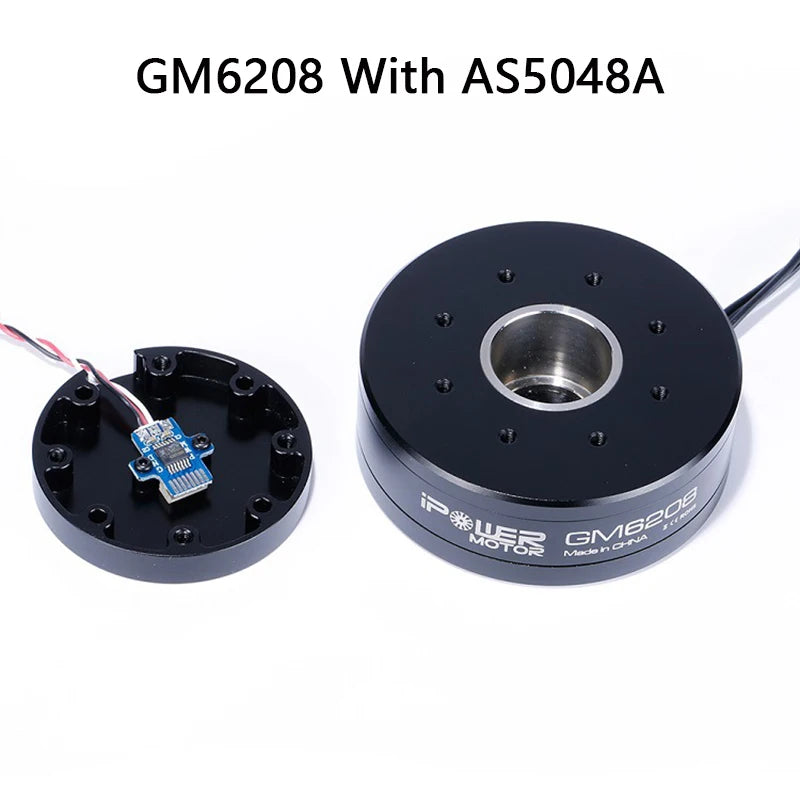

IFlight IPower Motor GM6208 150T W AS5048A 6208 hollow shaft brushless Gimbal motor

• The GM62 series motor by iPower Motors is the ultimate brushless gimbal motor for DSLR / CANON 5D MARKII,

• MARKIII Cameras. This motor is designed for large scale multi-rotor platforms looking to lift Red Epic & DSLR sized gear

• – 4KG/cm Torque. The principle of the camera stabilization using brushless direct-drive motors, In fact, gimbal based

• on BLDC motors is very similar to regular gimbal based on hobby servo.

Specifications:

• Model: GM6208

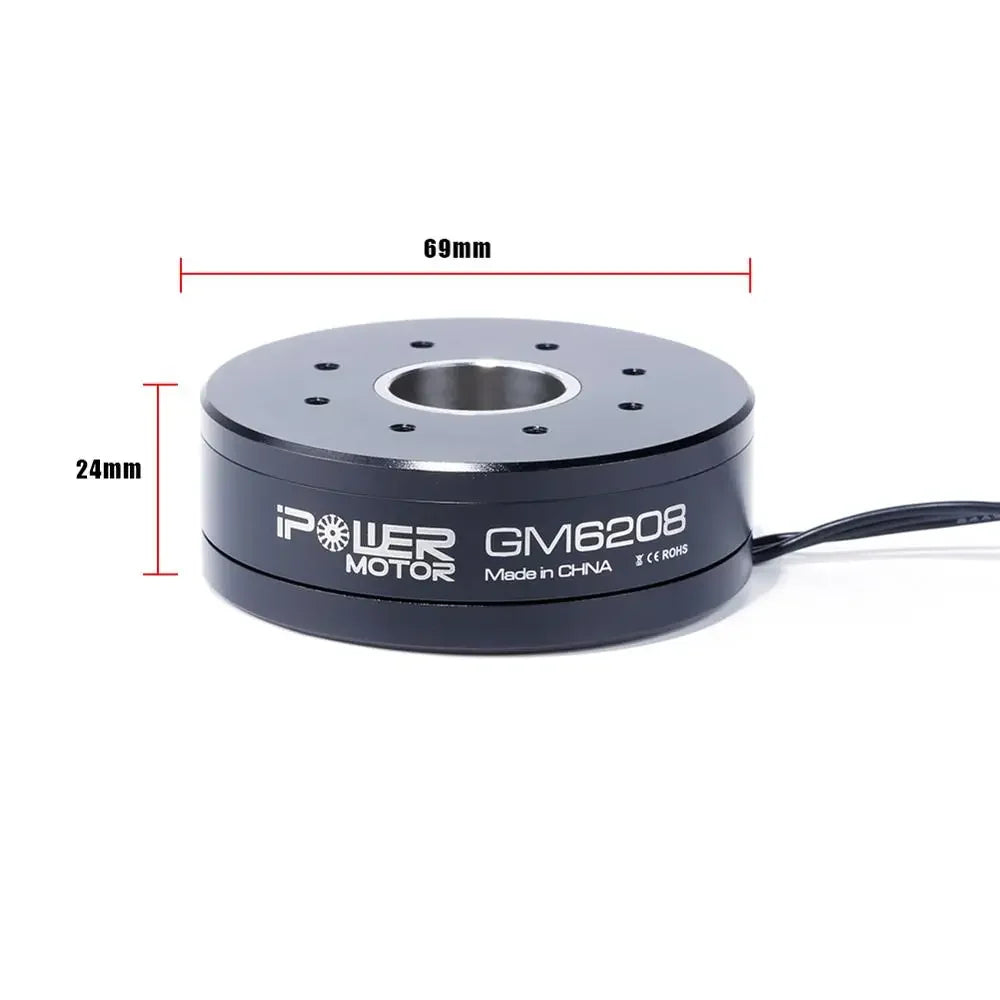

• Motor Out Diameter: Ф69.5±0.05mm

• Configuration: 24N/28P

• Motor Height: 24±0.2mm (Included with Encoder housing)

• Hollow Shaft(OD): Ф25-0.01/-0.015 mm

• Hollow Shaft(ID): Ф22+0.05/+0 mm

• Wire Length: 610±3mm

• Cable AWG: #24

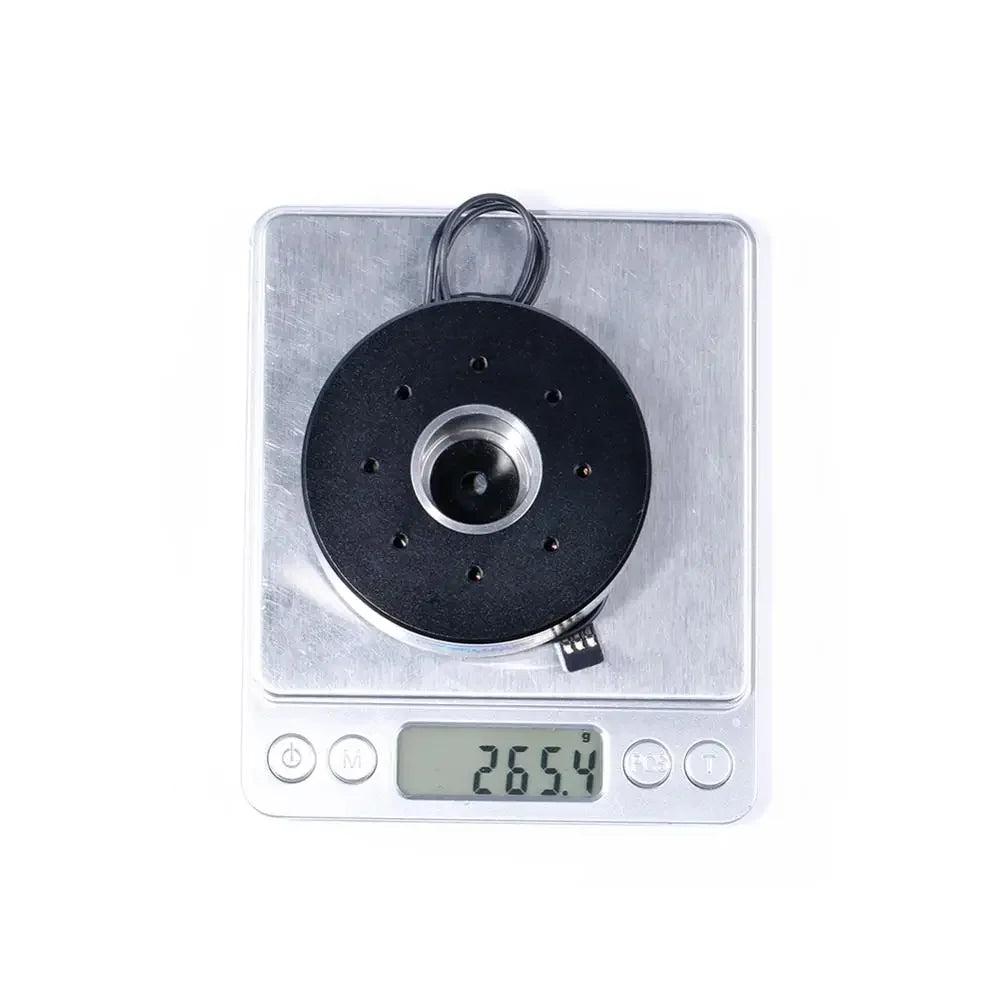

• Motor Weight: 249±0.5g

• Wire plug: 2.5mm dupont connector

• No-load current: 0.08±0.1 A

• No-load volts: 20 V

• No-load Rpm: 209~231 RPM

• Load current: 1.2 A

• Load volts: 20 V

• Load torque(g·cm): 2600-3600

• Motor internal resistance: 32Ω±5%(Resistance varies with temperature)

• High voltage test: DC500V 1mA @2sec

• Rotor housing runout: ≤0.1mm

• Steering (axle extension): clockwise

• High-low temperature test:

• High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature

• Low temperature: Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature

• Maximum power: ≤25W

• Working current: 3-5S

• Working temperature: -20~60℃;10~90%RH
