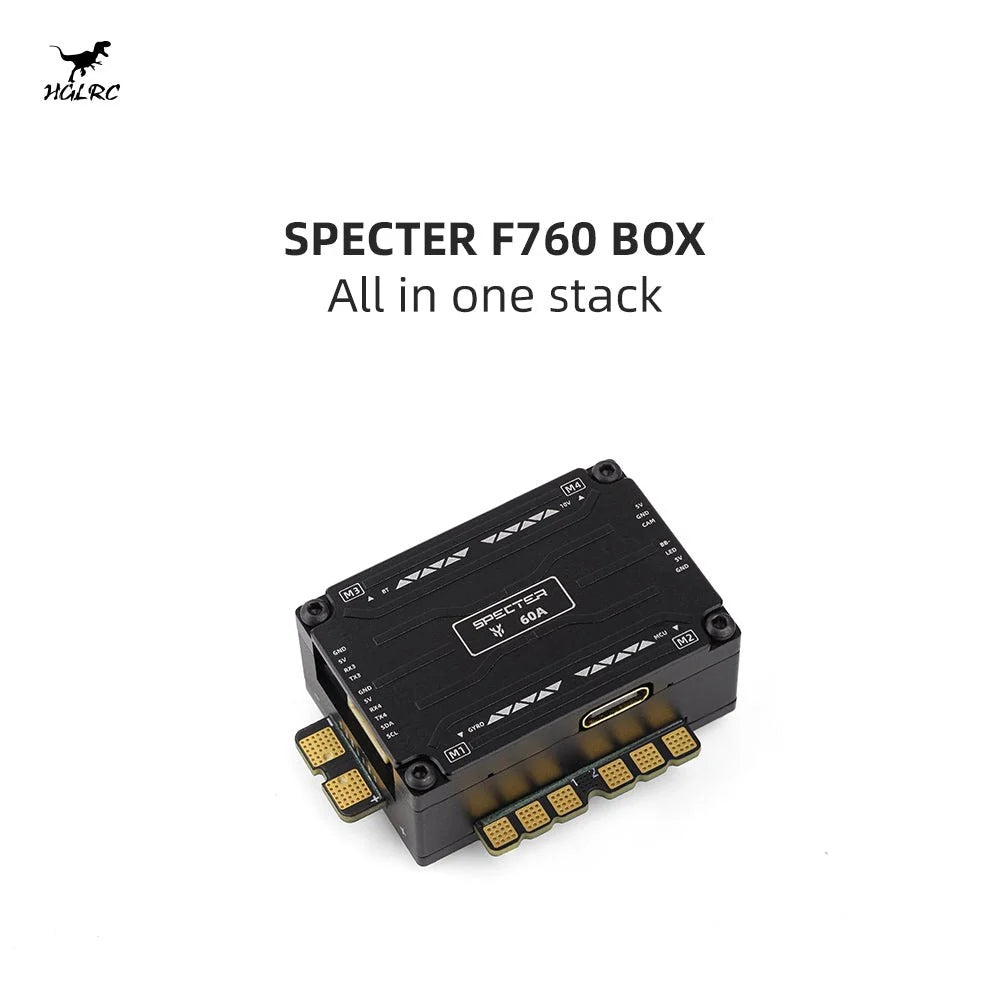

HGLRC SPECTER F760 BOX integrated stack

HGLRC SPECTER F760 BOX integrated stack

Features:
1. The main control adopts STM32F722 high-performance processor, with a computing speed of up to 216MHz, providing smoother control, better hand feel, and faster response speed.
2. The flight control gyroscope uses high-performance MPU6000 to improve the stability of use.

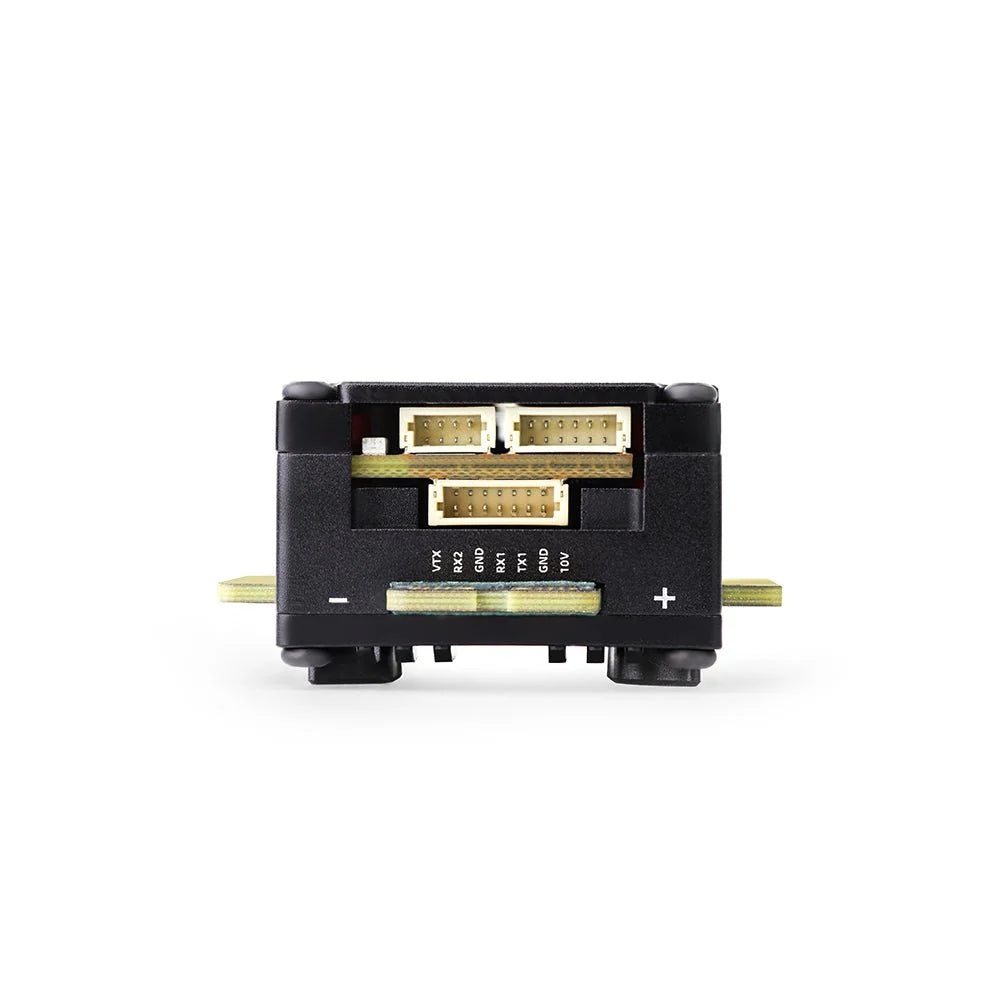

3. Full module direct plug-in connection, plug and play, no soldering pads required, achieving modularity.

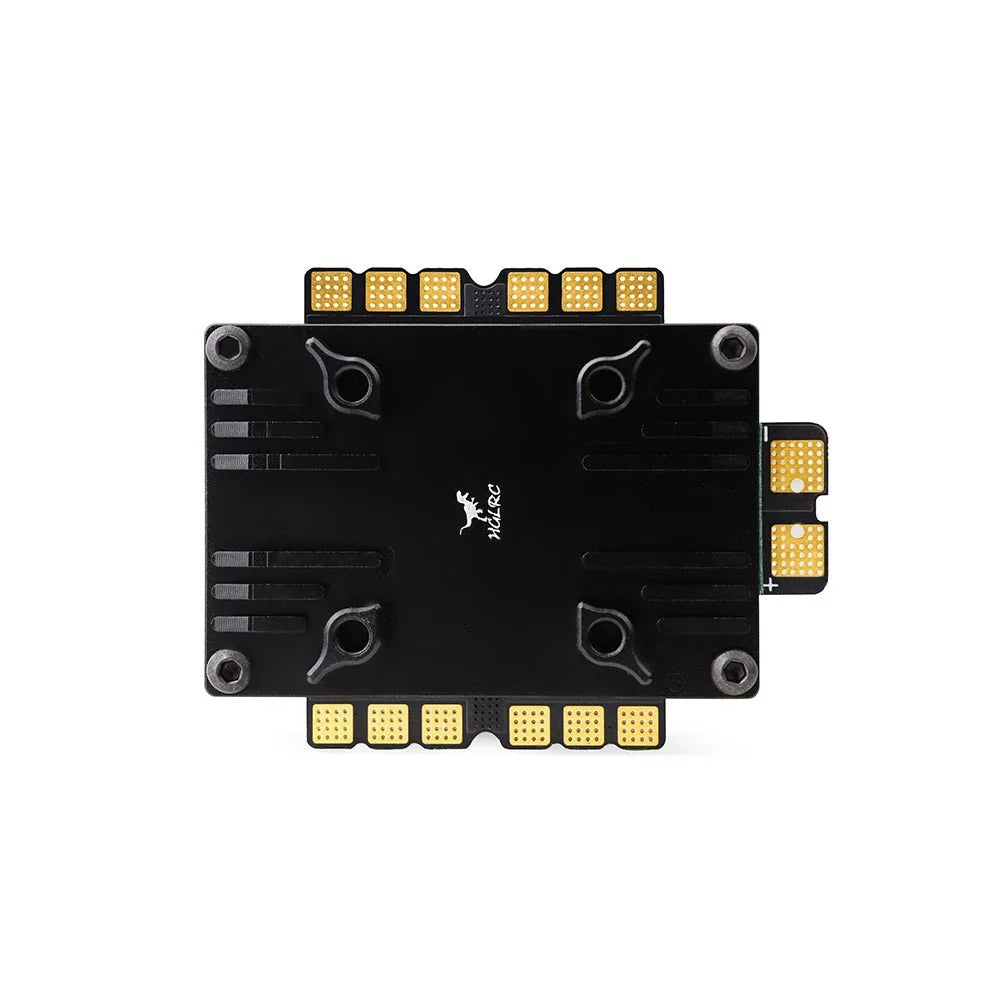

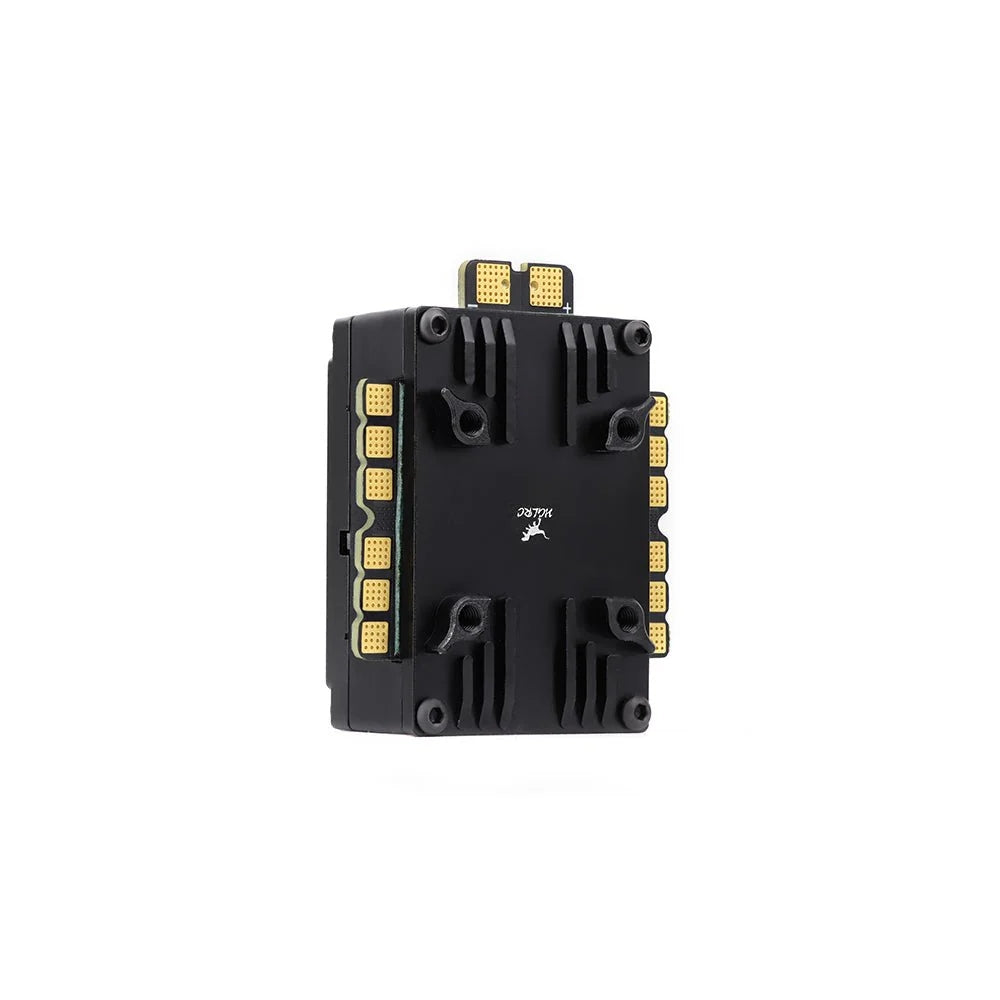

4. Personalized CNC heat sink shell to prevent debris from entering the interior of the flight control and improve usage efficiency.
5. 16MB large-capacity black box to ensure adequate recording of flight data.
6. Integrated BF wireless Bluetooth parameter adjustment, connect to SPeedyBee APP to adjust serial port, PID and other flight control parameters anytime and anywhere.
7. Equipped with a 10V electronic switch, the on/off mode can be set through BF, which is convenient for solving the problem of heat transmission during long-term power-on.
8. Built-in suspension damping system + preset filter parameters.
9. Built-in capacitor, no need to solder external capacitor.

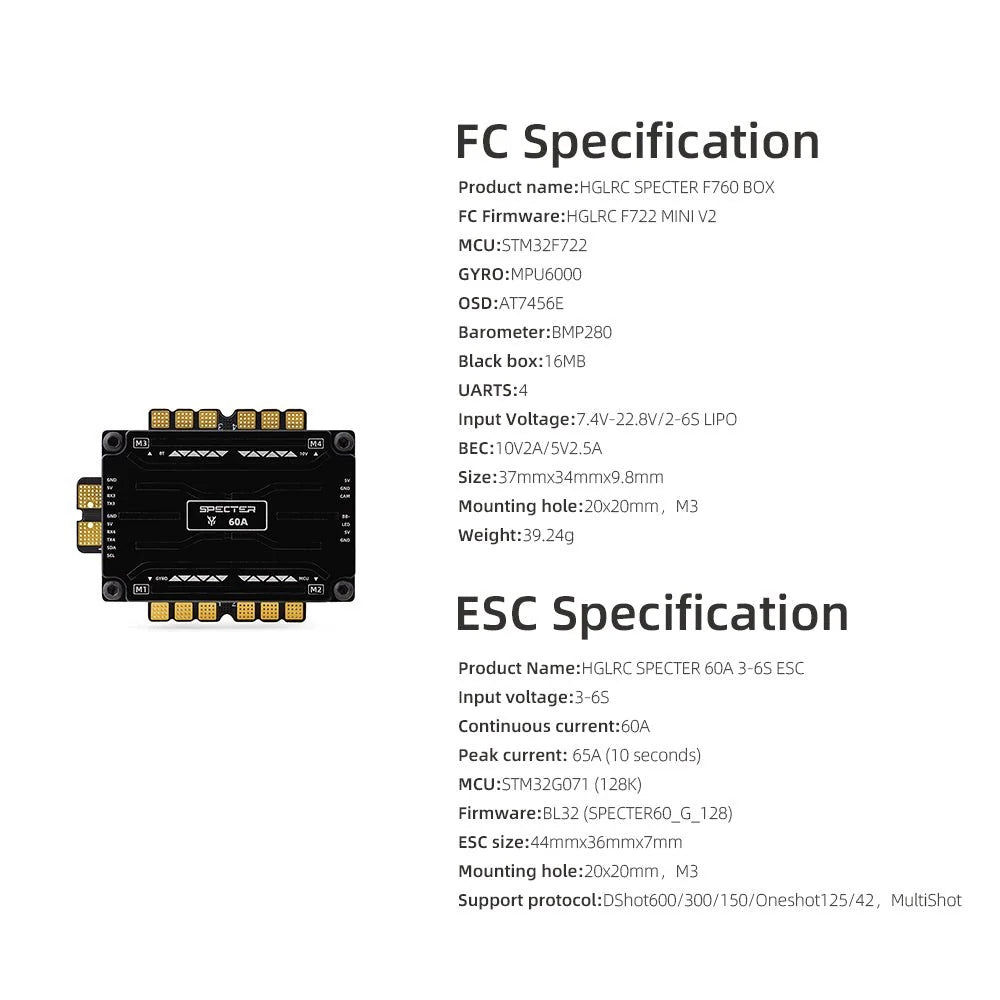

Product name: HGLRC SPECTER F760 BOX integrated stack
Flight control firmware: HGLRCF722 MINI V2
MCU: STM32F722
GYRO：MPU6000
OSD:AT7456E
Barometer: BMP280
Black box: 16MB
Bluetooth parameter adjustment: UART5
Input voltage: 7.4V-22.8V/2-6S LIPO
BEC: 10V2A/5V2A
Stack size: 44.2mmx30mmx21.15mm
Installation hole position: 20x20mm, M3

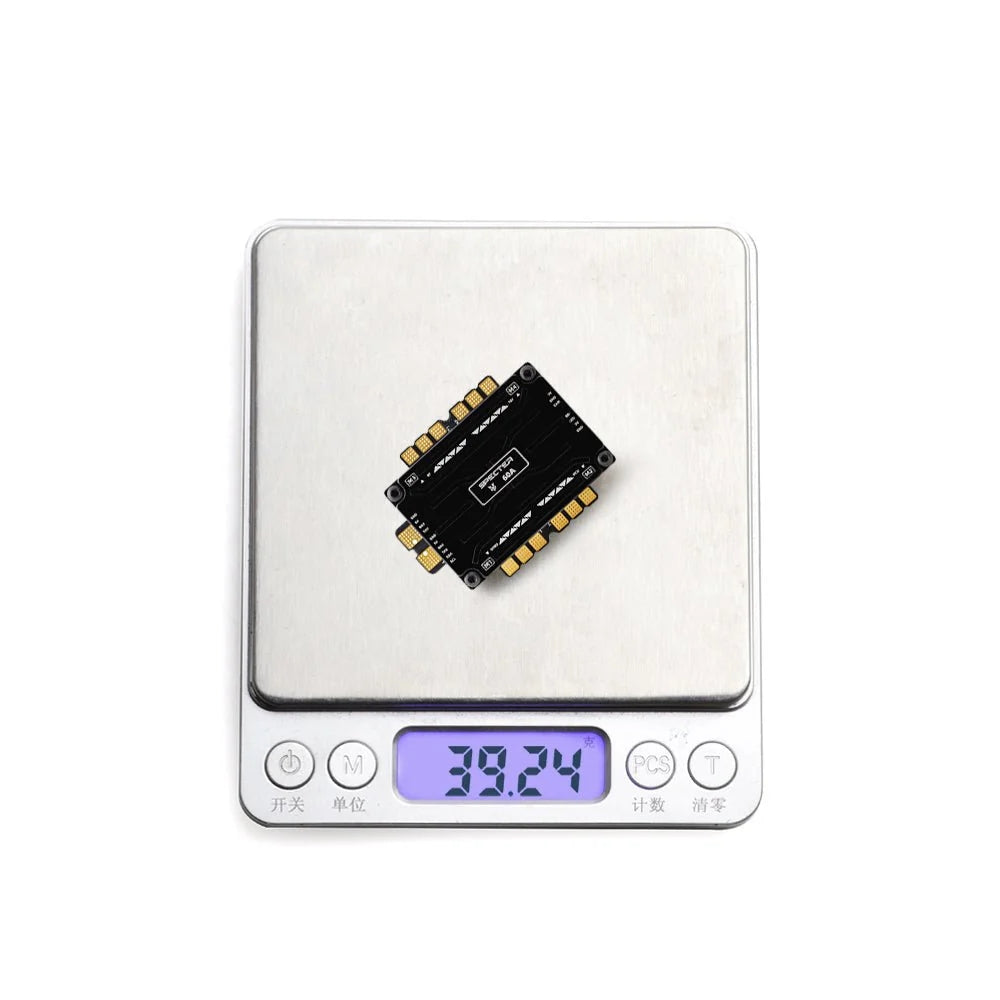

Weight: about 39g

Packaging size: 70x70x44mm
