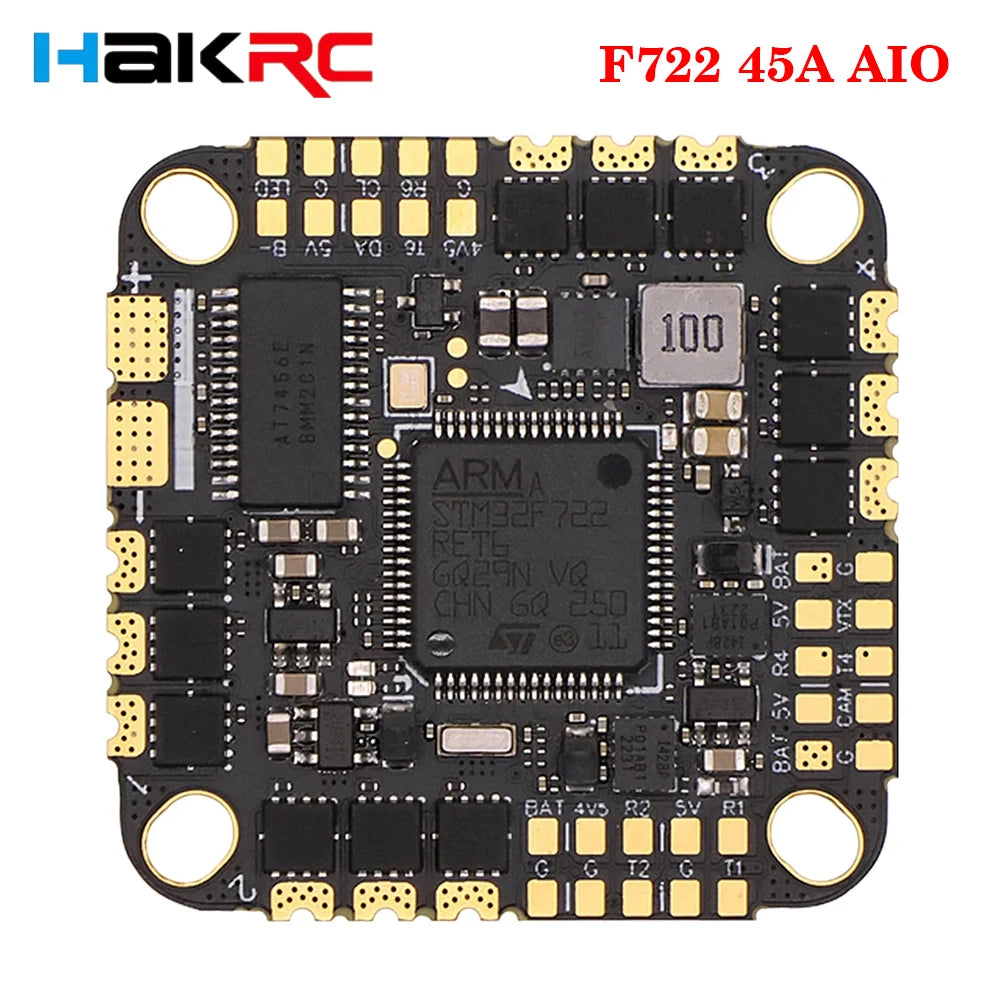

HAKRC F722 45A AIO Flight Controller ICM-42688P BLHeli_32 128K ESC

HAKRC F722 45A AIO Flight Controller ICM-42688P BLHeli_32 128K ESC 2-6S Dual Gyro 25-26.5mm for RC FPV Freestyle Racing Drone

• 1. The PCB adopts high-end 8-layer 2oZ thickened copper sheet, and adopts the production process of high-end resin plug hole PCB. The dual pad design has stronger overcurrent capacity and good heat dissipation.

• 2. MOS adopts imported 40V high current withstand MOS, with long service life and strong load capacity.

• 3. Adopting industrial grade LDO, resistant to high temperature.

• 4. Adopting high-quality Japanese Murata capacitors with strong filtering performance

• Supporting the transmission of electrical dispatch telemetry data maps

• Size: 33 * 33mm (25.5mm-26.5mm mounting hole)

• Packaging size: 64 * 64 * 35mm

• Net weight of product: 8.5g

• Packaging weight: 54g

• Brand: Hakrc
• CPU: STM32F722RET6
• IMU: Dual gyroscope (ICM-42688)
• OSD: AT7456E
• Barometer: integrated
• BEC: 5V/2A
• Proportional value of ammeter: 200
• Black box: 16M black box
• LED: Supports external programmable LED light strips
• Sensor: built-in current sensor
• Flight control firmware version: HAKRCF722D
• Receiver: CRSF/Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver

• Firmware version: HAKRC_ AT4G_ Multi_ 32.9 Hex
• Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
• Input voltage: 2S-6S Lipo
• Proportional value of ammeter: 200
• Continuous current: 45A
• Peak current: 55A

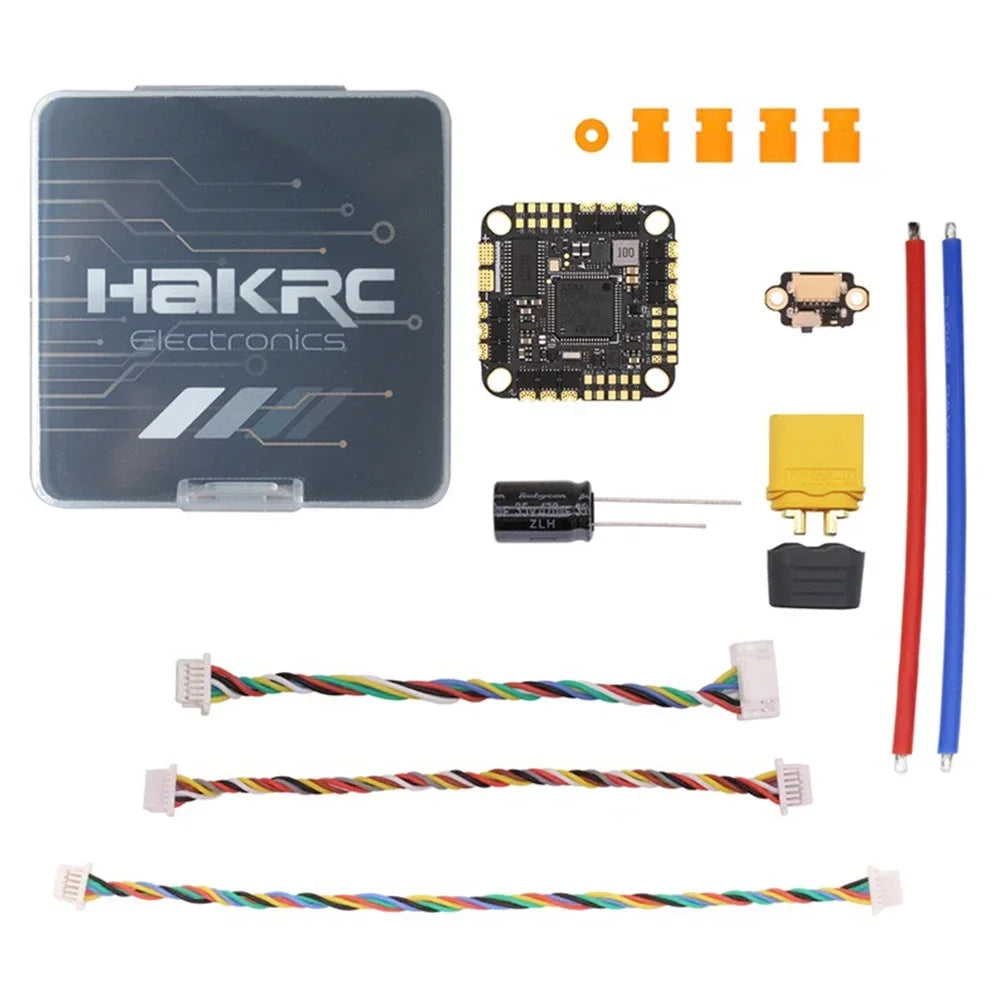

• 1x HAKRC F722 BLHeli_32 AIO
• 4x M2 orange shock absorber ball
• 1x USB panel*1
• 1x 5Pin cable*1
• 1x 35V470uf capacitor*1
• 1x XT60*1,Small bandage * 1
• 1x red and blue cable*1
• 1x DJI FPV Cable*1
• 1x DJI O3 Air Unit 3-in-1 Cable *1

• 1x Instructions
