FLYWOO GOKU GM10 Nano V3.1 GPS

Product Information

Description

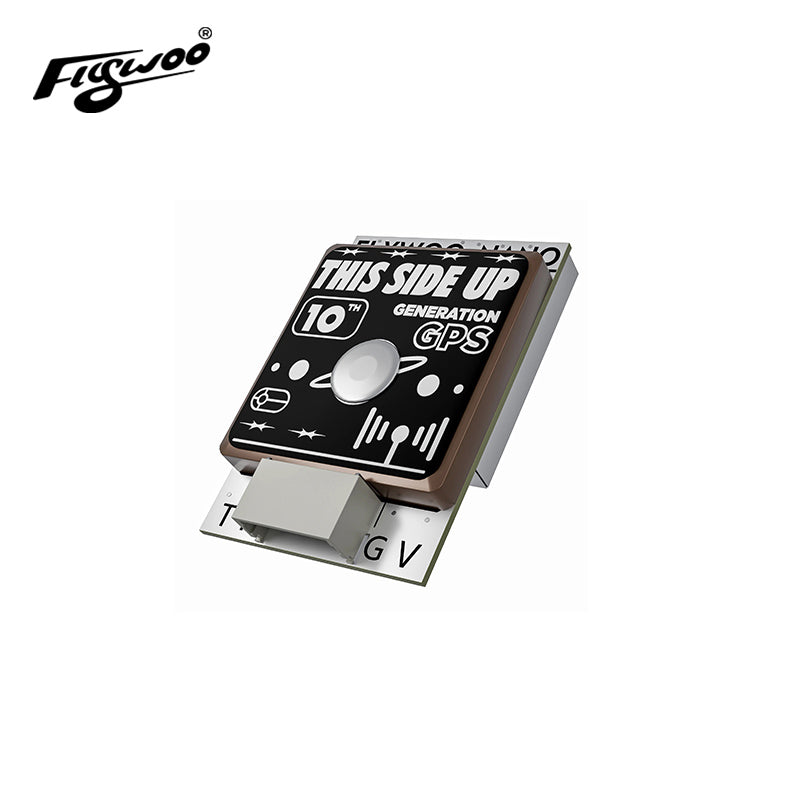

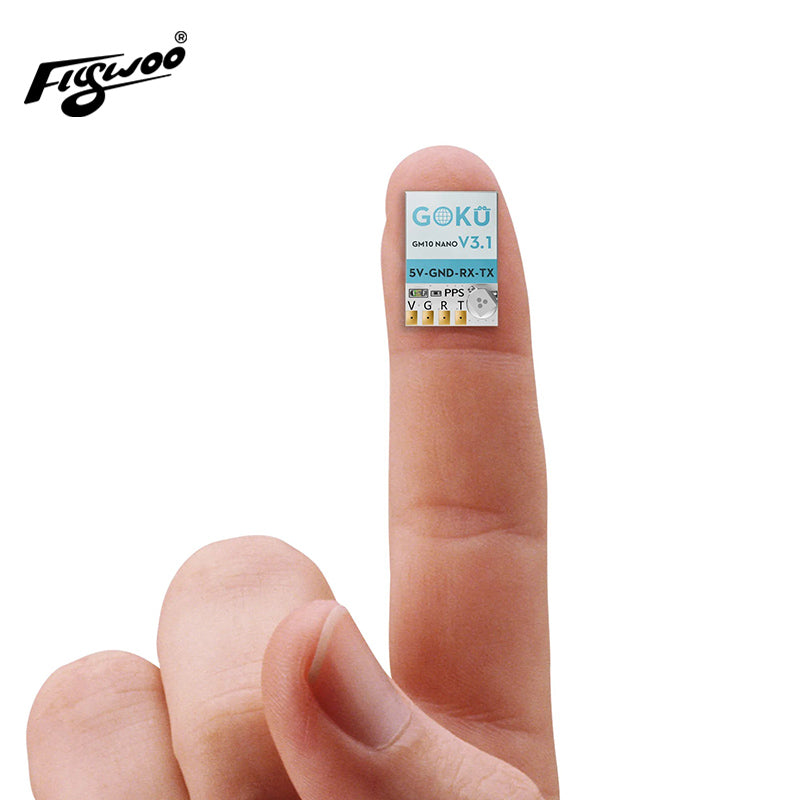

The V3.1 version of GOKU GM10 Nano GPS retains the extremely small size and adds a new plug. No soldering is required. It's plug-and-play for convenient installation. It adopts the latest M10050 chip, supports multiple satellite systems, has high sensitivity, fast data update rate, weighs only 2.5g.

Description

Brand: FLYWOO

Model: GM10 NANO V3.1 GPS

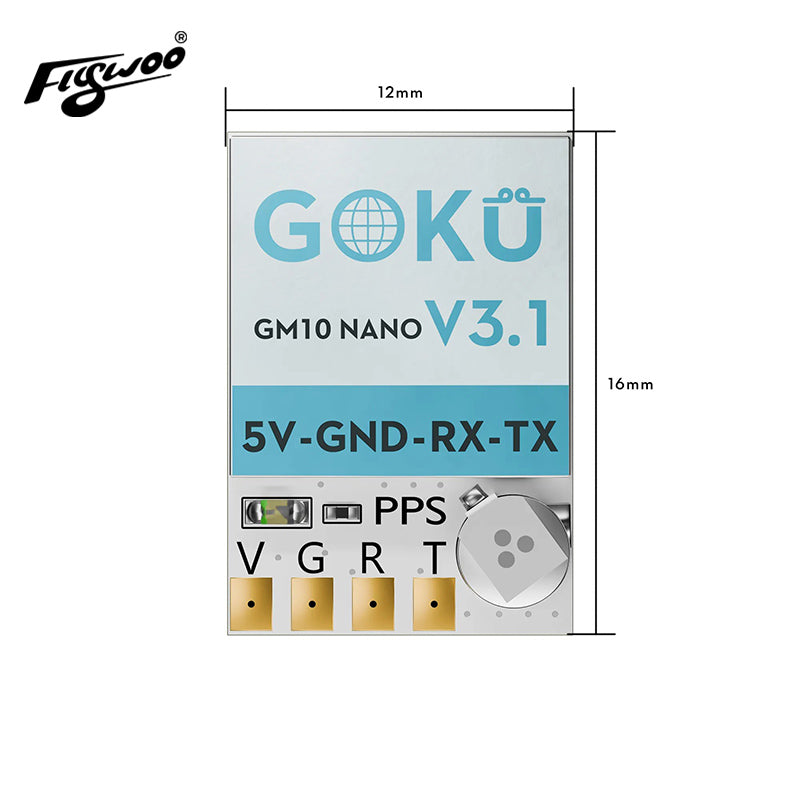

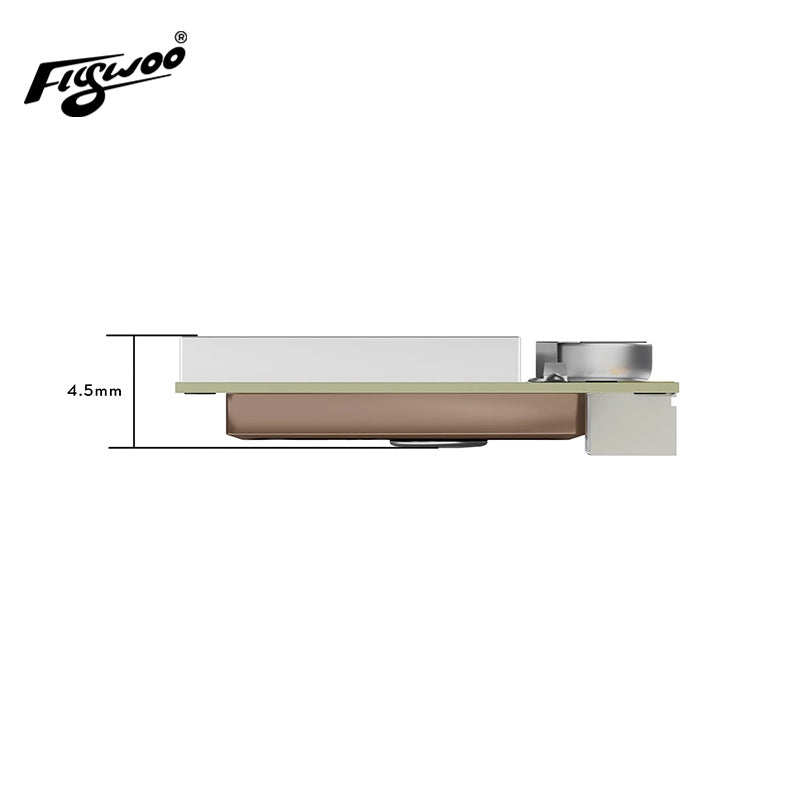

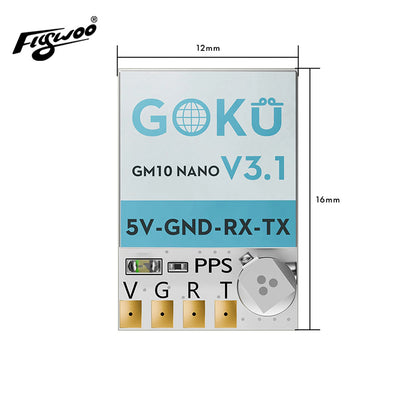

Dimension :12mm*16mm*4.5mm

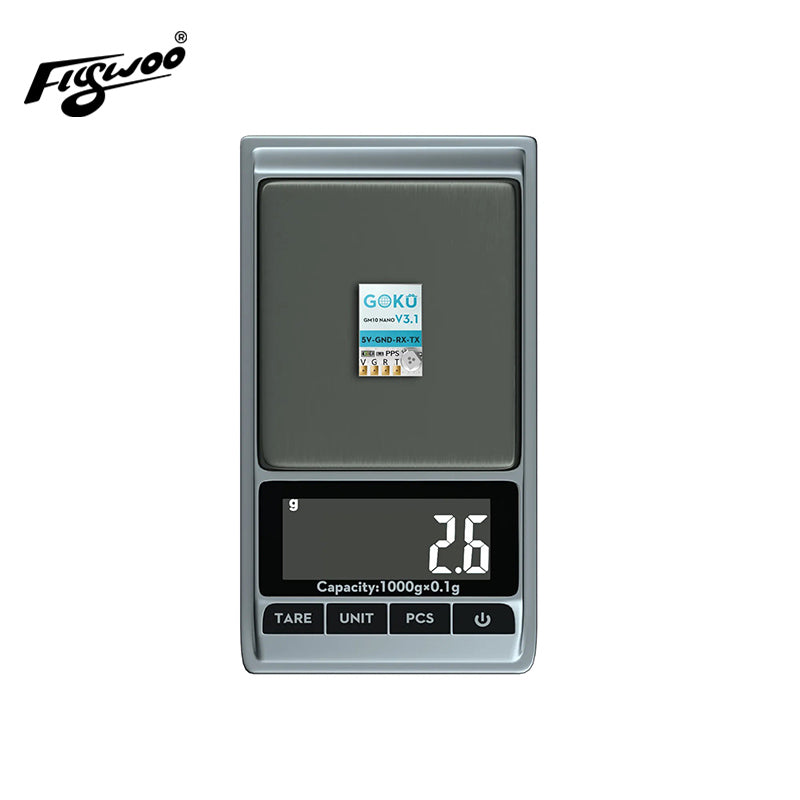

Weight : 2.5g

Connector : 4pins Pad

Features:

GPS Module,Three Module

4pins Pad，ultra light weight

Specification

Electrical Characteristics

Chipset : M10050(Tenth Generation Chip)

Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Default Protocol : GPS,Galileo,BeiDou

Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels : 72 Searching Channel

Sensitivity

Tracking : -162dBm

Reacquisition : -160dBm

Data and Update Rate

Support Rate : 4800bps to 921600bps,Default 115200bps

Data Level : TTL or RS-232,Default TTL level

Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)

Output frequency : 1Hz-10Hz，Default 10Hz

Operational Limits

Altitude : 50,000m Max

Velocity : 500m/s Max

Acceleration : Less than 4g

Power consumption

VCC : DC Voltage ：3.3-5V

Operating temp :　-40 °C ~ +85°C

Storage Temp : -40°C ~ +105°C

Indicator :

PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed

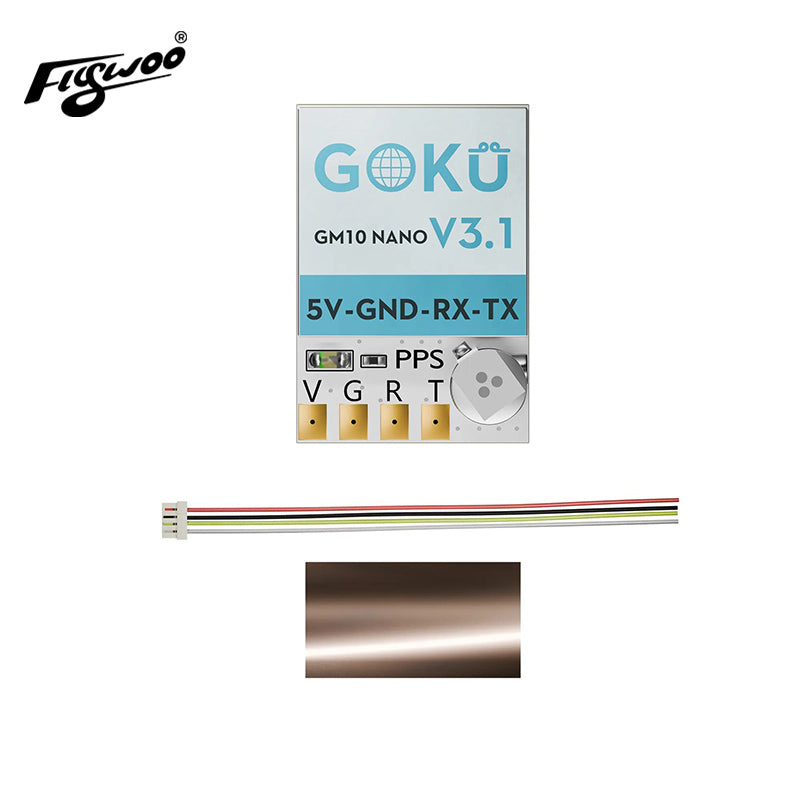

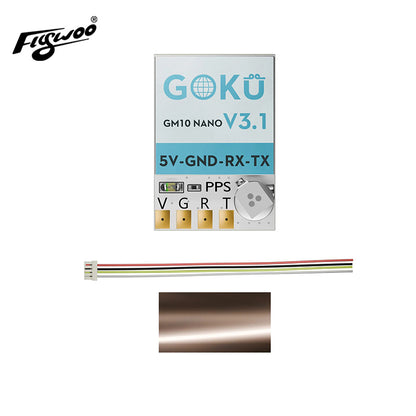

The Module’s Pins: RX TX 3.3-5V GND
