Flywoo GOKU F405 HD 1-2S 12A ELRS AIO V2

product description

With the growing popularity of digital transmission, FLYWOO introduces an innovative solution for 1-2S HD Micro Drones.

This full-featured HD AIO solution integrates a Type-C interface, equipped with a high-performance F405 BGA MCU, and offers enoug Uart to meet the meet all you need. The GOKU F405 HD V2 AIO features a built-in 9V 2A BEC module, effectively preventing power cuts in the O3 Air unit due to insufficient voltage.

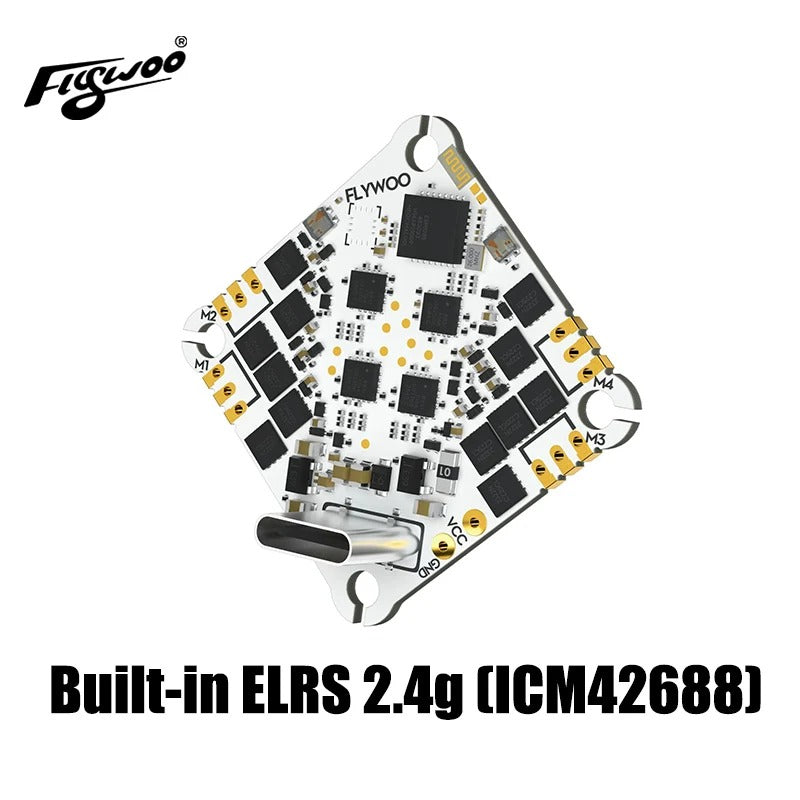

Additionally, it comes with a serial ELRS 2.4G receiver, an 8MB black box, a barometer, and a current sensor, specifically designed for HD VTX. Its socket-style motor connections and plug-and-play O3 design significantly simpliy the installation and debugging process, achieving a perfect blend of efficiency and convenience.

Highlights：

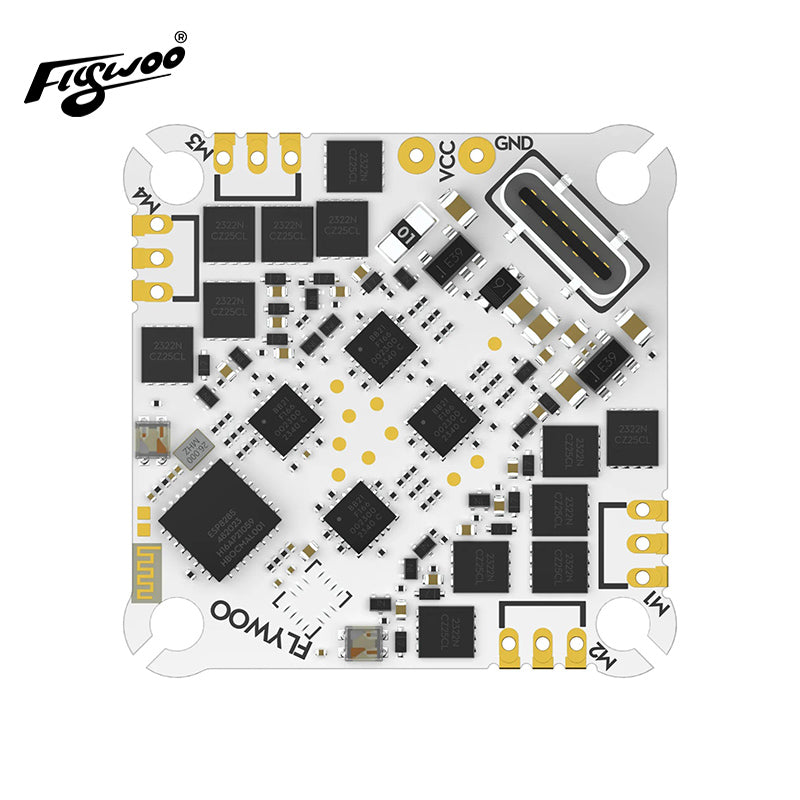

1. Type-C Design: Utilizes Type-C , more convenient and reliable connections.

2. New Power Supply : Features 9V 2A BEC , effectively preventing power outages in the O3 Air unit due to voltage dropping .

3. Plug-and-Play O3 Port: Direct plug design for O3 air unit eliminates complex soldering steps

4. Motor Socket Design: Adopts socket connections for motors to facilitate quick replacements and upgrades.

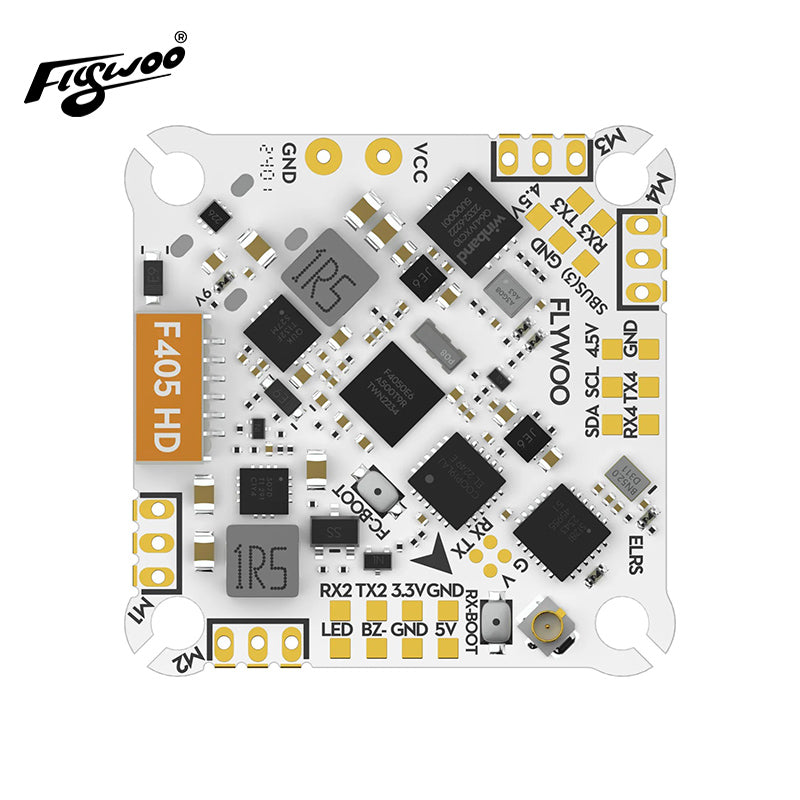

5. Multifunctional Design: Integrates a serial ELRS 2.4G receiver, 8MB black box, barometer, and current sensor, reserves 2 full UARTs and 1 standard SBUS port, supporting connections with various devices like GPS, HD VTX, and external receivers.
