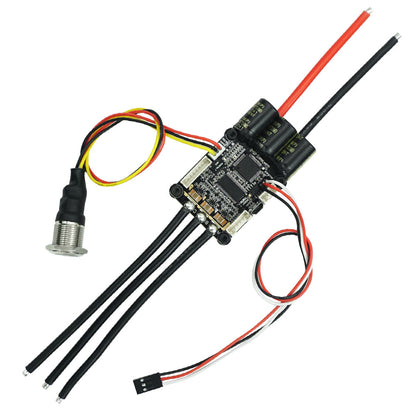

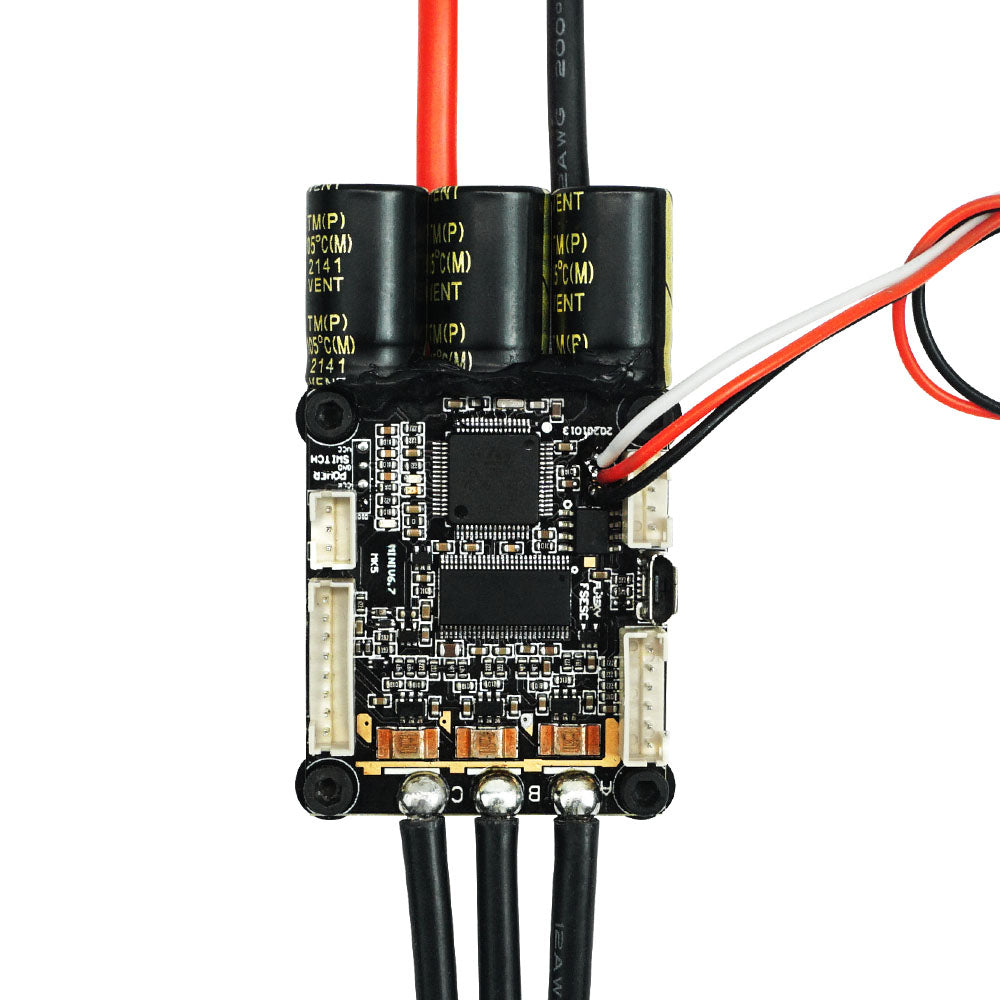

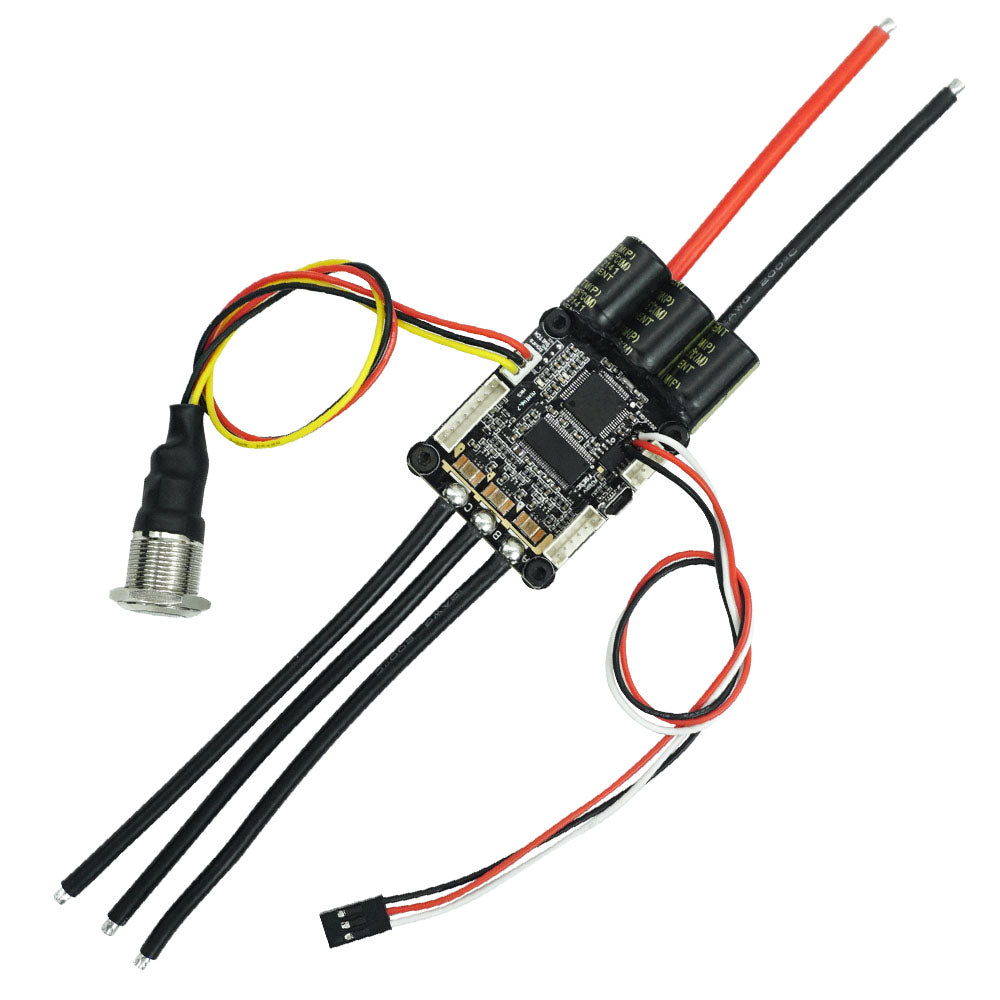

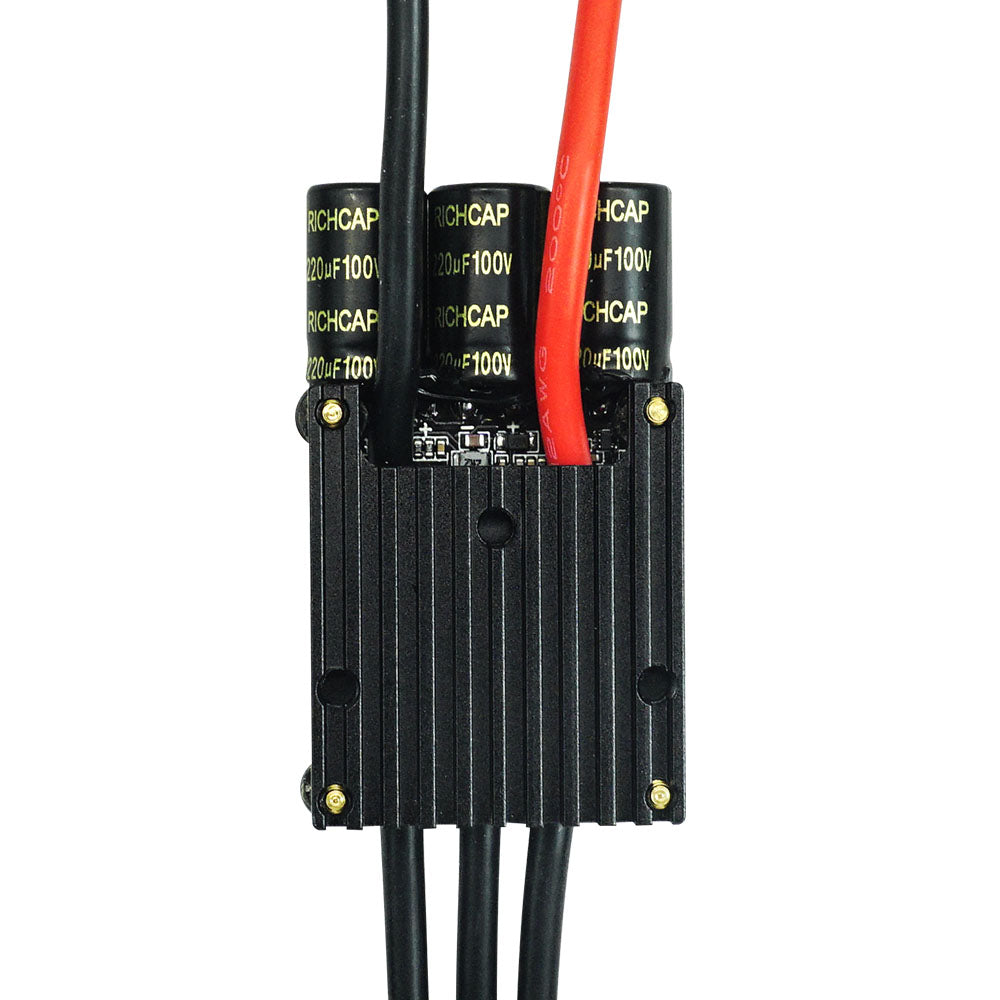

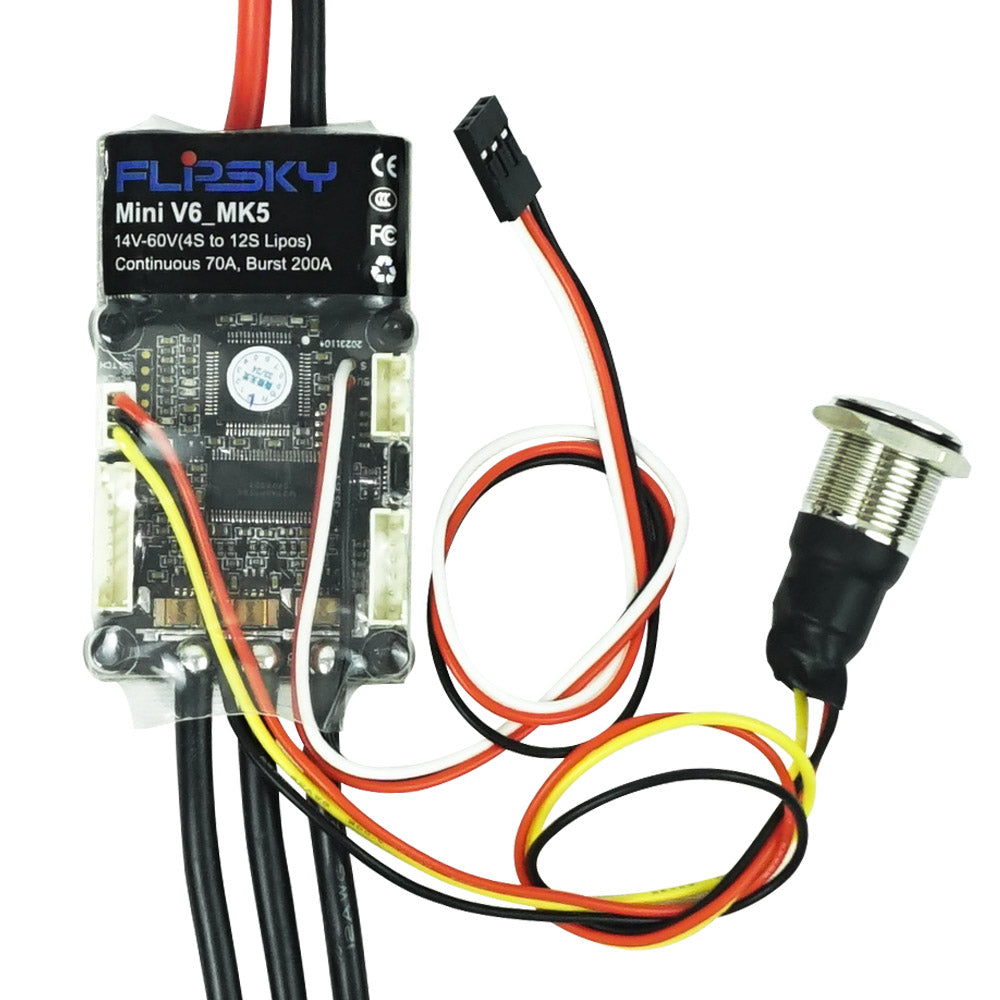

FLIPSKY Mini V6 MK5 With Power Button base on VESC_6_MK5 With Aluminum Anodized Heat Sink

Specs:

• Firmware version: 60

• Hardware version:vesc 6.4

• Continuous current: 70A; instantaneous current: 200A

• Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )

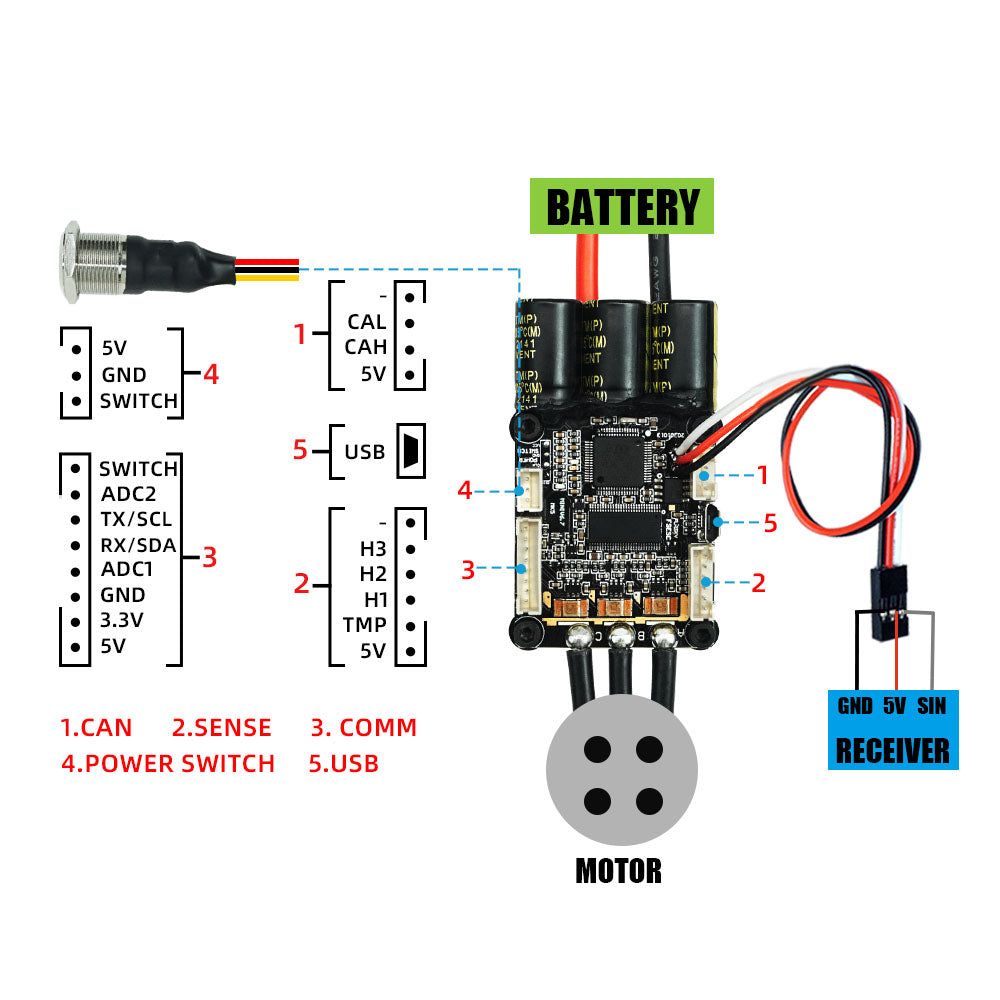

• Control Interface Ports:USB,CAN,UART, SPI, IIC

• Supported Sensors:ABI，HALL，AS5047，AS5048A

• Input Set Support:PPM, ADC, NRF, UART

• Modes:DC, BLDC, FOC (sinusoidal)

• Regenerative capacity: Yes

• BEC: 5V@1A

• ERPM: 150000

• Programmable: Yes

• Motor wire: 12AWG

• Power cable:12AWG

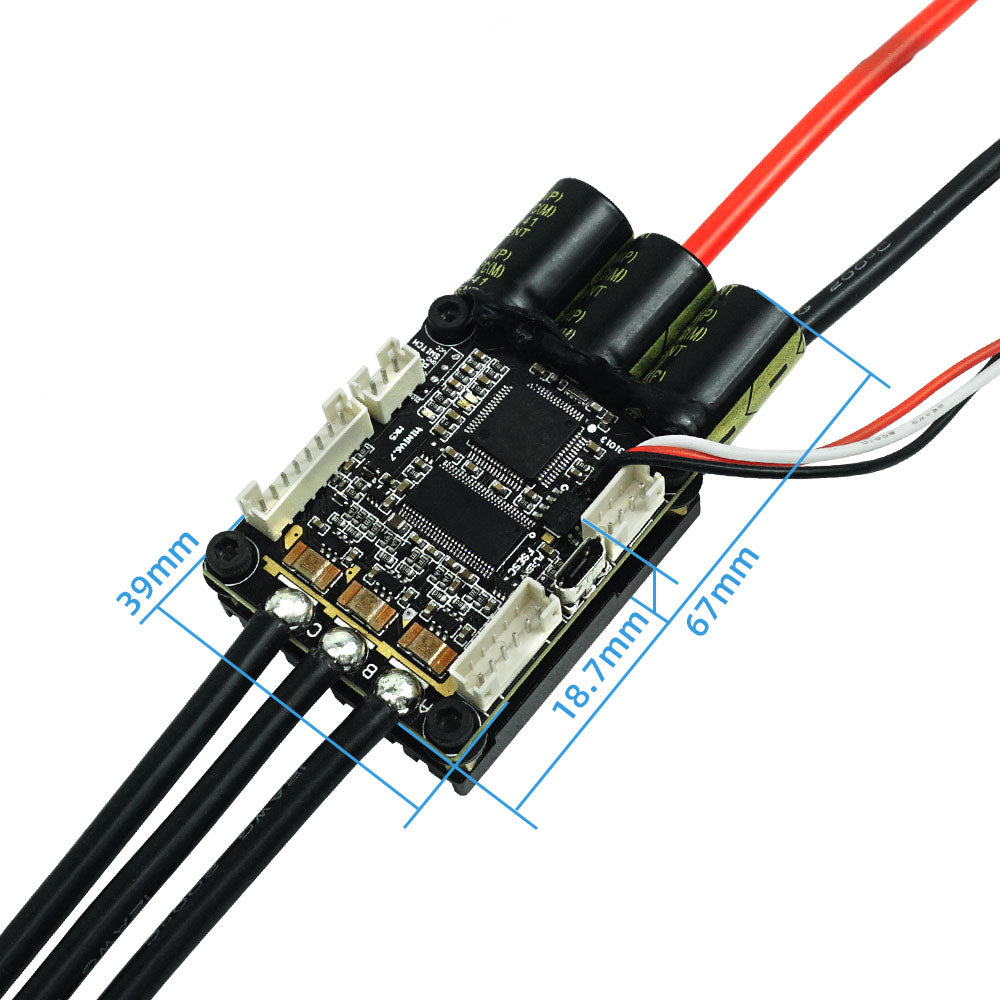

• Size:67x39x18.7mm(Including heatsink)

• Weight: 130g

Feature:

• Support four control modes: Current/Dutycycle/Speed /Position control mode.

• Supports sliding power on, automatic power off, and 4 modes of standby function.

• Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.

• Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
